Communications 4-47
Select “Data-INT” as the Communications Format. Enter the
ControlNet address of the Powermonitor 3000. Set the Connection
Parameters as shown for the default configuration. If you change the
configuration of the input assembly instance, enter its new size in
Instance 1 here. Select 3 as the Configuration instance and leave its
Size set to 0 bytes. Click the Next> button.

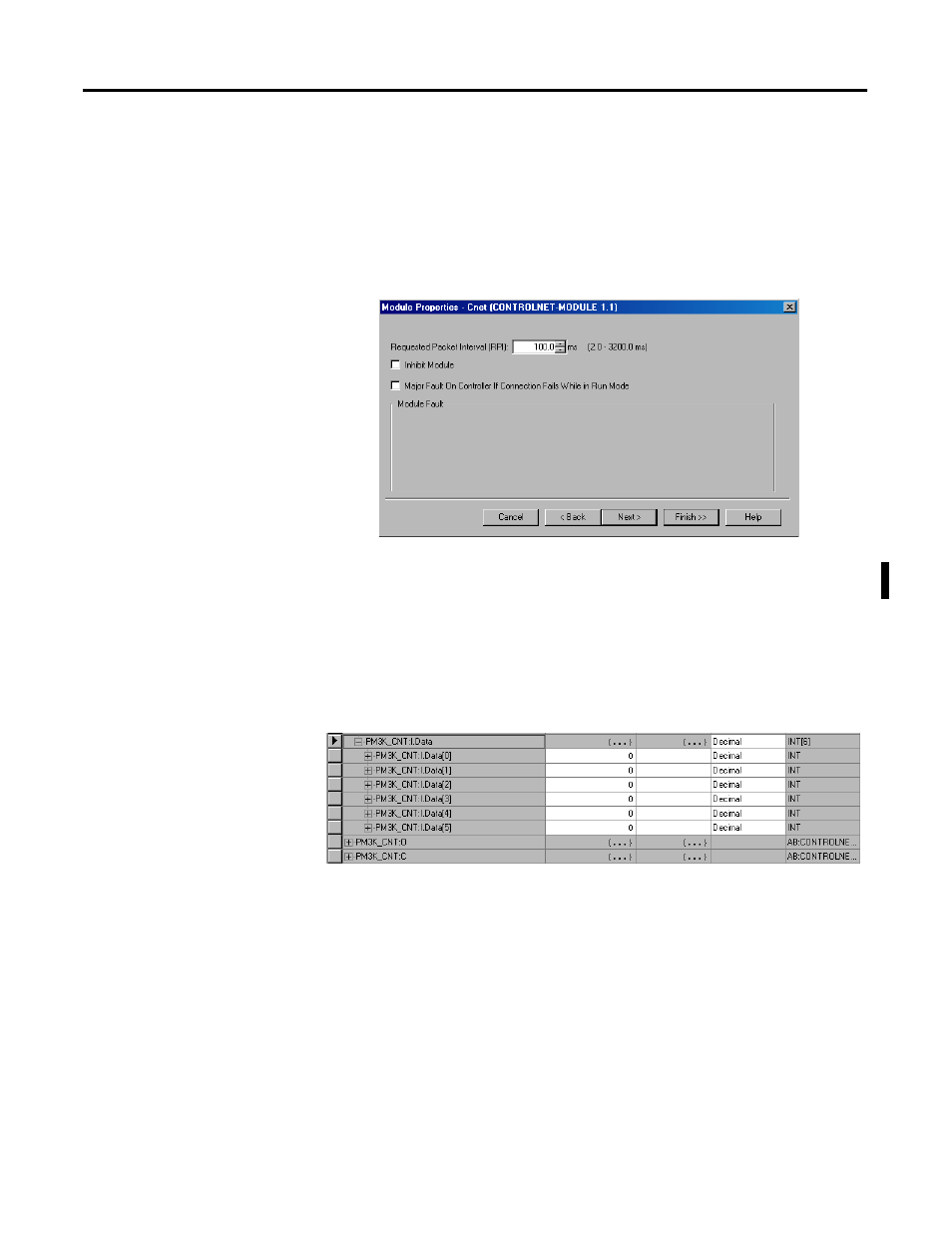

Figure 4.16 Requested Packet
Set the Requested Packet Interval to a binary multiple of the network
update time (NUT) greater than 100 mS. The Powermonitor 3000
update rate is typically 100 mS.
The Powermonitor 3000 data will be found in controller tags as shown
in Figure 4.17.
Figure 4.17 Controller Tags
Download the revised program to the controller. Run RSNetworx for
ControlNet to schedule the connection between the controller and the
Powermonitor 3000. Refer to the RSNetworx for ControlNet
documentation for assistance.
The ControlNet Powermonitor 3000 supports up to 64 concurrent
Class 1 connections to instance 1 and one concurrent connection to
instance 2.
