4-46 Communications
For More Information
For related documentation on Ethernet and EtherNet/IP
communications, please see the following internet websites:
• http://www.ab.com/networks/whatnew.html#ethernet
• http://www.ietf.cnri.reston.va.us/
• http://www.standards.ieee.org/catalog/olis/lanman.html
• http://www.controlnet.org
For additional information on the TCP/IP protocol, networking in
general, and EtherNet/IP please see these publications:
• Comer, Douglas E., Internetworking with TCP/IP, Volume 1:
Protocols and Architecture, Prentice-Hall, Englewood Cliffs, NJ,
1990. ISBN 0-13-468505-9
• Tenenbaum, Andrew S., Computer Networks, 2 nd
Edition,
Prentice-Hall, Englewood Cliffs, NJ, 1989. ISBN 0-13-162959-X
• ControlNet Specifications, ControlNet International, Ltd.,
Clearwater, FL, 2001.
ControlNet Communications Option
Powermonitor 3000 ControlNet units support a Class 1 connection to
Instance 1 and 2. To utilize this scheduled connection to a
ControlLogix controller, open the controller program offline in
RSLogix 5000. Select the ControlNet bridge module (1756-CNB or
1756-CNBR) in the I/O configuration. Add the Powermonitor 3000 as
a Generic ControlNet module. Figure 4.15 shows a typical
configuration.

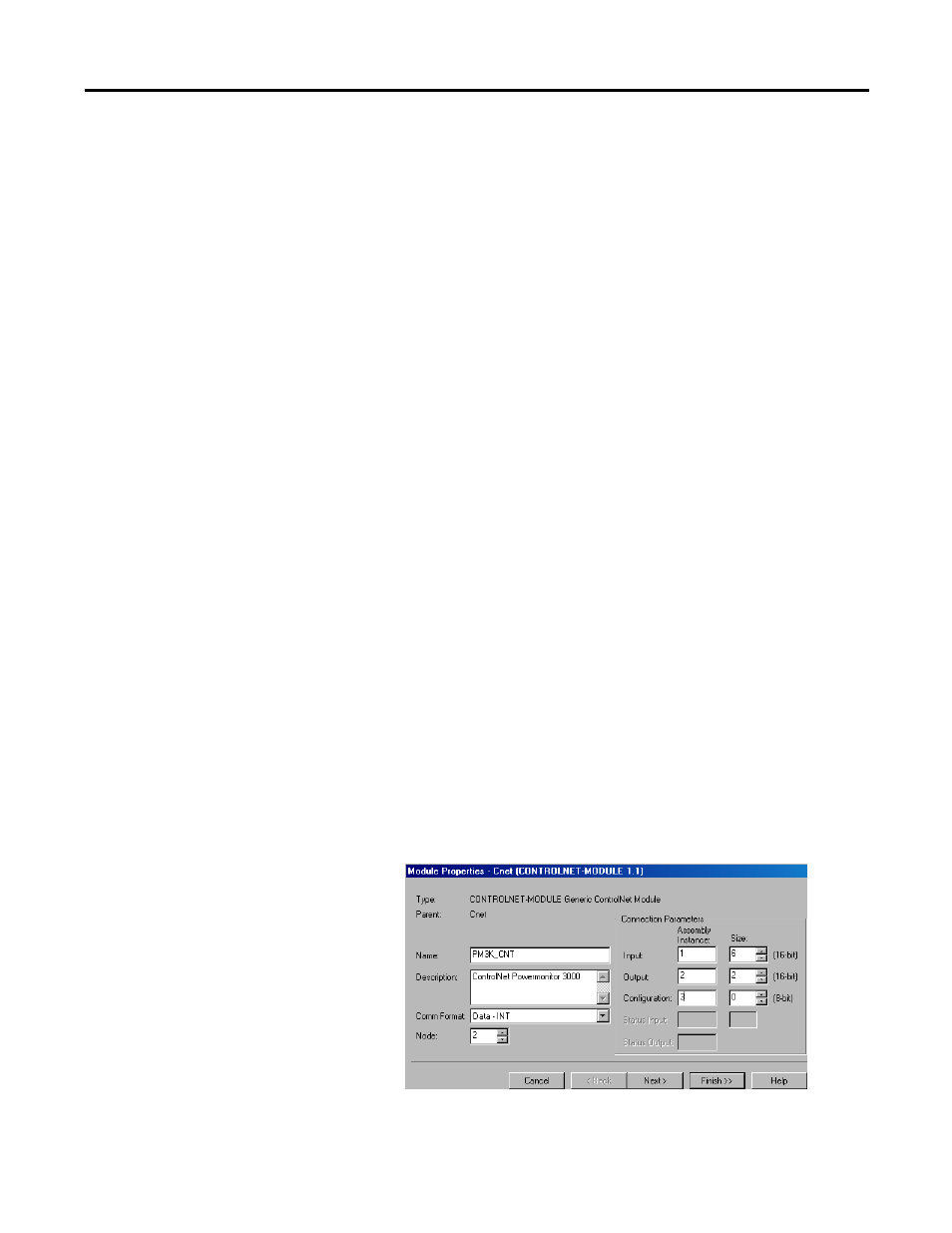

Figure 4.15 ControlNet Configuration
