54 Rockwell Automation Publication 290E-UM001B-EN-P - June 2012
Chapter 2 Installation and Wiring

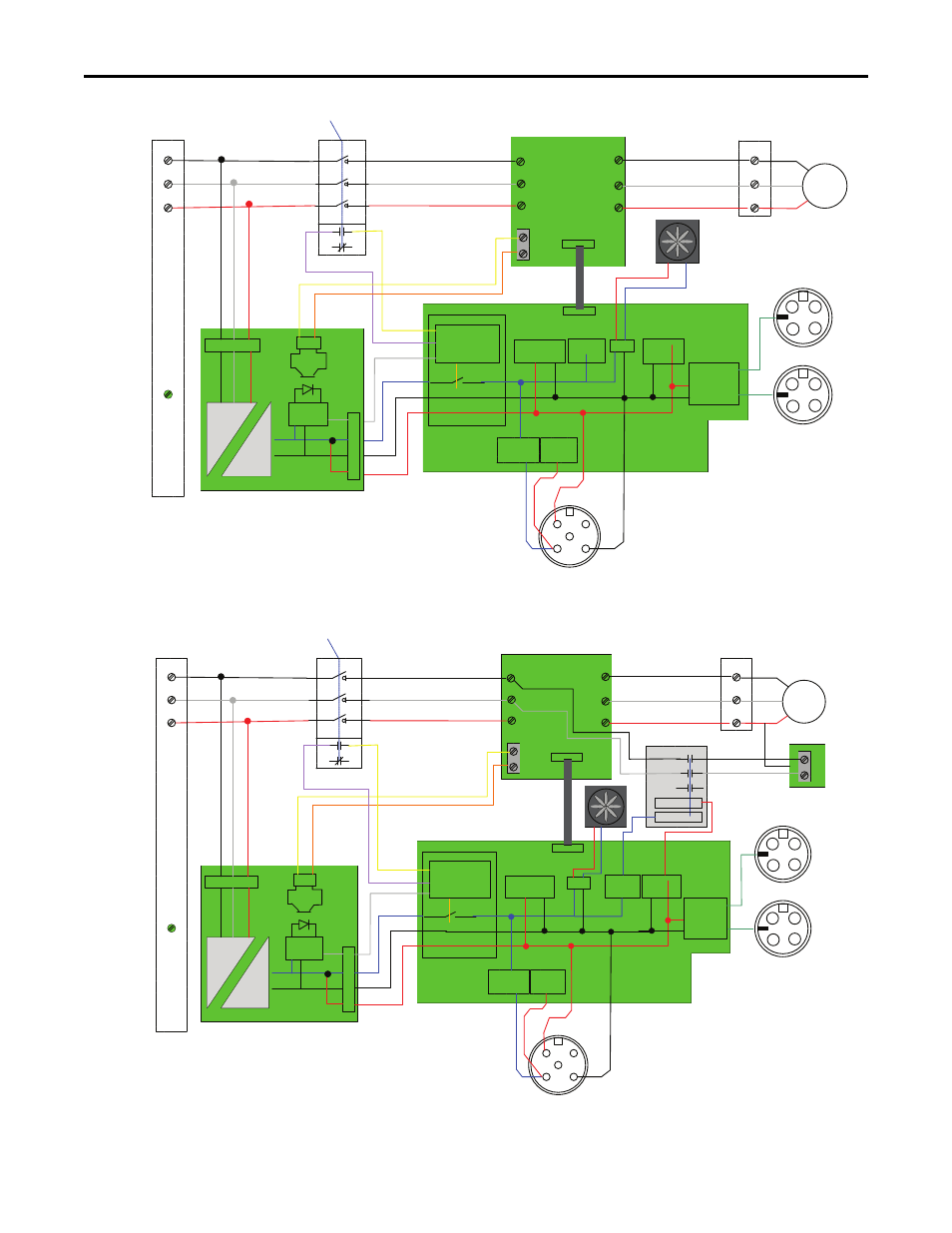

Figure 32 - Bulletin 294E VFD with -IPS, -SB
L1
L2
L3
T1
T2
T3
Disconnect
State,
Voltage
Monitoring
and Power Loss
External
Inputs
External
Outputs
Internal
Outputs
Internal
Inputs
Micro
PE
At Motor
Disconnect
Disconnect Status
1
4
2
5
3
Sinking
Input or
Sourcing
output
6-User Configurable I/O Points
EtherNet/IP
Logic
Motor
L1
L2
L3
T1
T2
T3
J3
TB2
1
11
Fan
Drive
Enable
Common
Sensor Voltage
Power
Loss
1
2
3
4
Power
Loss
1
2
3
4
L1
L2
L3
T1
T2
T3
Disconnect
State,
Voltage
Monitoring
and Power Loss
External
Inputs
External
Outputs
Internal
Outputs
Internal
Inputs Micro
PE
At Motor
Disconnect
Disconnect Status
1
4
2
5
3
Sinking
Input or
Sourcing
output
EtherNet/IP
Logic
Motor
L1
L2
L3
T1
T2
T3
J3
TB2
1
11
Fan
Drive
Enable
Common
Sensor Voltage
Brake
Brake Status
Brake
Control
B1
B2
#16 AWG Minimum
40A BCPD max
