Appendix C Using DeviceLogix™
ArmorStart LT Bulletin 294E Example Configuration
Hardware & Software Versions Used in this example
• RSLogix 5000 Revision 19
• Download AOP from the Support website:
• http://support.rockwellautomation.com/controlflash/LogixProfiler.asp
• Hardware:
– 294E-FD2P5Z-G1 — ArmorStart LT
– 1606-XLP72E — Power Supply
– 1783-EMS08TA — Stratix Ethernet switch
– 1756-L63 system set — Control Logix
– 1756-EN2TR — EtherNet/IP module for Control Logix
• The IP address of the Hardware will be preset to as followed:
• The Armorstart LT control power wiring example used

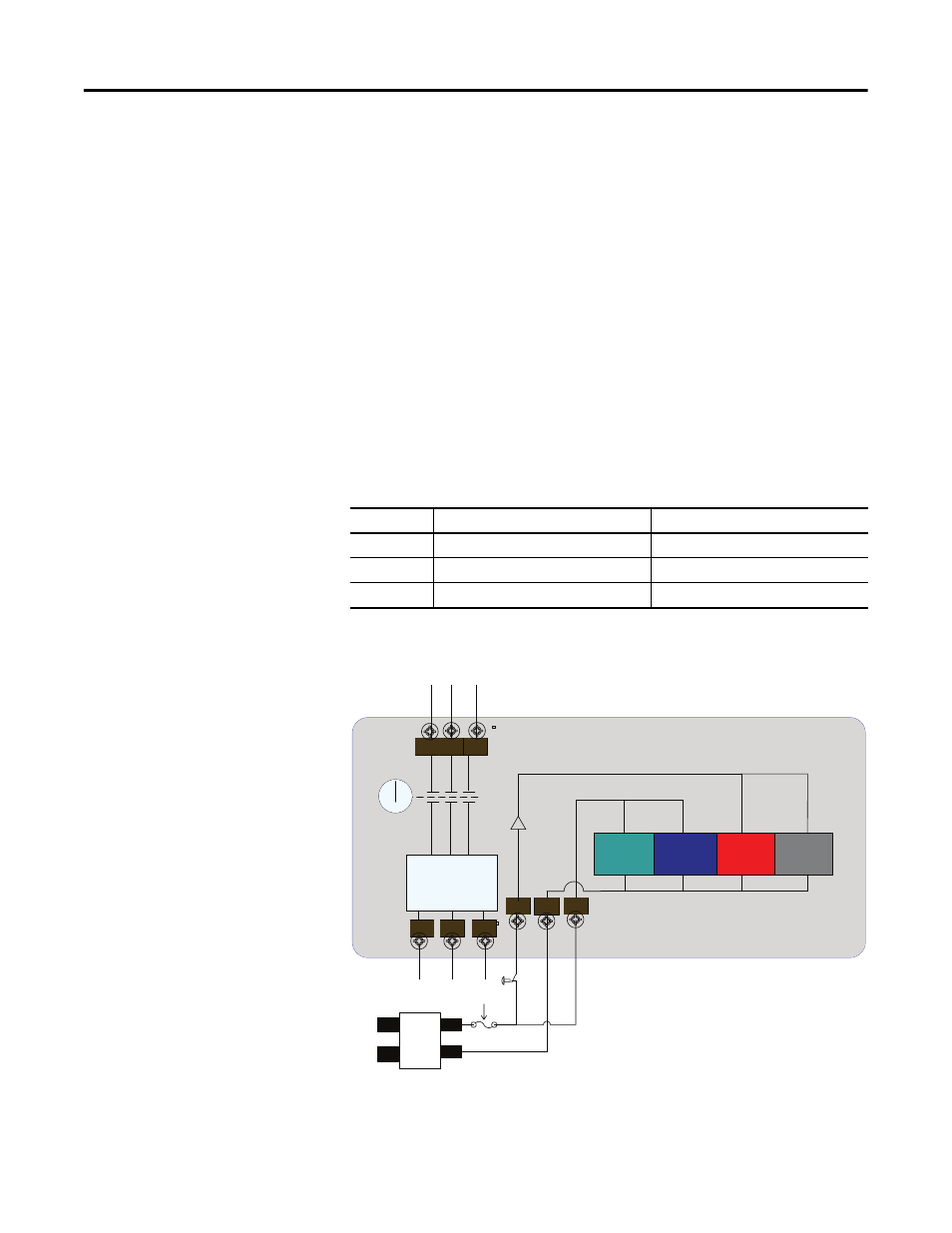

Figure 1: Control Power Wiring Example
Item Description IP Address
1 ArmorStart LT 192.168.1.36
2 1756-EN2TR 192.168.1.32
3 PC 192.168.1.89
Outputs Inputs
EtherNet
Comms
A3 A1 A2
Off
Switched Control Power
Unswitched Control Power
Motor
Control
Motor
Controller
Class 2
External
24VDC Power
Supply
Disconnect
24VDC
+
-
L1 L2 L3
T1 T2 T3
* Control power output is determined by disconnect status
*
ArmorStart LT
L
N
Single External Power Supply
