Appendix C Using DeviceLogix™
9.

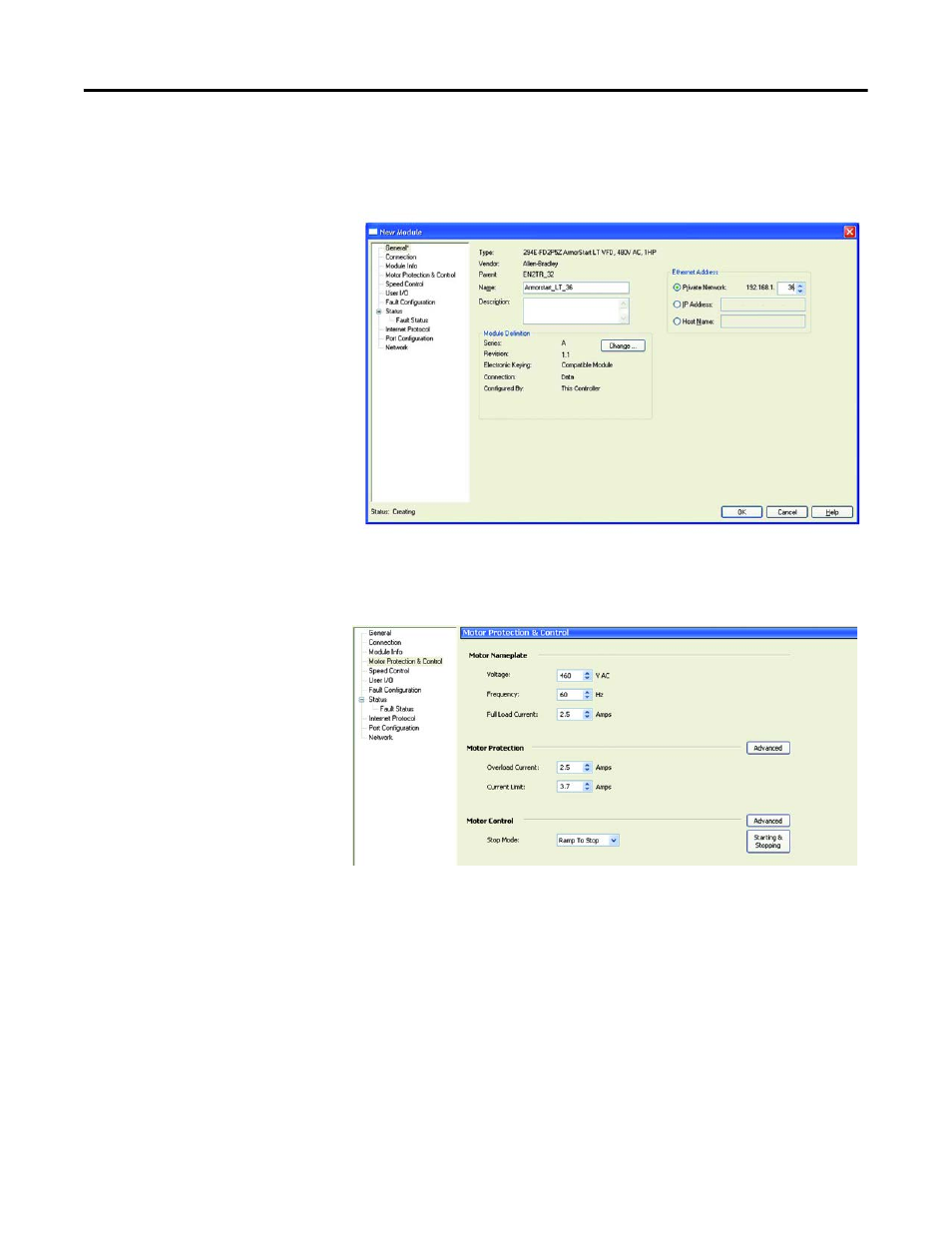

In the New Module window, enter the Name of the Armorstart LT and the
IP address assigned to it. You can now start to configure the ArmorStart
LT. Begin with “Motor Protection & Control”
10.
At the Motor Protection & Control, enter the motor information.
Note:
Please refer to the motor nameplate for the information.
