Rockwell Automation 294E ArmorStart LT EtherNet/IP Version - User Manual User Manual
Page 243
Rockwell Automation Publication 290E-UM001B-EN-P - June 2012
243
Using DeviceLogix™ Appendix C
3.

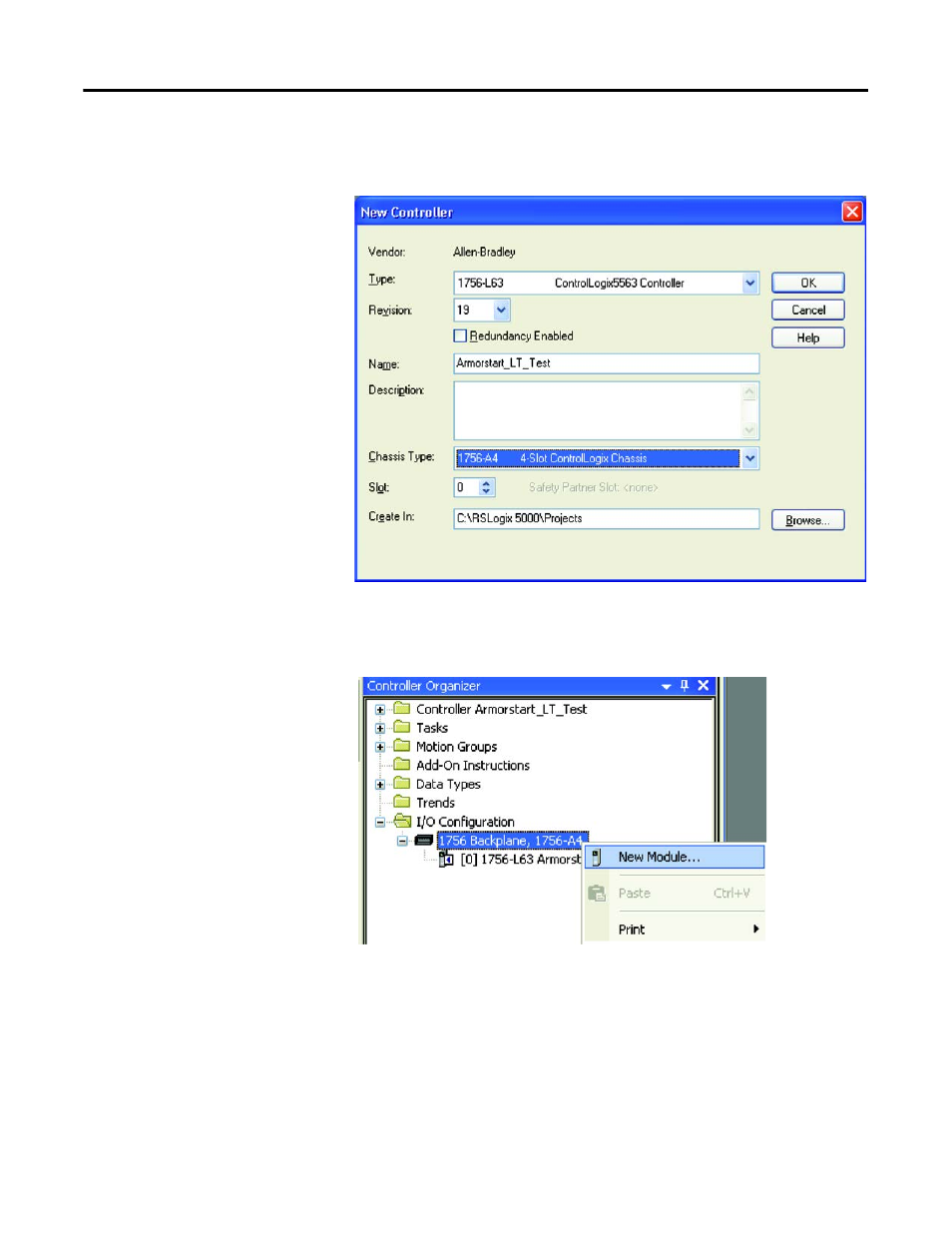

In the controller dialog box, enter the appropriate information of the
controller. Then click ‘OK’ to proceed
4.
In the Controller Organizer window find “I/O Configuration” and right
click on the 1756 Backplane and select New module
