Chapter 1 Product Overview

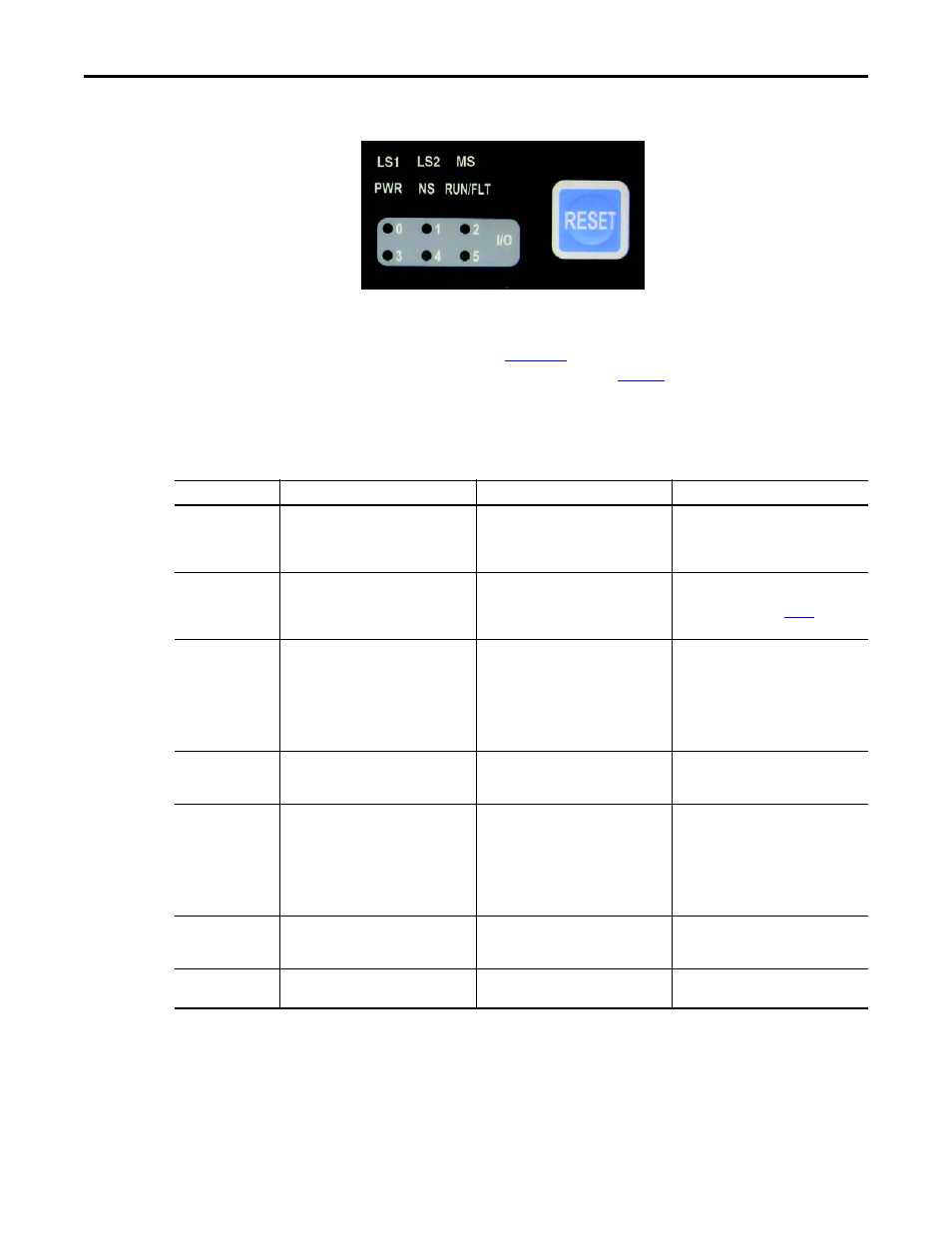

Status LEDs and Reset Figure 12 - Status, Diagnostic LEDs, and Reset
ArmorStart LT provides comprehensive status and diagnostics via 12 individually
marked LEDs shown in
Figure 12 , located on the ECM module. In addition, a
local reset is provide for clearing of faults. Table 5 details the diagnostic and
status LEDs.
Table 5 - ArmorStart LT Status and Diagnostics Indicators
Indicator Description Color_1 Color_2
PWR LED The bicolor (green/yellow) LED shows the
state of the control voltage. When LED is
off, switched and/or unswitched power is
not present. Solid green is illuminated when switched
and unswitched control power is within its
specified limits and has the proper polarity. Solid yellow is illuminated when switched
or unswitched control power is outside its
specified limits or has incorrect polarity.
RUN/FLT LED The bicolor (green/red) LED combines the
functions of the Run and Fault LEDs. Solid green is illuminated when a Run
command is present. The LED will blink red in a prescribed fault
pattern when a protection fault (trip)
condition is present. See
Table 6 for fault
blink patterns.
NS – Network Status
LED The bicolor (green/red) LED indicates the
status of the CIP network connection. See
Network Status Indicator for further
information.
Flashing bicolor (red/green) indicates a
self-test on power up. Flashing green indicates an IP address is
configured, no CIP connections are
established, and an Exclusive Owner
connection has not timed out.
Steady green indicates at least one CIP
connection is established and an Exclusive
Owner connection has not timed out. Flashing red indicates the connection has
timed out. Steady Red indicates a duplicate
IP Address detected.
LS1 and LS2 – Link
Status LEDs The bicolor (green/yellow) LED shows the
activity/link status of each EtherNet/IP
port. Solid green is illuminated when a link has
been established at 100 Mbps. Solid yellow is illuminated when a link has
been established at 10 Mbps.
MS – Module Status
LED The bicolor (green/red) LED indicates the
status of the module.
Flashing bicolor (red/green) indicates a
self-test on power up. Flashing green indicates the device has not
been configured.
Steady green indicates the device is
configured and operational. Flashing red indicates a resettable
protection fault exists or the node address
switches have been changed without a
power cycle and do not match the in-use
configuration.
Steady red indicates a non-resettable
protection fault exists.
I/O Status
Enunciators 0…5
LEDs Six yellow LEDs are numbered 0…5 and
indicate the status of the input/output
connectors. One LED for each I/O point. Yellow is illuminated when input is valid or
output is on. Off when input is not valid or the output is
not turned on.
Reset Button The blue reset button will cause a
protection fault reset to occur. — —
