Lenze · SM301 safety module · Parameter setting & configuration · DMS 2.3 EN · 11/2013 · TD05
21
2 Introduction
2.5 Parameter setting & configuration
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Tip!
For decoding/coding the control signal, the function blocks L_DevSMControlDecoder and
L_DevSMControlEncoder are available in the function library from V2.0.

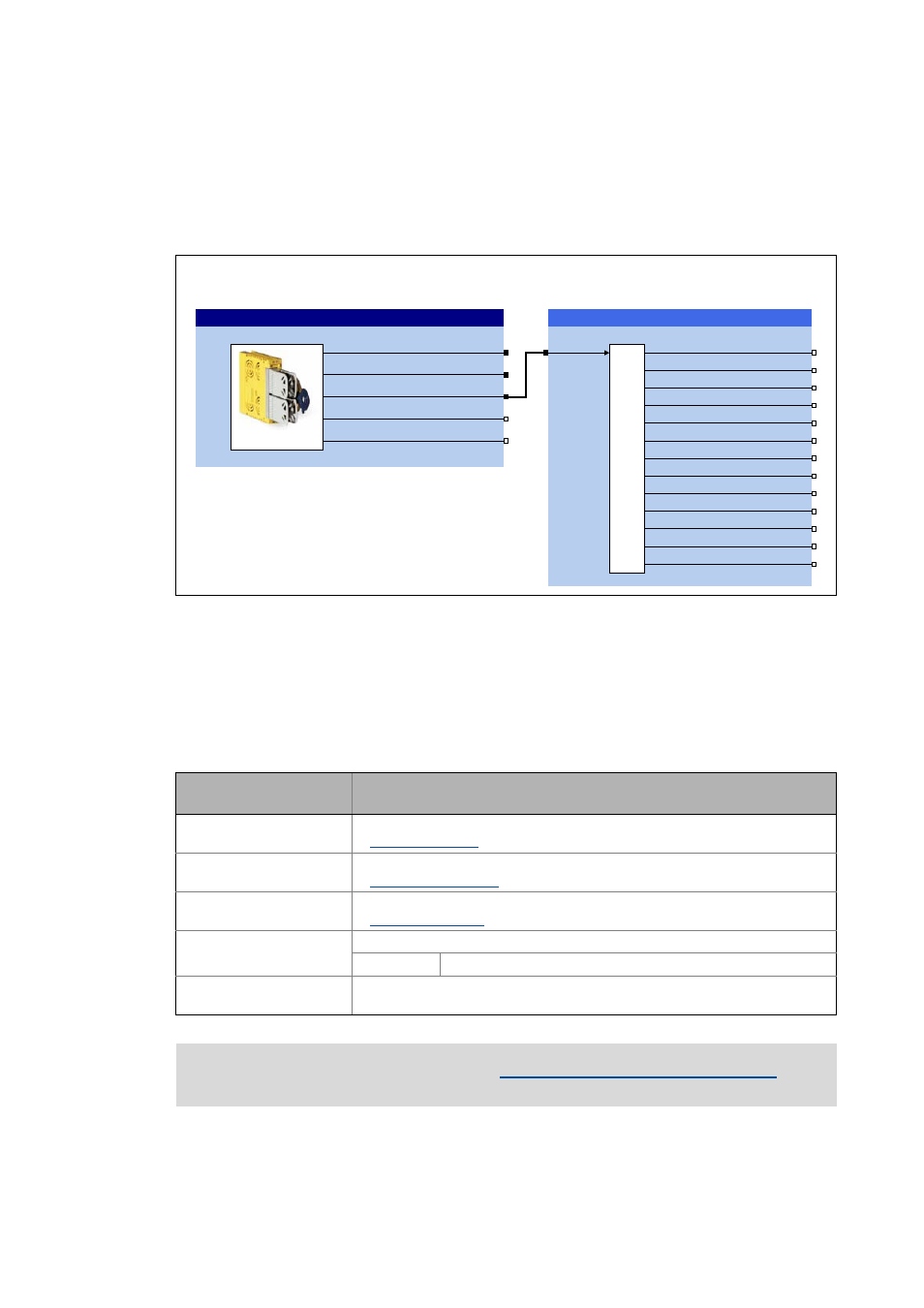

[2-3] Example: Decoding of the SMI_dwControl control signal into individual boolean control signals
2.5.3 "SMI_SafetyModuleInterface" system block for 9400 ServoPLC
For controllers of the "9400 ServoPLC" series the SMI_SafetyModuleInterface system block in the
control configuration of the »PLC Designer« provides the interface for the safety module.
Note:
This connection example only shows the control signals of the FB L_DevSMControlDecoder supported by SM301
V1.3.
60,BGZ&RQWURO
60,BGQ6WDWH
60,BGQ,R6WDWH
60,BE3RZHU6WDJH(QDEOH
60,BE\0RGXOH,G
/6B6DIHW\0RGXOH,QWHUIDFH
6DIHW\PRGXOH
/B'HY60&RQWURO'HFRGHU
E6DIH6WRS
E6DIH6WRS
E6DIHO\/LPLWHG6SHHG
E6DIHO\/LPLWHG6SHHG
E6DIHO\/LPLWHG6SHHG
E6DIHO\/LPLWHG6SHHG
E6DIH'LUHFWLRQ3RV
E6DIH'LUHFWLRQ1HJ
E(QDEOH6ZLWFK
E2SHUDWLRQ0RGH6HOHFWRU
60[[FRQWUROZRUG
GZ&RQWURO
E6DIH2SHUDWLQJ6WRS
E6DIH6WRS(PHUJHQF\
E6SHFLDO2SHUDWLRQ$FWLYH
System variable
Data type
Value/meaning
SMI_dnState
DINT
Bit coded status information from the safety module
 Status information ( 18)
SMI_dnIoState
DINT
Bit coded I/O status information from the safety module
 I/O status information ( 19)
SMI_dwControl
DWORD
Bit coded control information from the safety module
 Control information ( 20)
SMI_bPowerStageEnable
BOOL
Status signal "Inverter enable"
TRUE Inverter is enabled by the safety module.
SMI_byModuleId
BYTE
ID of the safety module available in the controller

The descriptions in the previous chapter "LS_SafetyModuleInterface" system block apply
to this system block in the same way.
