Basic workflow
1. Activation of the safety function on the safety module (e. g. SS1 - safe stop 1).
 Monitoring starts.
2. The safety module informs the controller via a control word that the safety function has been
activated.
3. The application evaluates the control word and starts the required motion sequence (e.g.
braking).

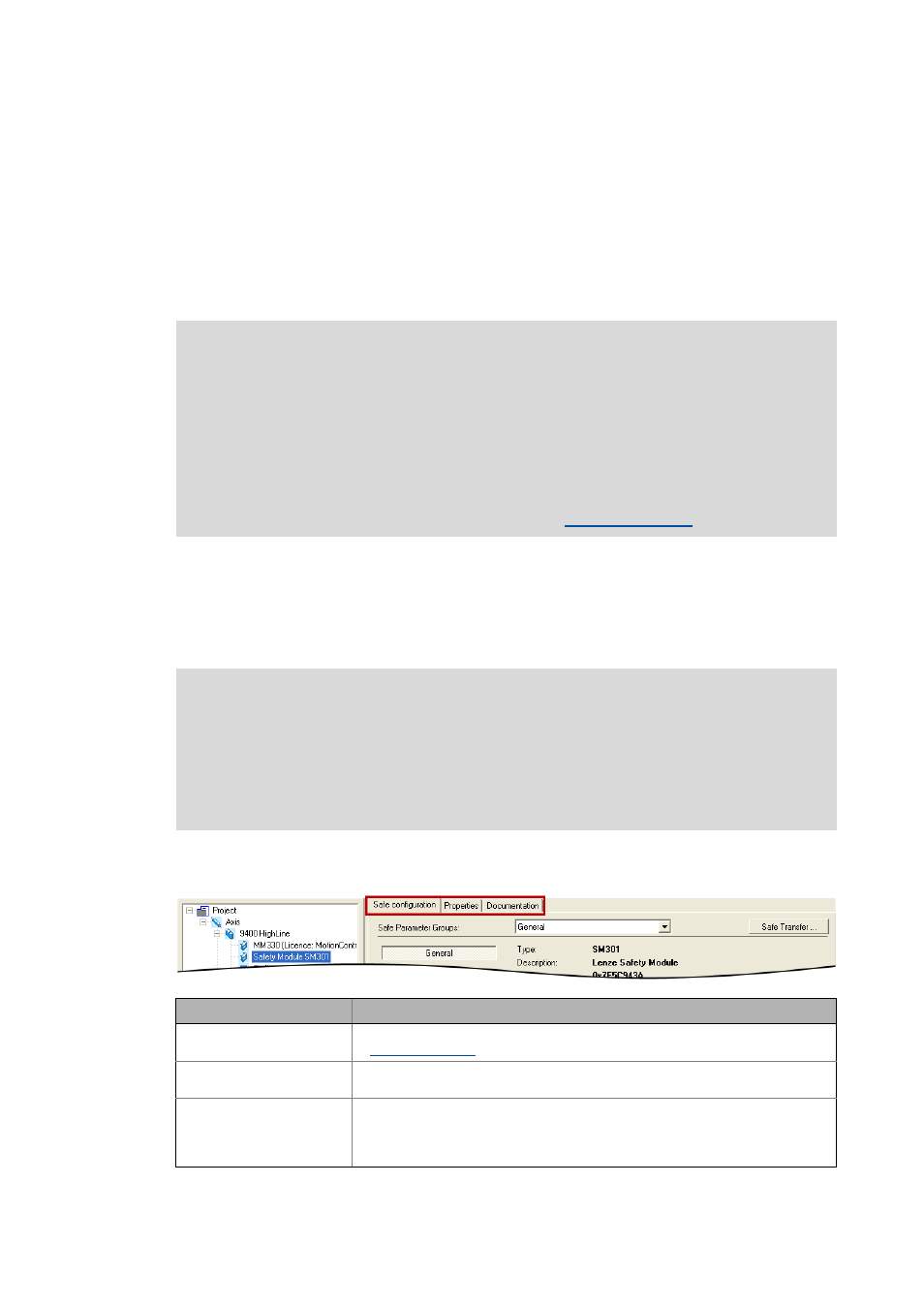

2.5 Parameter setting & configuration
If you select the SM301 safety module in the Project view of the »Engineer«, the following tabs are
available in the Operating range:

Note!
If communication to the controller is interrupted, e.g. by switching off the controller, the
safety module responds as follows:
• Fault stop with STO is activated.
• "Warning" error message is transmitted.
• The LED "ME" is blinking.
The required fault acknowledgement (AIE) is possible via terminal or safety bus.
Further information can be found in the chapter "
Error management ". ( 22)

Note!
Safety-relevant parameters can only be transmitted to the safety module via safe
parameter setting with the »Engineer«.
The parameter set is stored in the memory module and in the safety module with a
unique module ID which must comply to the effective safety address in the safety
module.
Tab Info
Safe configuration Via the Safe configuration tab, the SM301 safety module can be safely configured.
 Safe configuration ( 25)
Product features The Properties tab displays general information for the safety module, e.g. product
name, order number, and version.
Documentation The Documentation tab serves to add notes and electronic documents to the safety
module.
• Detailed information on adding documentations can be found in the »Engineer«
documentation in the chapter "Project structure".
