2.5.2.1 Status information
Via the bit-coded status signal SMI_dnState of the SB LS_SafetyModuleInterface the SM301 safety
module transmits the status of safety functions to the application.

Tip!
For decoding the status signal into individual boolean status signals, simply connect the
output SMI_dnState to the L_DevSMStateDecoder FB which is available in the function
library from V2.0.

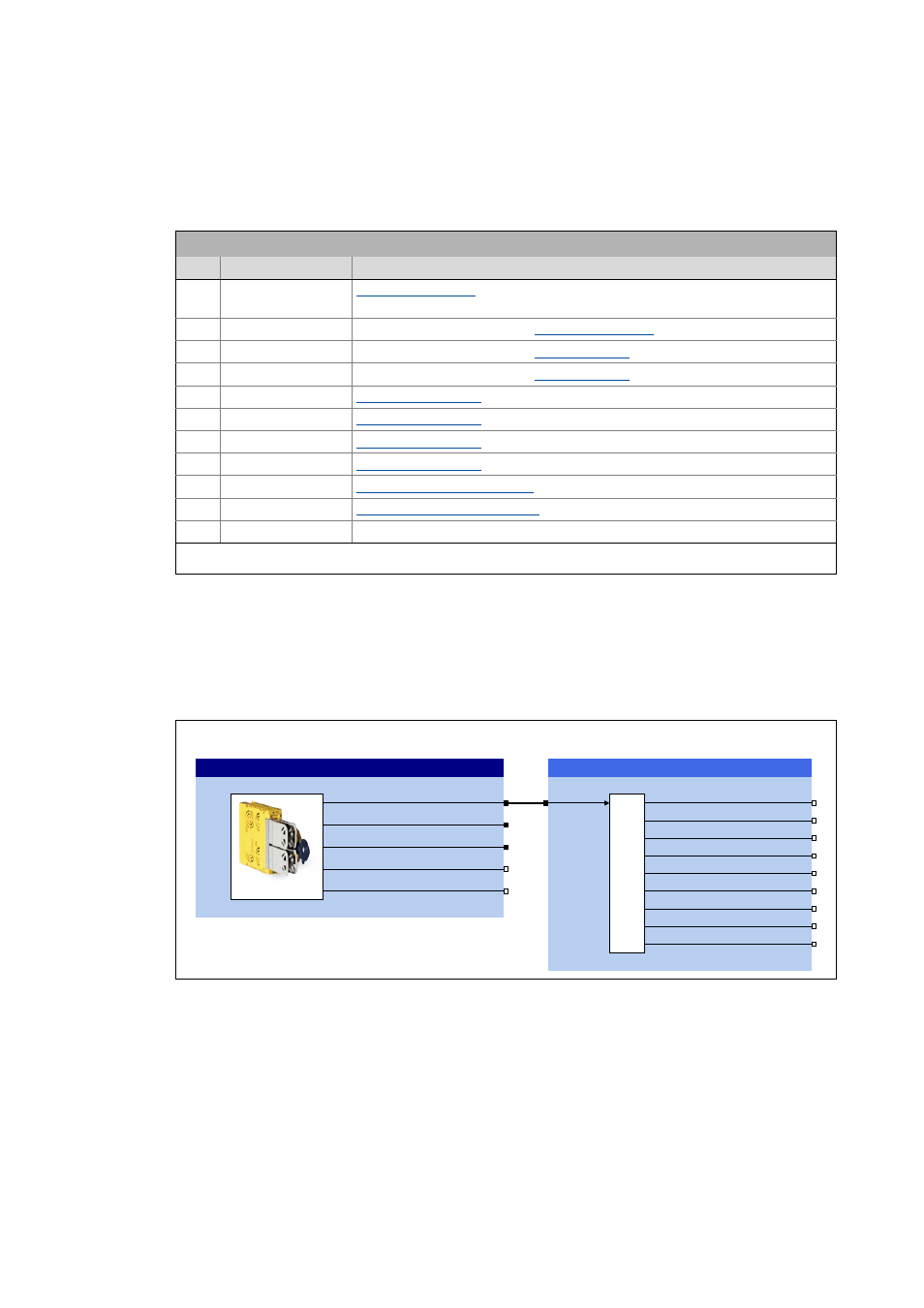

[2-1] Example: Decoding of the SMI_dnState status signal into individual boolean status signals
Bit coding of the status signal SMI_dnState
Bit Name Meaning
0 STO Safe torque off (STO) function is active.
• The drive is safely switched to torqueless operation.
3 EC_STO Error stop category 0: Function Safe torque off (STO) is active.
4 EC_SS1 Error stop category 1: Function Safe stop 1 (SS1) is active.
5 EC_SS2 Error stop category 2: Function Safe stop 2 (SS2) is active.
8 SLS1 monitored Safely limited speed 1 is activated and observed.
9 SLS2 monitored * Safely limited speed 2 is activated and observed.
10 SLS3 monitored * Safely limited speed 3 is activated and observed.
11 SLS4 monitored * Safely limited speed 4 is activated and observed.
12 SDIpos monitored ** Safe positive direction (SDIpos) is activated and observed.
13 SDIneg monitored ** Safe negative direction (SDIneg) is activated and observed.
14 Fault active SM301 safety module in error status (trouble or warning).
* From SM301 V1.1 ** From SM301 V1.3
Bits not listed are reserved for future extensions!
Note:
This connection example only shows the status signals of the FB L_DevSMStateDecoder supported by SM301 V1.1.
