SkyTrak 3606 Service Manual - Manual (Page 93)

Cab, Covers and Mirrors
4-7
15
30
7.5
7.5 7.5
7.5
7.5 7.5
7.5
7.5
7.5 7.5
7.5
7.5
7.5 7.5
7.5
7.5
15
15
30
7.5 7.5 7.5 7.5
7.5
7.5
7.5
7.5
7.5 7.5
7.5
7.5
30
25
7.5
20
20
7.5 7.5 7.5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
24
25
26
27
28
29
30
31
32 33
34
35
36
37
38
25 23
25
8
9
11
11
MS0880
Before S/N 8249*
1. Cab harness
2. Back-up alarm
3. Hex-lock elastic nut, 1/4-20
4. Flat washer, 1/4"
5. Boom sensor
6. Service brake switch
7. Side console (logic board) panel
8. Button-head capscrew, #10-32 x 3/4"
9. Well nut, #10-32
10. Steer select switch
11. Switch bezel
12. Auxiliary detent switch (optional)
13. Front console dash
14. Park brake switch
15. Round-head wood screw, #6 x 1/2"
16. Hourmeter
17. Machine bushing washer, 0.63" ID
18. Ignition switch (includes item 19)
19. Ignition key (set of two)
20. Fuse, 7.5 amp
21. Fuse, 40 amp
22. Fuse, 15 amp (Perkins cold start only)
23. Sealed relay, 12V, 40A
24. Slotted pan-head screw, #10-24 x 3/4"
25. Narrow flat washer, #10
26. Slotted pan-head screw, #10-24 x 5/8" 27. Hex-lock elastic nut, #10-24
28. Flat washer, 1/4"
29. Lock washer, 1/4"
30. Hex nut, 1/4-20
31. Plastic tie
32. Hex jam nut, M6-1 CI4
33. Lock washer, M6
34. Signal horn
35. Tube clip
36. Hex lock nut, 1/2-13
37. Attachment tilt mode switch
38. Attachment tilt direction harness

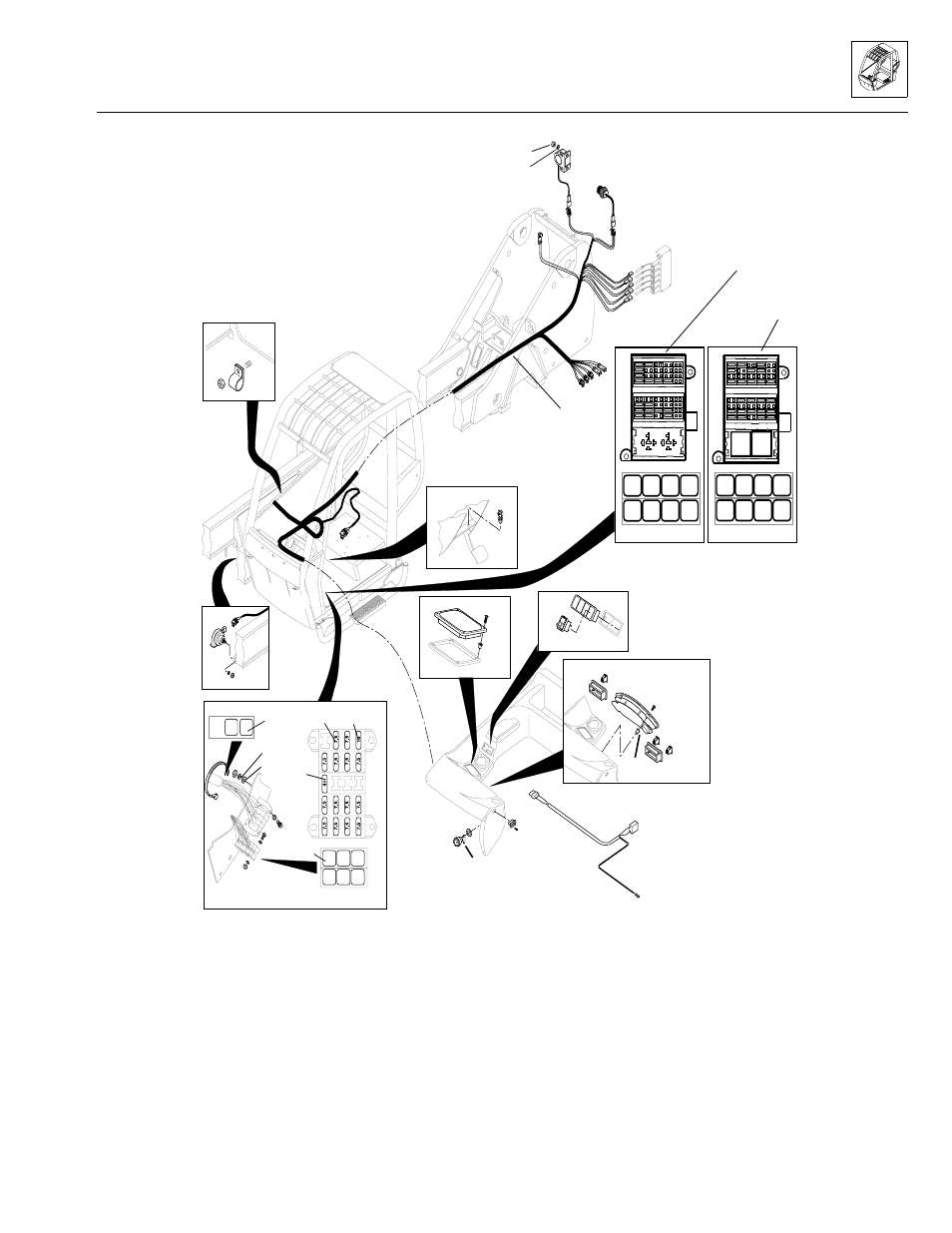

Figure 4–6. Label and disconnect wiring harnesses and wire leads at their connectors.
S/N 8249 - 9398*
S/N 9399 and After*
*See Section 2
for fuse and relay
panel information.
Model 3606 • Origin 10/99
