Page 91: Cab, covers and mirrors
Cab, Covers and Mirrors
4-5
6. Route the joystick, power steering and service brake
hydraulic hoses out of and away from the cab. Cut
and dispose of plastic wire ties as needed. Wipe up
any spilled hydraulic fluid.
7. Remove the cab rear panel (item 3 in the General
Overview illustration on page three). From behind the
cab, loosen the lower clamp (Fig. 4–3) securing the
fuel hose to the fuel tank. Remove the lower end of
the fuel hose from the fuel tank. Cap or safely cover
the fuel tank opening.
8. Loosen the clamp securing the fuel breather hose
(Fig. 4–3) to the top of the beaded hose tee. Remove
the lower end of the fuel breather hose from the hose
tee. Cap or safely cover the hose tee opening.

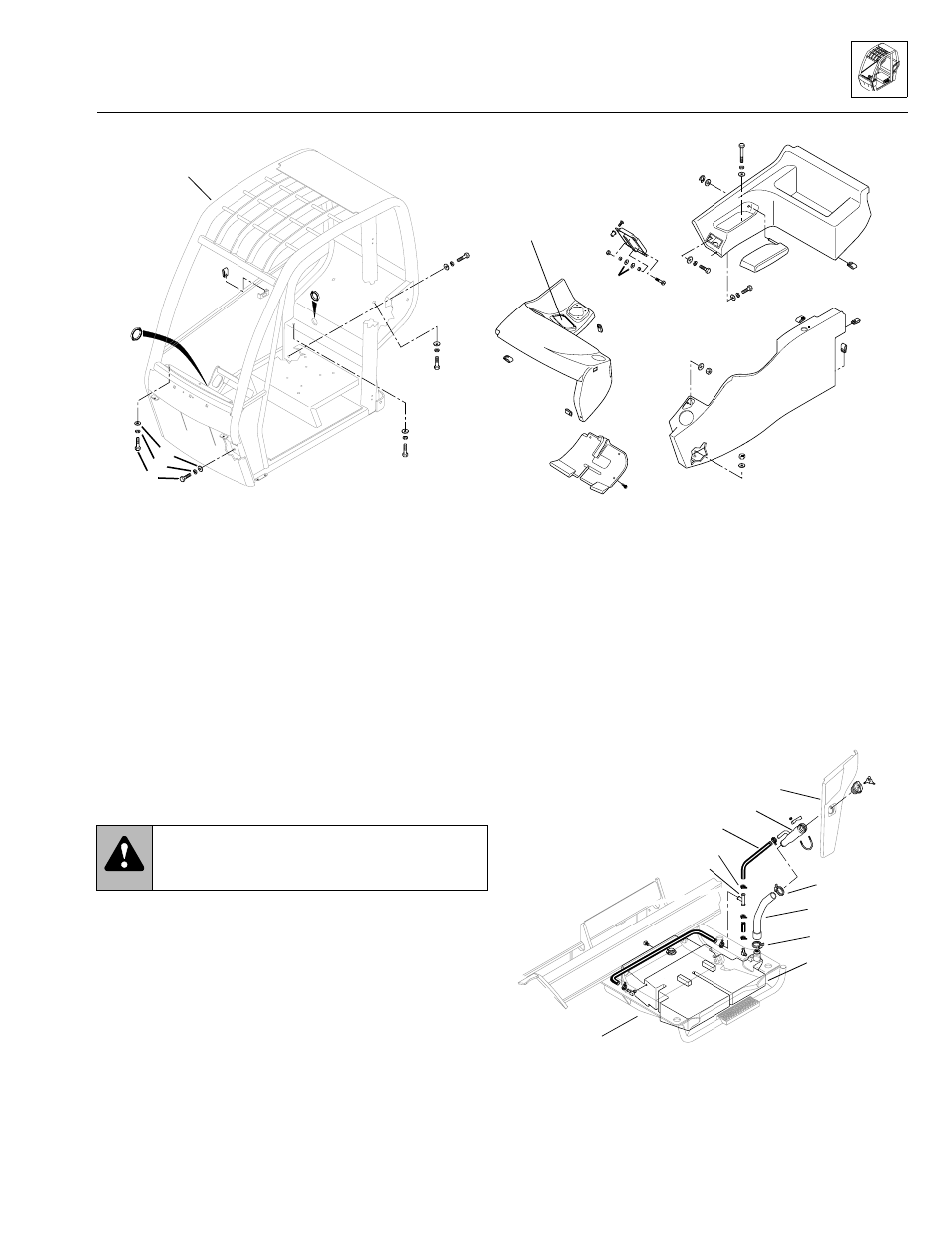

Figure 4–3. Loosen the clamps and remove the fuel tank
hoses from their fittings. Cap or safely cover the openings.
Cab (ref.)
Logic board
panel (ref.)
MS0850
Figure 4–3. Operator’s cab inner console and dash panel components.
1. Front dash
2. Retaining nut, 5/16-18
3. Lower dash cover
4. Self-drilling screw, #12-14 x 1"
5. Slotted hex-head capscrew,
#10-24 x 1"
6. Spacer
7. Fender washer
8. Hex-lock elastic nut, #10-24
9. Well nut, #10-32
10. Button-head capscrew,
#10-32 x 3/4"
11. Load chart holder
12. Console support
13. Rebound washer
14. Hex-lock elastic nut, 5/16-18
15. Flat washer, 5/16"
16. Lock washer, 5/16"
17. Hex-head capscrew,
5/16-18 x 1-1/4"
18. Armrest
19. Rear tool bin
20. Hex-head capscrew, 5/16-18 x 2"
21. Retaining ring
22. Flat washer, 1/2"
23. Conduit, 1/4" x 5" long
24. Conduit, 1/4" x 9" long
WARNING: Explosion and fire hazard. Cap or
safely cover the fuel tank and beaded hose tee
openings.
MS0860
LH Rear cab panel (ref.)
Fuel filler
Fuel breather hose
Clamp
Beaded hose tee
Vehicle
frame
(ref.)
Cab mount
Fuel tank
Lower clamp
Fuel hose
Upper clamp
Model 3606 • Origin 10/99
