2.5.6 Transmission
A. Transmission Fluid
Vehicle transmissions are factory filled with 10W motor
oil. Any suitable 10W motor oil, which meets the require-
ments of U.S. ordinance specification MIL-L-2104C, can
be used. Products known to meet these requirements
include:
• ARCO TRACTOR FLUID or equivalent
• CASTROL AGRICASTROL HDD
• CASTROL/DEUSOL CRD
• ESSO ESSOLUBE D-3HP
• ESSO ESSOLUBE XD-3
• SAE 10W MOTOR OIL
• SHELL RIMULA CT
• SHELL RIMULA TX
• SHELL RIMULA X
In general, use any approved 10W or 5W20 motor oil
(depending on ambient temperatures; see information
below), Dexron* or Dexron II D*, or an anti-wear hydraulic
oil meeting ISO Grade 46 specifications with a -40°F
(-40°C) pour point/ASTM viscosity SUS 215 at 100°F
(38°C).
For -30°F to +120°F (-34°C to 49°C), Dexron* II transmis-
sion fluid with a -50°F pour point may be substituted.
5W20 motor oil may be substituted for use with tempera-
ture conditions of -30
° F to 70 ° F (-34 ° C to 21 ° C) only.
Products known to meet these requirements include:
• AMOCO RYKON 46
• ARCO DURO AW S-215
• BENZ PETRAULIC 46-7C
• CHEVRON AW HYDRAULIC OIL 46
• CITGO PACEMAKER XD-46 or equivalent
• GULF HARMONY 46
• ISO-46 HYDRAULIC OIL
• MOBIL DTE-25
• SHELL TULLUS 46
• SUN SUNVIS 821 WR
• TEXACO RANDO HD 46
If anti-wear hydraulic oil as specified above is not available,
a suitable tractor fluid may be substituted which meets
the requirements of any of the following specifications:
• ARCO TRACTOR FLUID or equivalent
• DETROIT DIESEL C-3
• FORD TRACTOR M2C134B
• JOHN DEERE J20A
• TEXACO TDH OIL
• WHITE FARM Q1826

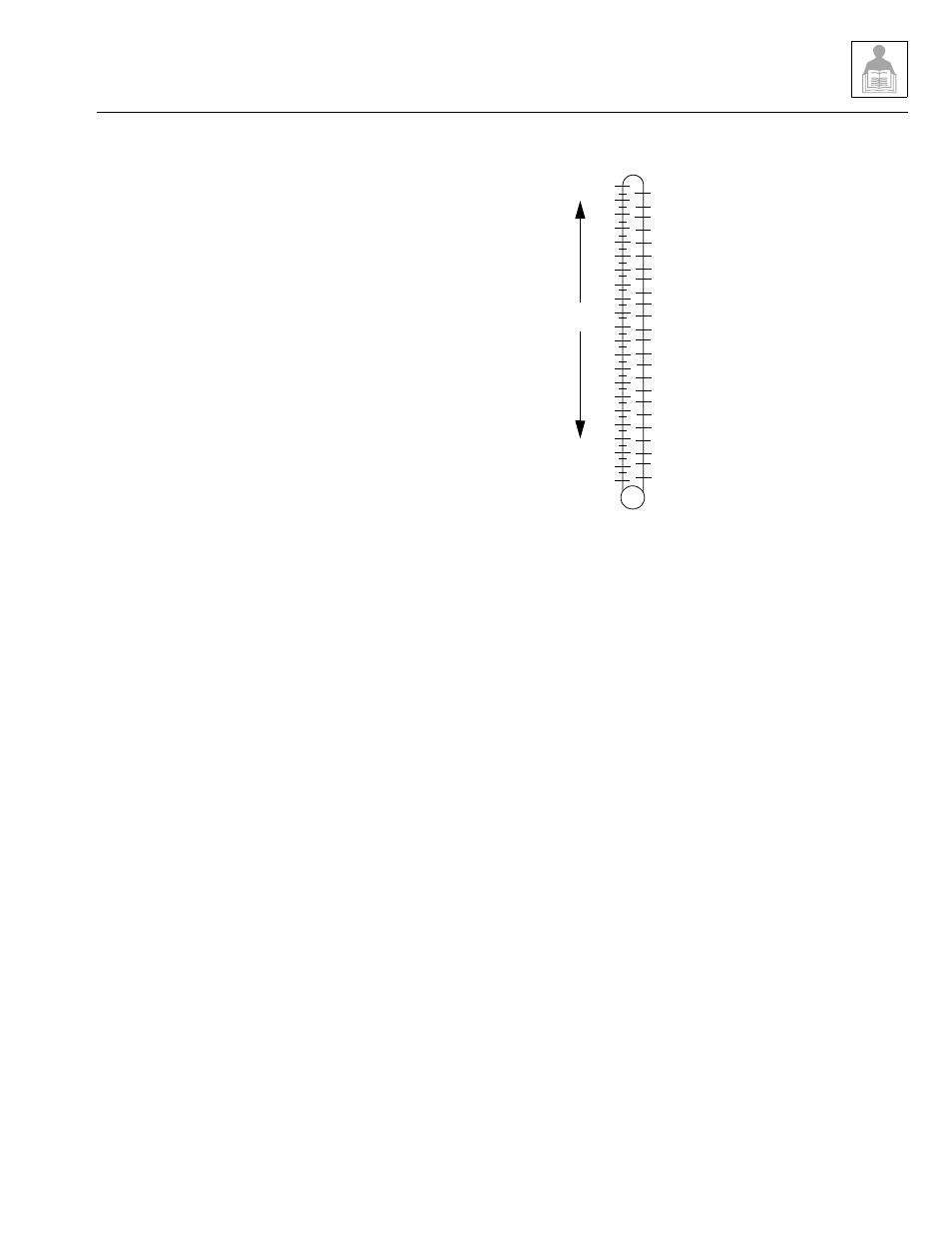

Chart 2-1. Transmission fluid temperature range.
PREFERRED OIL VISCOSITY: Select the highest vis-
cosity compatible with prevailing ambient temperatures
and the oil application information listed under Section
2.5.6 A. Transmission Fluid.
The Clark Hurth T12000 modulated shift transmission
used in this vehicle should use ONLY C-3 or Tempera-
ture Range 3 transmission fluids, Dexron* or Dexron II
D*.
Note: Dexron II D* is not compatible with graphitic clutch
plate friction material UNLESS IT MEETS THE
APPROVED C-3 SPECIFICATIONS.
*Dexron and Dexron II D are registered trademarks of General
Motors Corporation.
B. Transmission Capacity
Capacity w/ filter change ................. 3.4 gal (12,9 l)
Filter .................................................... 1.5 qt (1,4 l)
60
50
40
30
20
10
0
-10
-20
-30
-40
-50
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
-10
-20
-30
-40
-50
-60
Temperature Range "3"
If using Dexron*,
Use ONLY Dexron*
or Dexron II D*
See NOTE Below
RECOMMENDED LUBRICANTS FOR CLARK-HURTH
T12000 POWER SHIFTED TRANSMISSION
3
