Section 10
10-8 Model 3606 • Origin 10/99
10.2 SPECIFICATIONS
Electrical system specifications are listed in Section 2
General Information, Specifications and Maintenance
Instructions.
10.3 EFFECTIVE GROUND CONNECTIONS
Effective ground connections are essential to the efficient
operation of electrical components. If an inadequate
ground is suspected or determined, establishing another
ground may be desired. Also, in the event a factory-
authorized accessory is being installed, it is necessary to
follow the proper sequence for providing an electrical
ground. The sequence for installing or attaching a com-
ponent to an electrical ground is shown in Figs. 10–3 and
10–4.

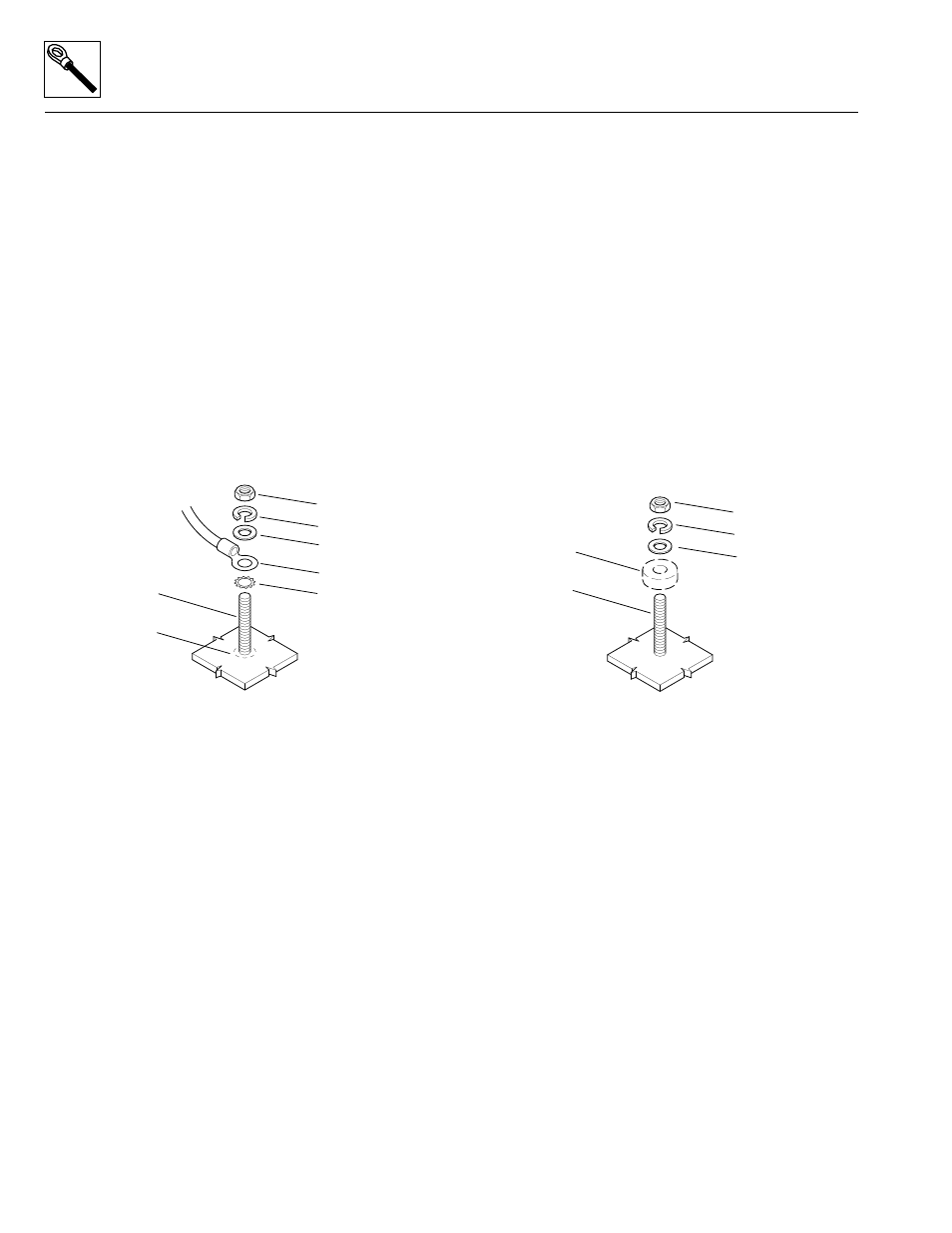

Figure 10–3. Recommended parts sequence
for grounding an electrical wire.
Figure 10–4. Recommended parts sequence for electri-
cally grounding a component at a mechanical support.
A. Stud, bolt or capscrew.
B. Eliminate paint, rust, etc. from the area around the base of
the stud, equivalent to outside diameter of lockwasher (5).
1. Hex nut or lock nut
2. Tooth- or slot-type lockwasher
3. Flat washer
4. Electrical ground(s)
5. Tooth-type lockwasher
MA0871
A
B
1
2
3
4
5
A. Partial sectional view of part to be grounded.
B. Stud, bolt or capscrew.
1. Hex nut or lock nut
2. Tooth- or slot-type lockwasher, or locking nut with slotted
type lockwasher
3. Flat washer
MA0881
A
B
1
2
3
