Hydraulic System
9-11

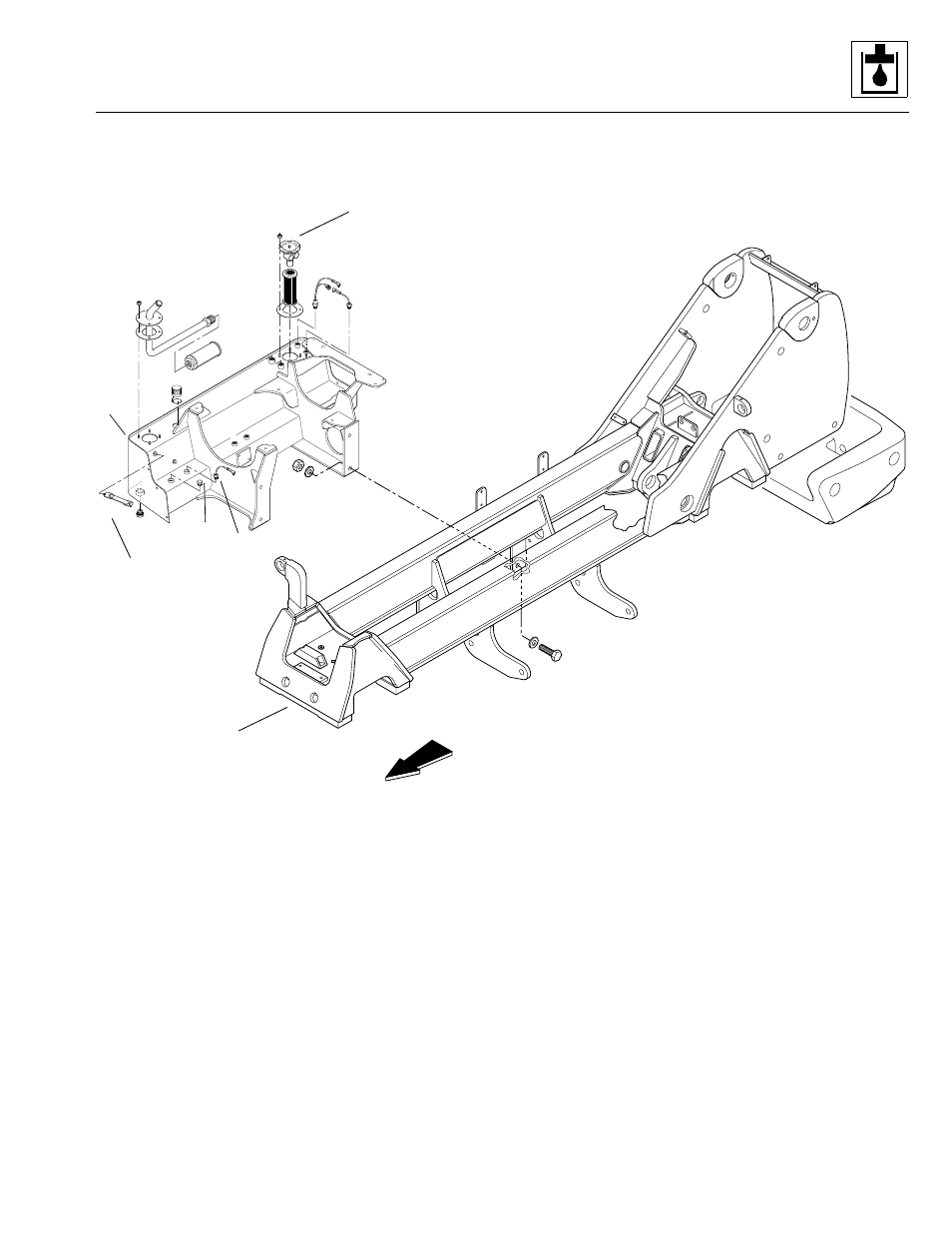

Figure 9–5. Hydraulic reservoir/engine mount.
MS2010
1. Hydraulic Reservoir
2. Hex-head Capscrew, Grade 8, 1-8 x 2-3/4"
3. Hardened Washer, 1"
4. Hex-lock Nut, 1-8
5. Strainer
6. Gasket
7. Breather
8. Temperature Switch, 195° F (76° C)
9. Oil Pressure Switch, 20 psi (1,4 kPa)
10. Sight Gage (includes seals and fasteners)
Torque to 4-5 lb/ft (5,4 - 6,8 Nm)
11. Inlet Tube Assembly
12. Magnetic Drain Plug, 24 ORB
13. Plug, 8 ORB
14. Elastic Lock Nut, 5/16-18
15. Filter Head
16. Filter Element
17. Temperature Switch, 95° F (35° C)
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
14
3
Slightly different for
some models; consult
3606 Parts Manual
Torque to 4-5 lb/ft
(5,4 - 6,8 Nm)
Frame (ref.)
Front of Vehicle
Model 3606 • Origin 10/99
