Port Trunking Overview
Port trunking is an economical way for you to increase the bandwidth
between two switches. A port trunk is a group of 2 to 8 ports that have
been grouped together to function as one logical path. A port trunk
increases the bandwidth between switches and is useful in situations
where a single physical data link between switches is insufficient to
handle the traffic load.
A port trunk always sends packets from a particular source to a particular
destination over the same link within the trunk. A single link is
designated for flooding broadcasts and packets of unknown destination.

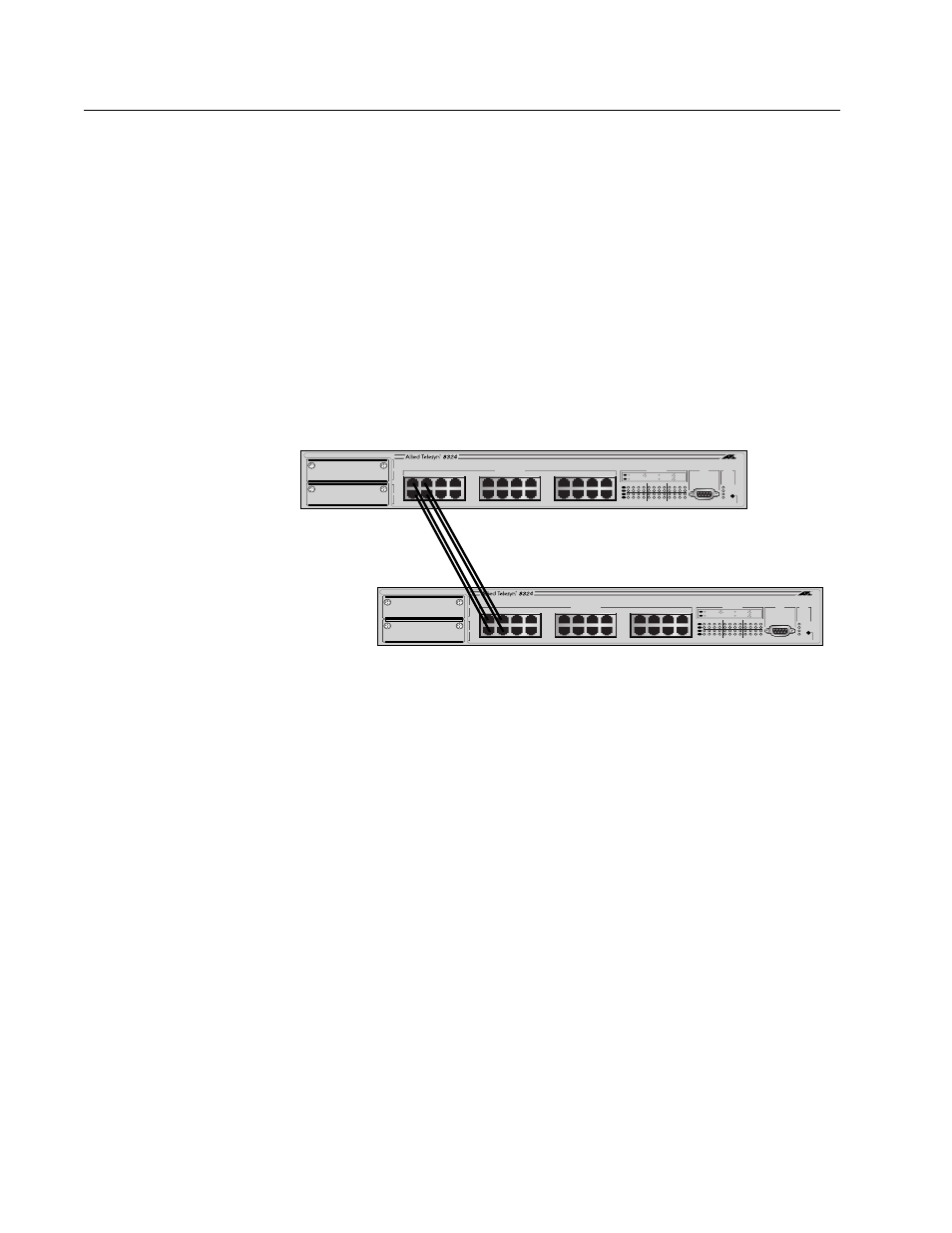

The example in Figure 21 consists of a port trunk of four data links
between two AT-8324 Switches.
Figure 21 Port Trunk Example
Port Trunking
Guidelines
When creating a port trunk, observe the following guidelines:
Guideline 1: Selecting the Number of Ports in a Trunk
A port trunk consists a group of 2 to 8 ports. The maximum number of
ports in a trunk is 8.
Guideline 2: Selecting Ports from the Same Switch in a Stack
The ports of a port trunk must be from the same switch in the stack. A
port trunk cannot consist of ports from different switches or different
port groups.
Guideline 3: Using Ports from the Same Group
The ports on the AT-8316F or the AT-8324 Switches are divided into
groups. The ports for a port trunk must be members of the same group.
