2.5

Remote Copy Terms and Concepts

InForm OS Version 2.3.1

Remote Copy User’s Guide

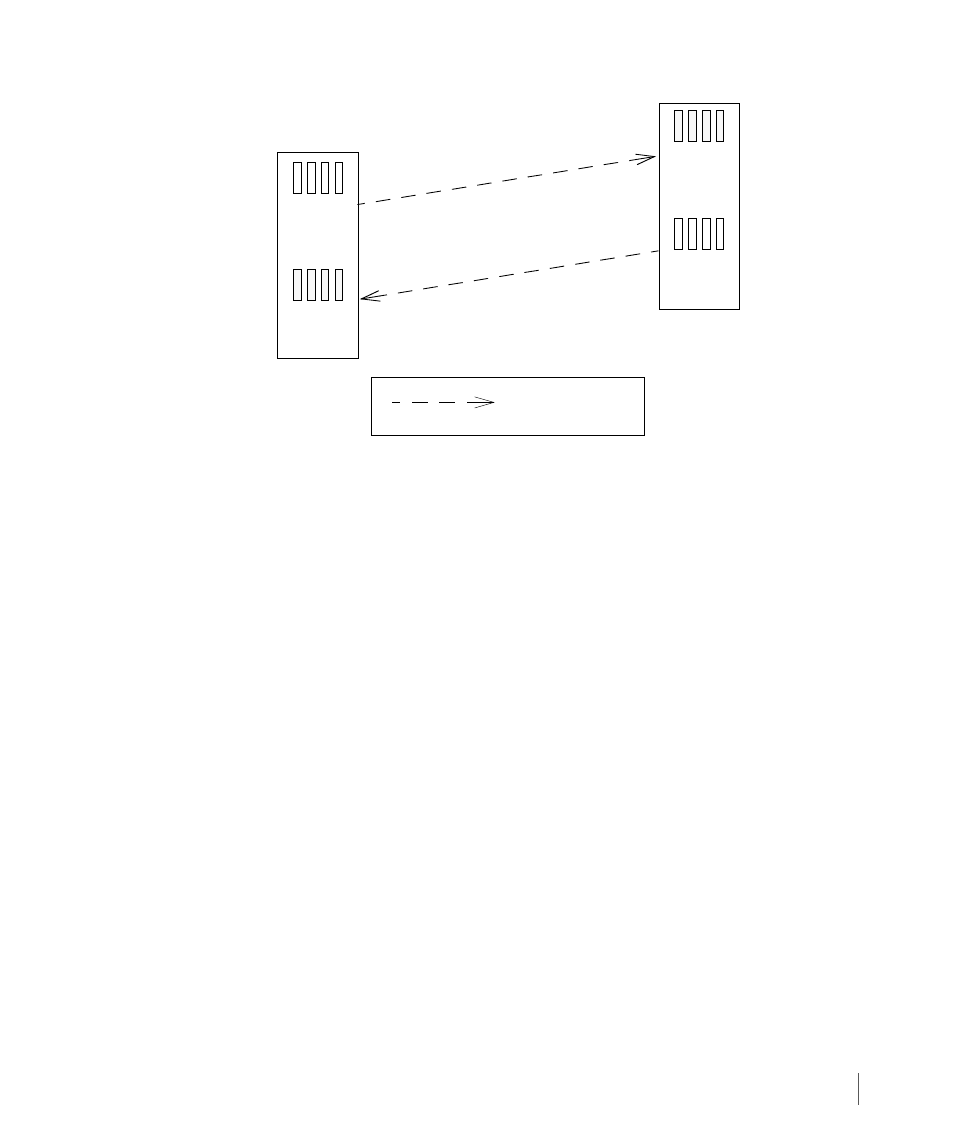

Figure 2-1. Relationship of Primary Versus Secondary Volume Groups on Primary and Backup Storage

Servers

In

Figure 2-1

, InServ1 and InServ2 act as both primary and backup servers. The following

relationships are established:

Volume Group X (the primary volume group on storage server InServ1) is copied to

storage server InServ2 and exists there as the secondary volume group Volume Group

X.r. InServ2 acts as a backup server to InServ1 (the primary server).

Volume Group Y (the primary volume group on storage server InServ2) is copied to

storage server InServ1 and exists there as the secondary volume group Volume Group Y.r.

InServ1 acts as a backup server to InServ2 (the primary server).

In Remote Copy, the storage server on which you initially created a volume group is

identified as the local or primary server. The natural direction of data replication (the copy)

originates from that server. In the previous figure, Remote Copy was set up on InServ1.

Therefore the natural direction of the copy is from InServ1 to InServ2 for Volume

Group X.

Primary

Volume

Group X

Secondary

Volume

Group Y.r

Secondary

Volume

Group X.r

Primary

Volume

Group Y

Group X to Group X.r

Group Y to Group Y.r

InServ1

InServ2

Natural direction

of data replication
