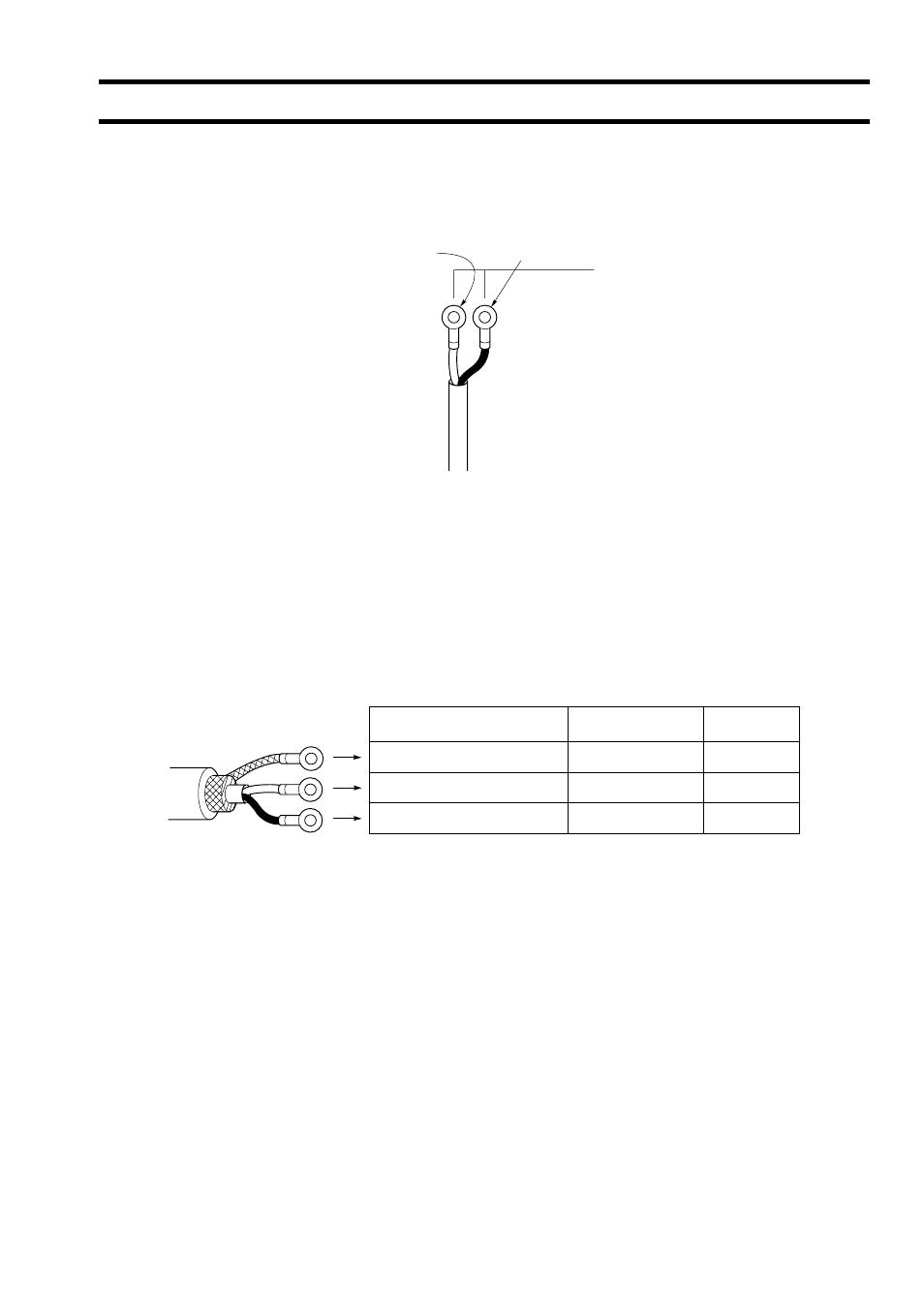

5.7. Cable end treatment
5.7.1. Cable end treatment for SX2
The end of coaxial cable is treated at the factory prior to delivery.
If the cable needs to be cut before use, the conductor and the shielding wires should be treated using clamp terminals.
Clamp terminal
Shielding wire (Black, G)/R2-3L Conductor (White, +)/R1.25-3
Note) When cutting the coaxial cable, make sure that the upstream side and the downstream side are identical lengths.
5.7.2. Cable end treatment for SX1
The end of coaxial cable is treated at the factory prior to delivery.
If the cable needs to be cut before use, the conductor, the shielding wires, and the external shielding wire should be treated
using clamp terminals.
Kind of clamp terminal
Clamp terminal
Name
Flow transmitter side
(for M3 screw)
Detector side
(for M4 screw)
External shielding wire (green) R2-3L R2-4
Conductor (White, +) R1.25-3 R1.25-4
Shielding wire (Black, G) R1.25-3 R1.25-4
Note) When cutting the coaxial cable, make sure that the upstream side and the downstream side are identical lengths.
