-97-

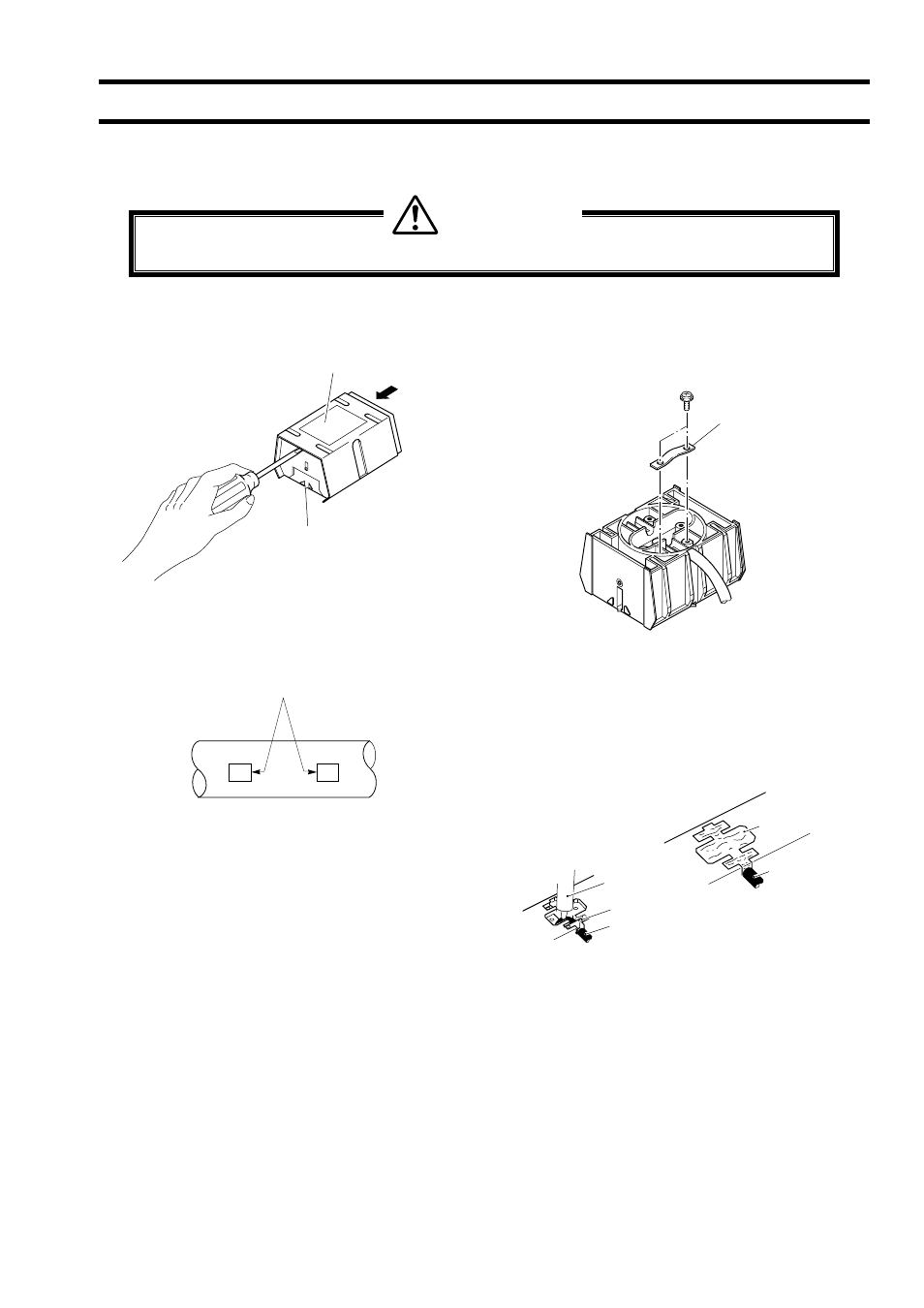

5.10. Mounting large size detector (SX1-C)
5.10.1. Connection of sensor cable
When removing or installing the cover, be sure to wear protective gloves. The edges may be sharp.
(1) Slightly move the sensor cover and remove it using an
screwdriver or the like.
Cover
Transmitting direction mark
(2) Confirm the mounting position on the pipe
z Align the transmitting direction marks so that they
are facing with each other.
Transmitting direction mark
(3) Connect the coaxial cable to the terminals (G, +) and
secure the cable with the cable clamp.
Note) Connect to the M4 crimp terminal side.
(Flow transmitter side: M3)
Cable clamp
(4) Remove any debris from the terminals and mold
the silicone onto the terminal block, sealing it.
z Cut off the tip of the silicone filler tube. Apply
silicone to the terminal block while pressing the
head of the tube against the bottom of terminals. At
this time, care should be taken to prevent entry of
air bubbles. Put the cover on the sensor.
Silicone filler
coaxial cable
Silicone filler
Cable clamp
Coaxial cable
CAUTION
Bulletin F-107-UXF3
