-83-
5.1.1. Mounting of detector
For sensor spacing, select either method in advance.
z Calculate from flow transmitter
Turn ON the flow transmitter.
Enter the piping information, etc described in Section 4.6.2, and display it.
Display example: PROCESS SETTING S=16 ( 48mm)
During wiring work, be sure to turn the power off.

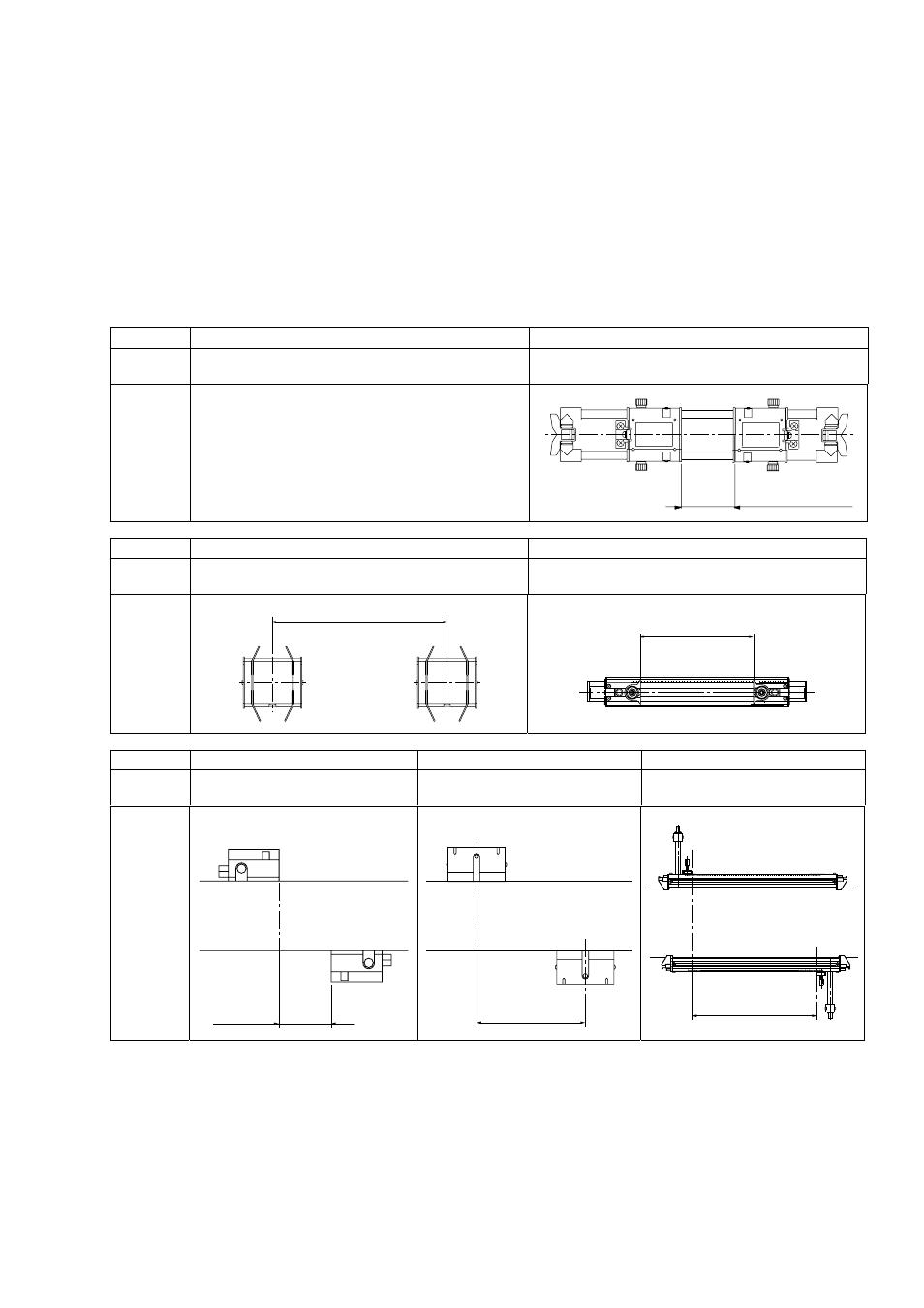

5.1.2. Image figure of mounting dimension
Type SX1-A SX1-A
Mounting
method
Z method V method
Mounting
dimension
Same as SX1-B (frame removed), see below
Mounting dimension
Type SX1-C SX2-A
Mounting
method
V method V method
Mounting
dimension
Mounting dimension
Mounting dimension
Type SX1-B SX1-C SX2-B
Mounting
method
Z method Z method Z method
Mounting
dimension
Mounting
dimension Mounting
dimension
Mounting dimension
Bulletin F-107-UXF3
