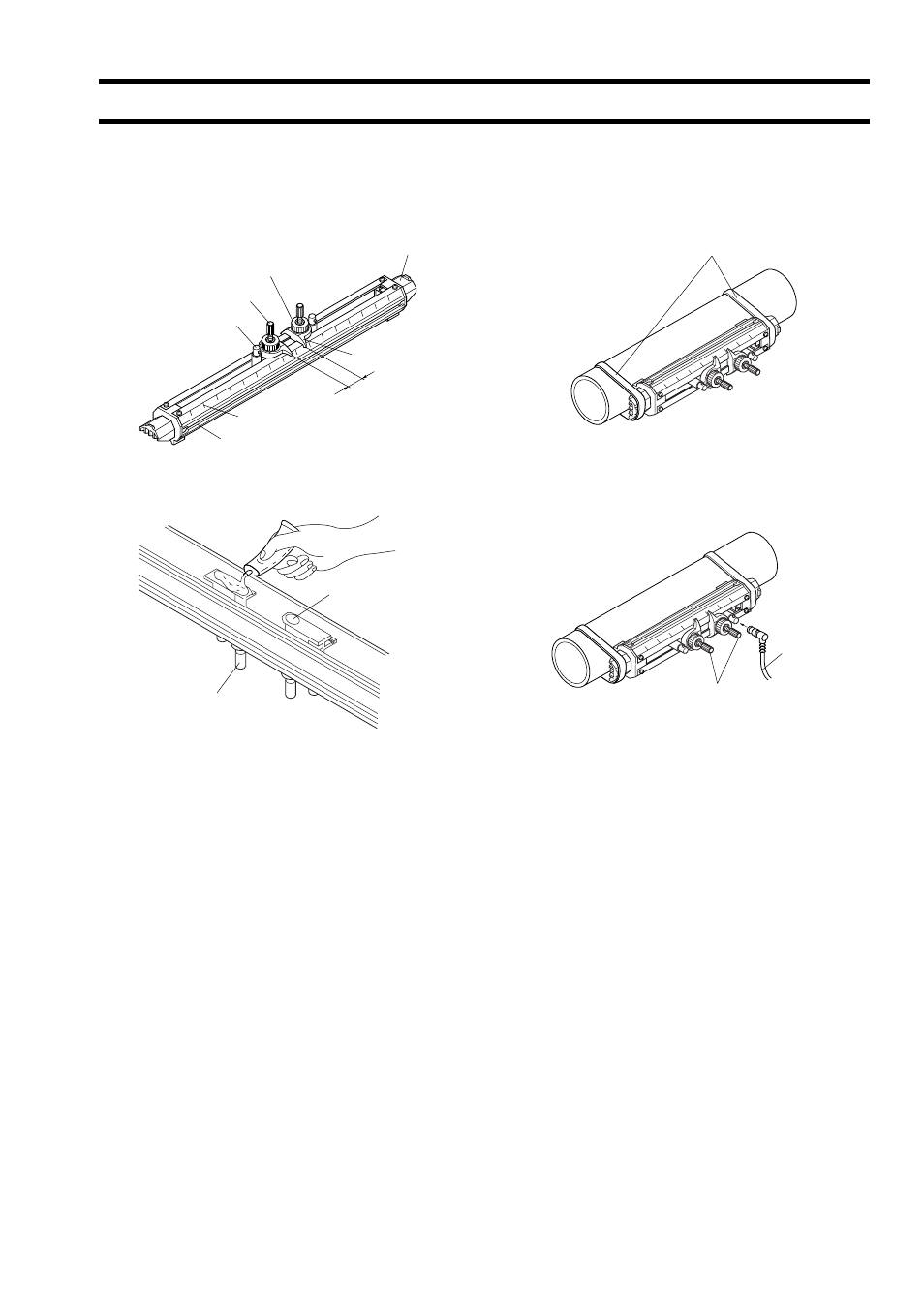

5.11. Mounting small diameter detector (SX2-A)
(1) Loosen the lock nut and slide the sensor so as to meet
the mounting dimension (the first decimal place at the
displayed mounting dimension is rounded) and then
tighten the nut.
Element holder
Lock nut
Saddle
Scale
Cursor
Mounting
dimension (L)
Frame
BNC connector
(2) Apply the silicone grease on the transmitting surface
of sensor while spreading it evenly.
Transmission side
Element holder
Turn the element holder counterclockwise to return the
sensor.
Clean the surface of the pipe and mount the sensor on
the pipe.
(3) Mount the sensor saddles on the pipe with stainless steel
belts.
(Wrap the stainless steel belts around the pipe first with
sufficient slack. Then slide the saddles under the belts.)
Stainless steel belt
(4) Make sure that the sensor is mounted in parallel with
the piping and that the mounting position is correct.
Then, turn the element holder clockwise until the
sensor is firmly fitted to the piping.
Element holder
Cable
Stop turning the element holder where the transmitting
surface contacts the surface of pipe, and thus the
element holder will not rotate. Do not turn it
excessively.
