Page 69
-61-

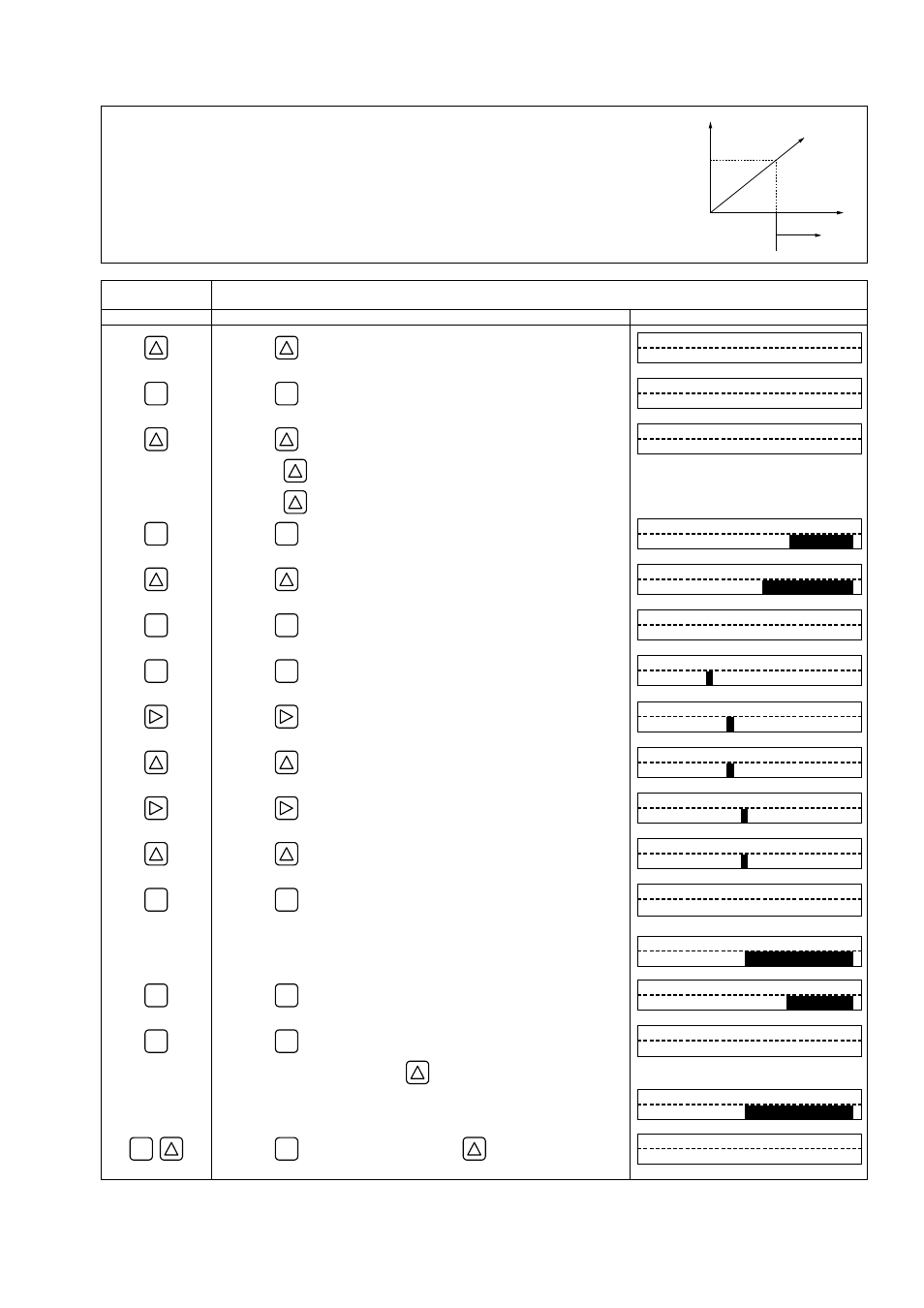

4.10.5.4. How to validate the total switch
Description
z Select a contact output as DO1, DO2 and/or DO3 when the total value exceeds a setting.
Settable range: 0.000001 to 99999999
Contact action:
ACTIVE ON : DO1/DO2: Normally off DO3: Normally open
ACTIVE OFF
: DO1/DO2: Normally on DO3: Normally close
Note) Different values can be assigned to DO1, DO2 and DO3.
For actual keying, refer to the typical operation indicated below. Set the parameter protection
to OFF beforehand. (See Section 4.4.1.)
Operation
(example)
Set the DO1 output to “TOTAL SWITCH”, and change the setting value from 10000[m
3
] to 100[m
3
].
Also, set the contact to “ACTIVE ON”.
Key operation
Description
Display
ź
Press the
key twice to display “OUTPUT SETTING”.
OUTPUT SETTING
ENT
ź
Press the
ENT
key once to display “ZERO ADJUSTMENT”.
ZERO ADJUSTMENT
SET ZERO
ź
Press the
key 6 times to display “DO1 OUT”.
* Press the
key again to display “DO2 OUT”.
* Press the
key once again to display “DO3 OUT”.
DO1 OUT
NOT USED
ENT
ź
Press the
ENT
key once to blink the cursor.
DO1 OUT
NOT USED
ź
Press the
key 6 times to display “TOTAL SWITCH” on the 2nd
line.
DO1 OUT
TOTAL SWITCH
ENT
ź
Press the
ENT
key once to display the setting screen of “TOTAL
SWITCH”.
TOTAL SWITCH
10000 m3
ENT
ź
Press the
ENT
key once to blink the cursor.
TOTAL SWITCH
0
0010000 m3
ź
Press the
key 3 times to move the cursor.
TOTAL SWITCH
000
1
0000 m3
ź
Press the
key 10 times to set “0”.
TOTAL SWITCH
000
0
0000 m3
ź
Press the
key twice to move the cursor.
TOTAL SWITCH
00000
0
00 m3
ź
Press the
key once to set “1”.
TOTAL SWITCH
00000
1
00 m3
Press the
ENT
key once to register.
TOTAL SWITCH
COMPLETE
Ļ
ENT
ź
ź
ź
ź
ʊʊʊ “TOTAL SWITCH” has been registered. ʊʊʊ
STATUS OUT
CONTACT ACTION
ENT
ź
Press the
ENT
key once to display “CONTACT ACTION”.
CONTACT ACTION
ACTIVE ON
Press the
ENT
key once to register “ACTIVE ON”(normally off).
* To select normally on, press the
key.
CONTACT ACTION
COMPLETE
Ļ
ENT
ź
ź
ź
ź
ʊʊʊ “ACTIVE ON” has been registered. ʊʊʊ
STATUS OUT
CONTACT ACTION
ESC
Press the
ESC
key twice and then press the
key 3 times to enter
the measurement mode.
0.000 %
0.000 m3/h
Time
Setting value
Total value
ON or OFF
Bulletin F-107-UXF3
