Dwyer UXF3 - Manual (Page 109)

-101-

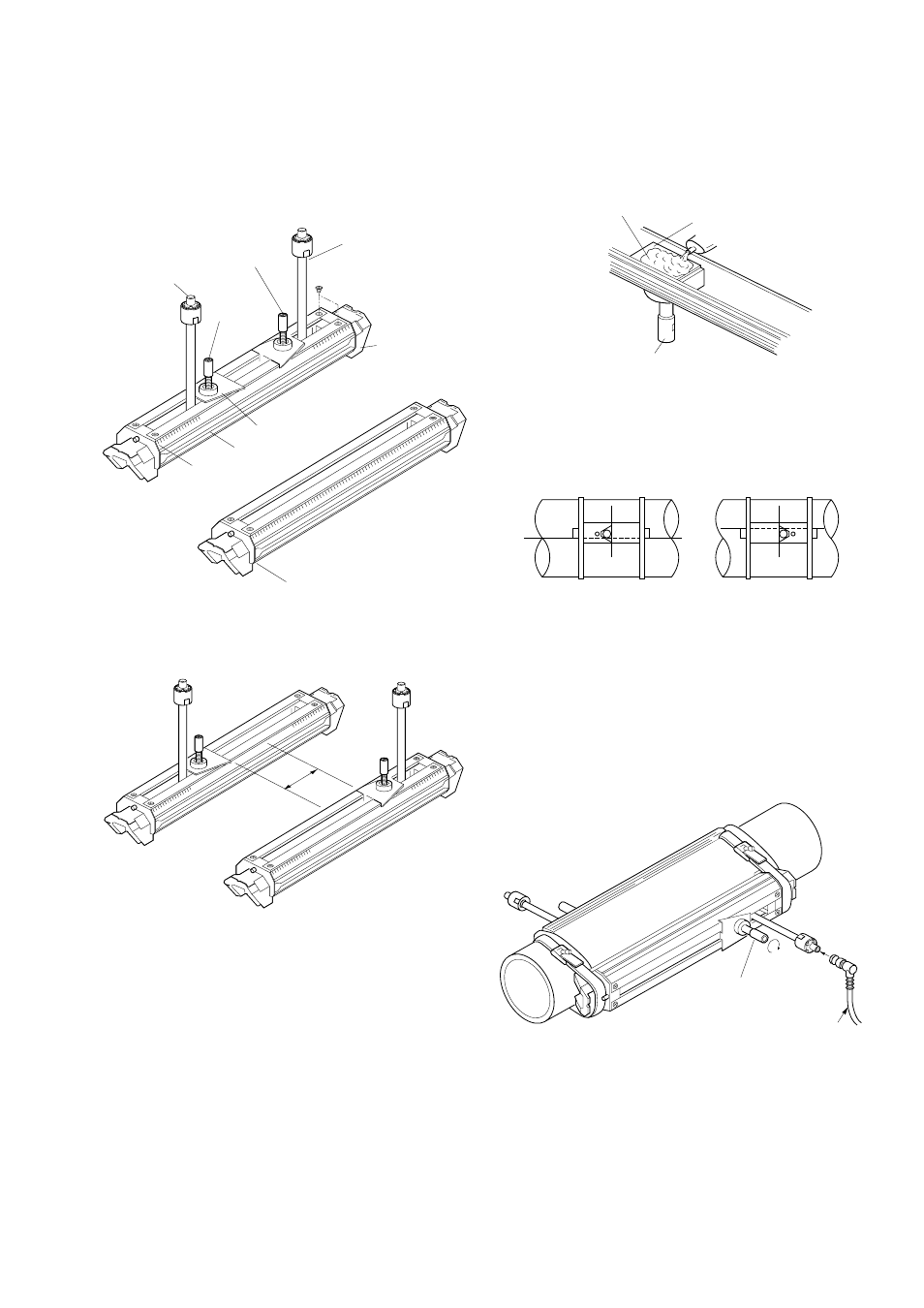

5.12.2. Mounting of detector (in case of Z method)
Mounting the detector using the following procedure.
(1) Remove saddle set screws at 4 locations, and remove
a saddle and a sensor unit out of the frame.
Also, remove a saddle on the guide rail for high
temperature sensor (option).
BN connector
Element
holder
Lock nut
Saddle
Cursor
Frame
Scale
Guide rail for high temperature sensor
Sensor unit
(2) Mount the removed sensor unit on the guide rail for
high temperature sensor.
Fasten the sensor unit with mounting dimension (L).
Mounting
dimension (L)
(3) Spread high-temperature grease over the whole
transmitting surface of the sensor.
Element holder
High-temperature grease
Transmitting surface
Turn the element holder counterclockwise to return the
sensor.
After cleaning the surface of the pipe, the sensor
should be mounted.
(4) Mount each sensor individually on the marking line.
Front view Back view
Upper side of
the marking line
Bottom side of
the marking line
(5) Make sure that the sensor is mounted in parallel with
the piping and that the mounting position is correct.
Then, turn the element holder clockwise until the
sensor is firmly fitted to the piping.
Stop turning the element holder where the transmitting
surface contacts the surface of pipe, and thus the
element holder will not rotate.
Do not turn it excessively.
Element holder
Cable
Bulletin F-107-UXF3
