4.10.2. Setting the Bi-directional range
Description
z The function measures the flow rate of either forward or reverse flow while changing
over the range corresponding to the flow direction.

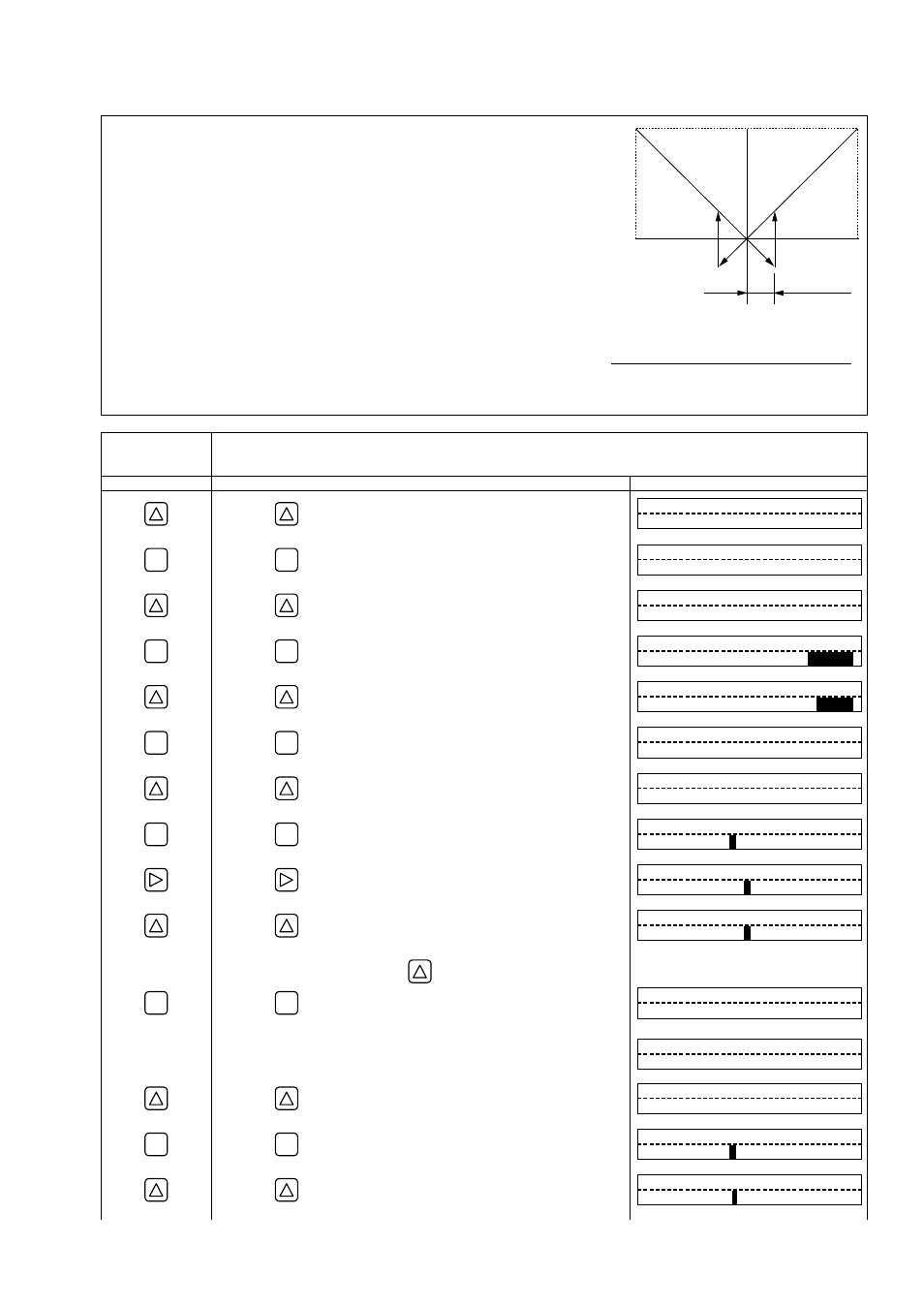

z The current output changes with the action range as illustrated on the right.
z The hysteresis can be set to between 0 and 20% of the action range.
z Upon setting DO1, DO2 or DO3 to "FULL SCALE2", a contact outputs "FULL
SCALE2" action.
Select “ACTIVE ON” or “ACTIVE OFF” separately. (See 4.10.5.)
z Settable range: ±0.3 to 32[m/s]; 0.984 to 105 [ft/s] in terms of flow velocity for FULL
SCALE1 and FULL SCALE2.
* Preset PIPE PARAMETER and FLOW UNIT.
* If a value beyond the settable range is inputted, "INPUT ERROR" appears and
then last setting is resumed.
* If "FLOW UNIT" has been changed after setting the range, redo the range setting.
* When FULL SCALE2 is not used (in the case of single range), set “0” to FULL SCALE2.
The flow rate unit is as selected by "FLOW UNIT" in “MEASURE SETUP” mode. Before setting range, set the "FLOW UNIT".
(See 4.8.2.)
For actual keying, refer to the typical operation indicated below. Set the parameter protection to OFF beforehand. (See Section 4.4.1.)
Operation
(example) Set “BI-DIR” to “RANGE TYPE”, 20[m3/h] to “FULL SCALE1”, and -10[m3/h] to “FULL SCALE2”.
Set “RANGE HYS.” to 7%.
* Preset “PIPE PARAMETER” and “FLOW UNIT”.
Key operation Description Display
ź
Press the key twice to display “OUTPUT SETTING”.
OUTPUT SETTING
ENT
ź
Press the ENT key once to display “ZERO ADJUSTMENT”.
ZERO ADJUSTMENT
SET ZERO
ź
Press the key 4 times to display “RANGE”.
RANGE
ENT
ź
Press the ENT key twice to blink the cursor.
RANGE
SINGLE
ź
Press the key twice, and select “BI-DIR”.
RANGE TYPE
BI-DIR
ENT
ź
Press the ENT key 4 times to display “RANGE TYPE”.
RANGE TYPE
BI-DIR
ź
Press the key once to display “FULL SCALE1”.
FULL SCALE1
50.0000 m3/h
ENT
ź
Press the ENT key once to blink the cursor.
FULL SCALE1
0 050.0000 m3/h
ź
Press the key several times to align the cursor to “5”.
FULL SCALE1
00 5 0.0000 m3/h
ź
Press the key several times to set “2”.
Note) To change the decimal point position, align the cursor with a place
to change to, and press the key.
FULL SCALE1
00 2 0.0000 m3/h
Press the ENT key once to register.
FULL SCALE1
COMPLETE
Ļ
ENT
ź
ź
ź
ź
ʊʊʊ FULL SCALE1 has been registered. ʊʊʊ FULL SCALE1
20.0000 m3/h
ź
Press the key once to display “FULL SCALE2”.
FULL SCALE2
0.0000 m3/h
ENT
ź
Press the ENT key once to register.
FULL SCALE2
0 000.0000 m3/h
ź
Press the key several times to display “-” on the 1st line.
FULL SCALE2
- 000.0000 m3/h
20mA
4mA
Hysteresis
