The following table describes the labels in this screen.
11.3 The RSTP System Configuration Screen
You must first enable RSTP in the Bridge Configuration screen in order to open
this screen.
Click Configuration > Bridge Menu > RSTP System Config to open the
following screen.

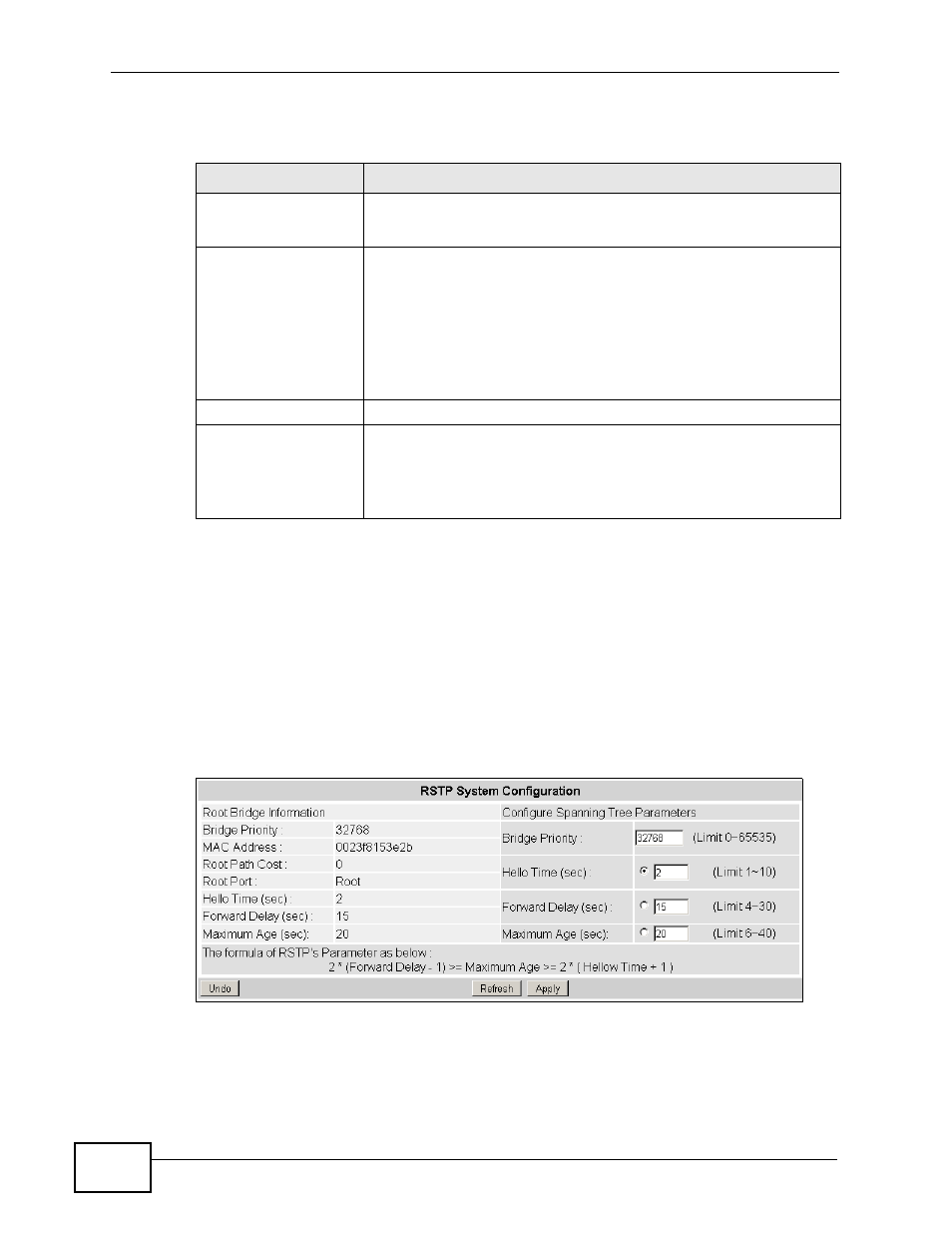

Figure 37 Configuration > Bridge Menu > RSTP System Config
Table 25 Configuration > Bridge Menu > Bridge Config
LABEL DESCRIPTION
Ring Protocol Select RSTP (802.1W) to enable RSTP.
Select Disable if you do not want to use this feature.
Port Select Enable to have the port participate in RSTP when you
select RSTP (802.1W) in the Ring Protocol field.
Select Disable so that the port will not participate in RSTP when
you select RSTP (802.1W) in the Ring Protocol field.
Select Tunnel so that the port will not participate in RSTP. When
the tunnel port receives Bridge Protocol Data Units (BPDU)
frames, the MES-2110 forwards the frames to other tunnel ports.
Undo Click this to restore your last saved settings.
Apply Click Apply to save your changes to the MES-2110’s run-time
memory. The MES-2110 loses these changes if it is turned off or
loses power, so use the Save Settings link in the navigation
panel to save your changes to the non-volatile memory when you
are done configuring.
