Chapter 4 Tutorials
MES-2110 User’s Guide
49
To configure frame tagging:
1

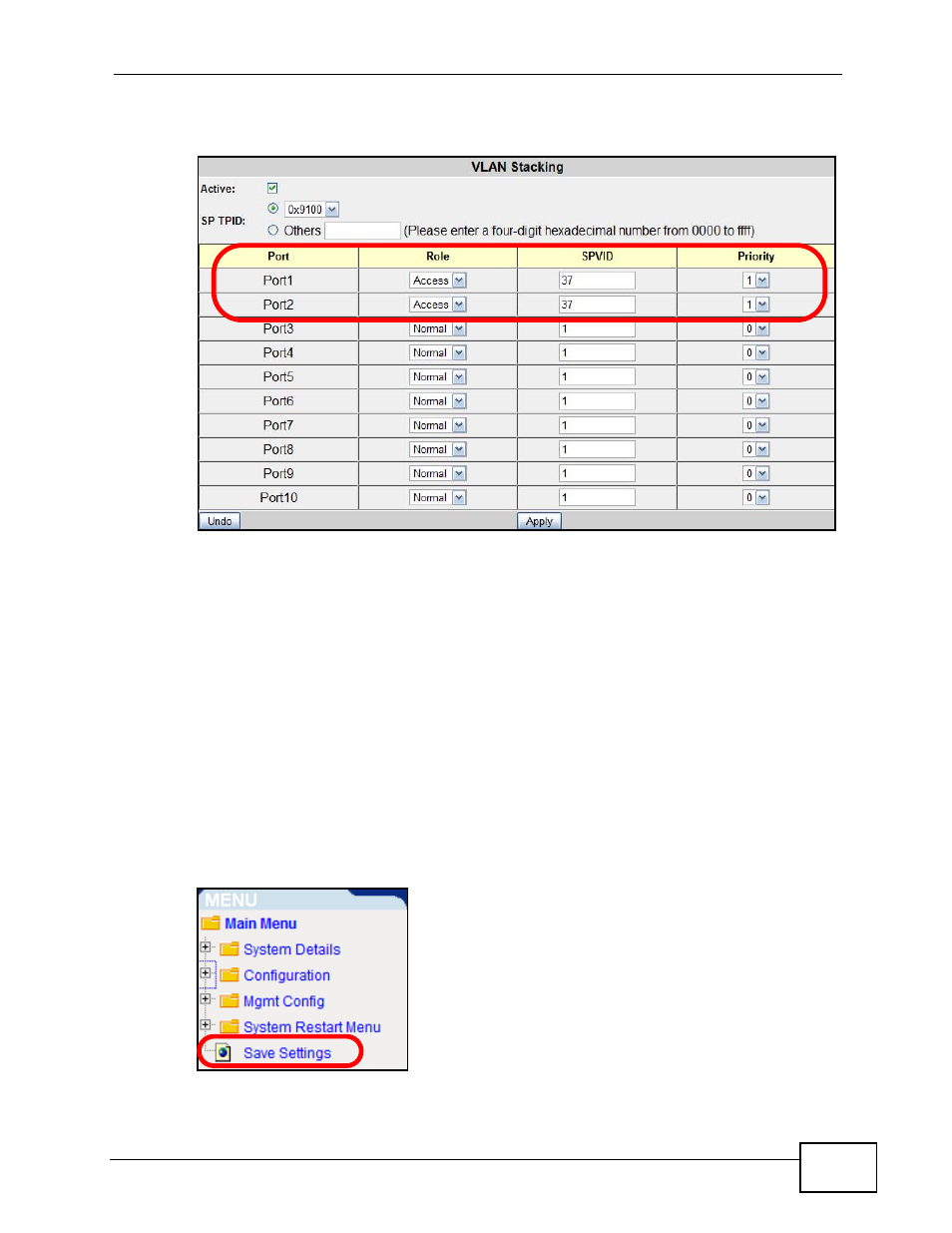

Open the Configuration > VLAN Menu > Tag-Based(802.1q) > VLAN
Stacking screen.
2
Select Active and click Apply.
3
For Port 1 and Port 2, use the following settings: for Role select Access, for
PVID use 37 and for Priority choose 1.
Note: If the port for which you are configuring frame tagging is the same port by which
you connect to the MES-2110 then your computer should use the same PVID or
you should switch a non-tagged port.
4
Click Apply.
5
Click Save Settings in the navigation panel to store the changes permanently.
