Chapter 16 Link Aggregation
MES-2110 User’s Guide
119
2
Configure static trunking-Click Configuration > Trunk Config > Aggregator
Setting. In this screen select the ports that should belong to trunk group 1 as
shown in the figure below. Do not select the LACP option. Click Apply when you
are done.

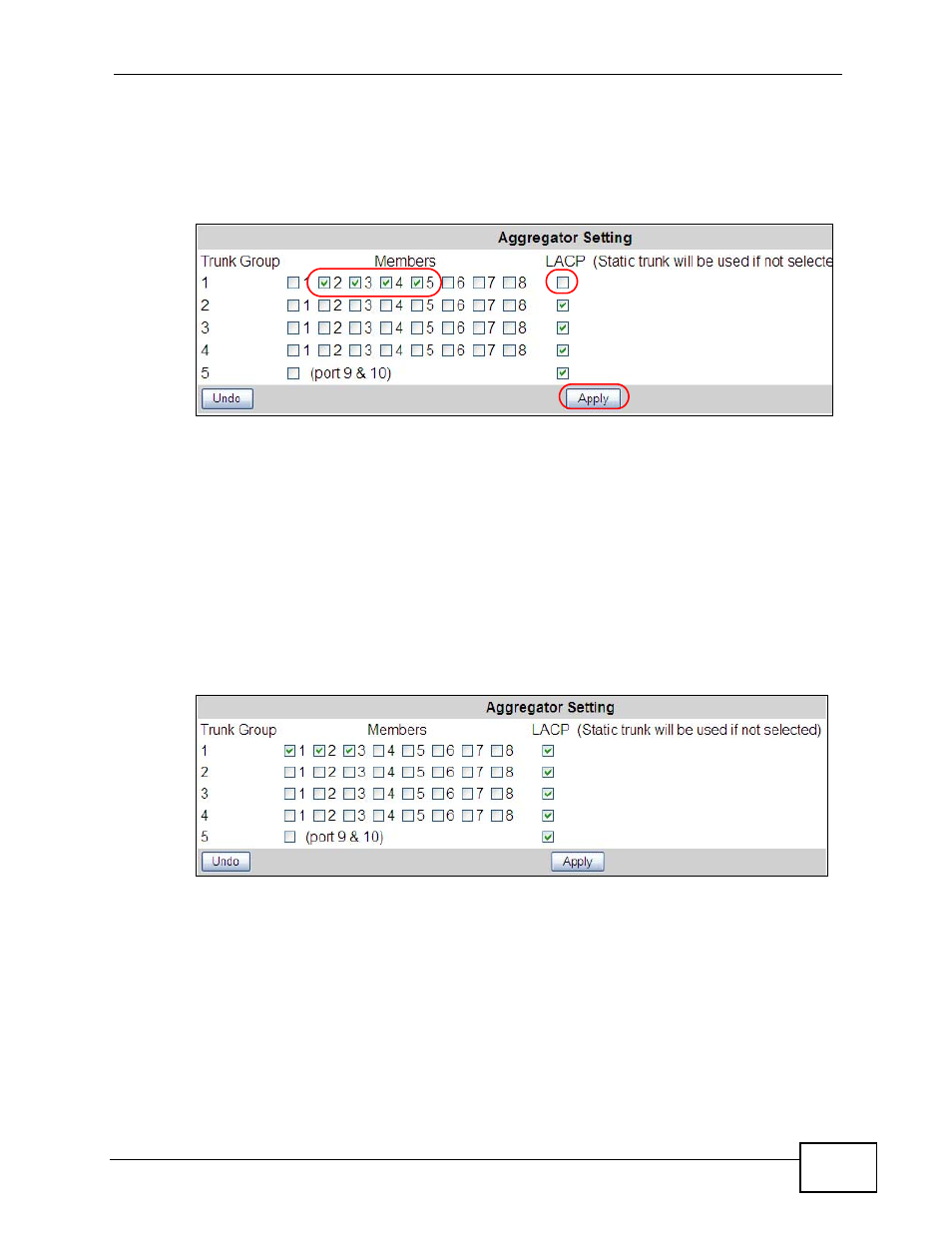

Figure 50 Trunking Example - Configuration Screen
Your trunk group 1 configuration is now complete; you do not need to go to any
additional screens.
16.4 Link Aggregation Setting
Click Configuration > Trunk Config > Aggregator Setting to display the
screen shown next. See
Section 16.1 on page 117 for more information on link
aggregation.
Figure 51 Configuration > Trunk Config > Aggregator Setting
