Chapter 2 Hardware Installation and Connection

MES-2110 User’s Guide

28

2.3.3 Mounting the MES-2110 on a Rack

1

Position a mounting bracket (that is already attached to the MES-2110) on one
side of the rack, lining up the two screw holes on the bracket with the screw holes
on the side of the rack.

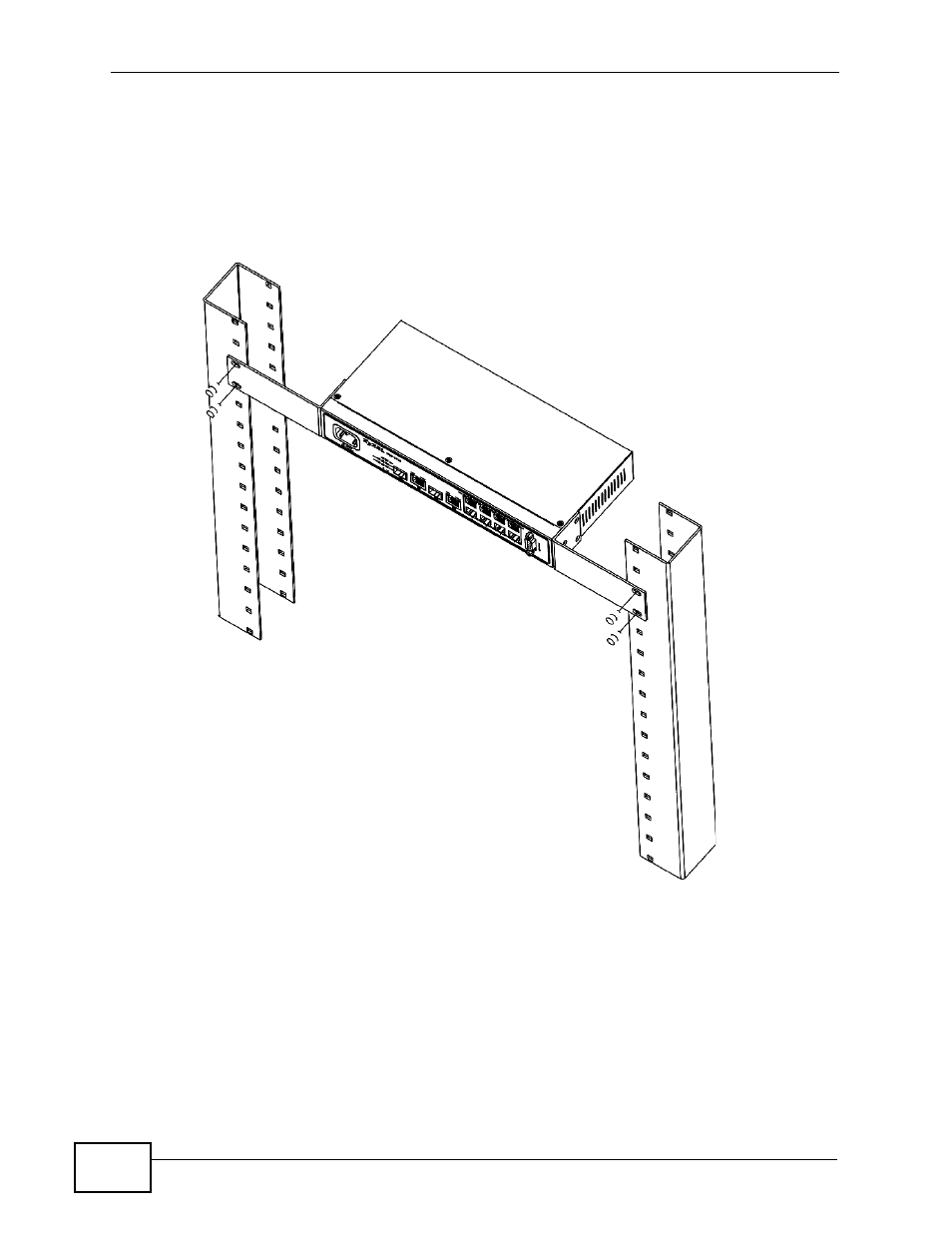

Figure 8 Mounting the MES-2110 on a Rack

2

Using a #2 Philips screwdriver, install the M5 flat head screws through the
mounting bracket holes into the rack.

3

Repeat steps

1

and

2

to attach the second mounting bracket on the other side of

the rack.
