Chapter 17 IGMP
MES-2110 User’s Guide
132
Note: A port can belong to more than one multicast VLAN. However, IP multicast
group addresses in different multicast VLANs cannot overlap.

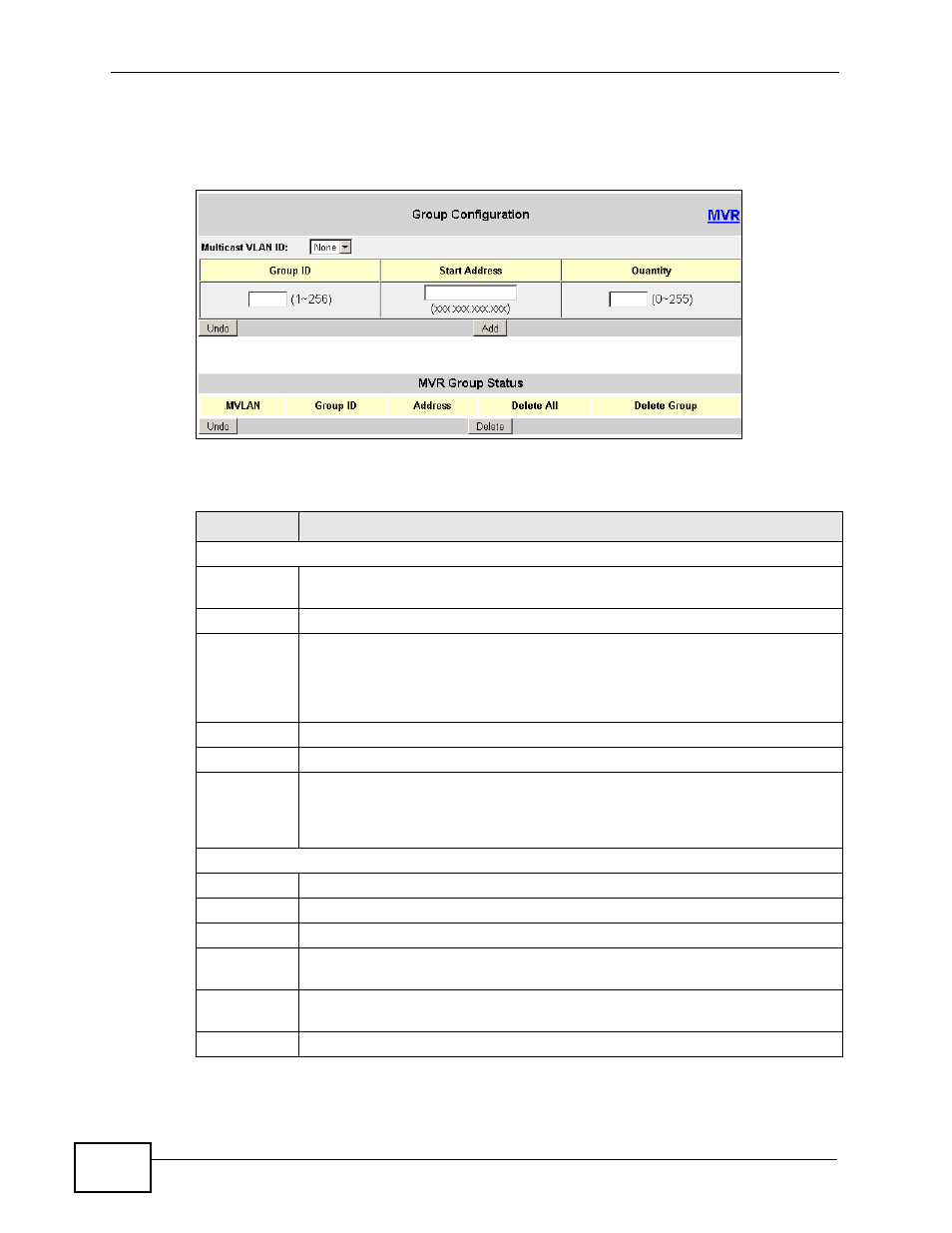

Figure 60 Configuration > IGMP Menu > MVR > Group Configuration
The following table describes the labels in this screen.
Table 50 Configuration > IGMP Menu > MVR > Group Configuration
LABEL
DESCRIPTION
Group Configuration
Multicast
VLAN ID
Select a multicast VLAN ID (that you configured in the MVR screen) from
the drop-down list box.
Group ID
Enter a group number for identification purposes.
Start
Address
Enter the starting IP multicast address of the multicast group in dotted
decimal notation.
for more information on IP multicast
addresses.
Quantity
Specify the number of IP addresses to include in the multicast group.
Undo
Click this to load your last saved settings.
Add
Click Add to save your changes to the MES-2110’s run-time memory. The
MES-2110 loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
MVR Group Status
MVLAN
This field displays the multicast VLAN ID.
Group ID
This field displays the ID number that identifies the multicast group.
Address
This field displays the starting IP address of the multicast group.
Delet All
Select the check box and click the Delete button to remove all configured
rules.
Delete
Group
Select the check box in the Delete Group field and click Delete to remove
the selected entry(ies) from the table.
Undo
Select this to clear the checkbox(es) in the table.
