Chapter 16 Link Aggregation
MES-2110 User’s Guide
118
• You must connect all ports point-to-point to the same Ethernet switch and
configure the ports for LACP trunking.
• LACP only works on full-duplex links.
• All ports in the same trunk group must have the same media type, speed,
duplex mode and flow control settings.
Configure trunk groups or LACP before you connect the Ethernet switch to avoid
causing network topology loops.
16.2.1 Link Aggregation ID
LACP aggregation ID consists of the following information
2
:
16.3 Static Trunking Example
This example shows you how to create a static port trunk group for ports 2-5.
1
Make your physical connections - make sure that the ports that you want to
belong to the trunk group are connected to the same destination. The following
figure shows ports 2-5 on switch A connected to switch B.

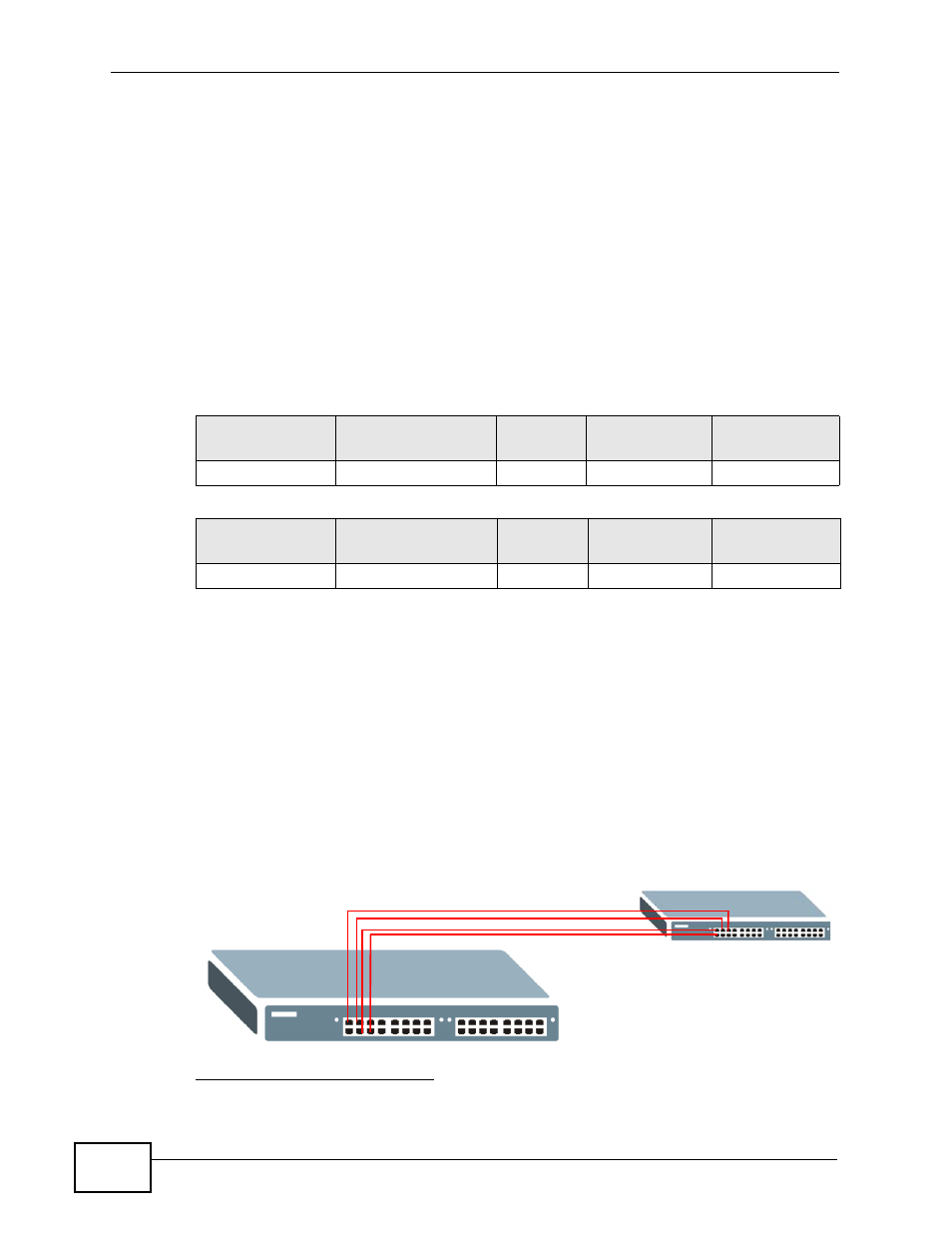

Figure 49 Trunking Example - Physical Connections
Table 41 Link Aggregation ID: Local Switch
SYSTEM
PRIORITY
MAC ADDRESS KEY
PORT
PRIORITY PORT
NUMBER
0000 00-00-00-00-00-00 0000 00 0000
Table 42 Link Aggregation ID: Peer Switch
SYSTEM
PRIORITY
MAC ADDRESS KEY
PORT
PRIORITY
PORT NUMBER
0000 00-00-00-00-00-00 0000 00 0000
2. Port Priority and Port Number are 0 as it is the aggregator ID for the trunk group, not the individual port.
A
B
