Chapter 16 Link Aggregation

MES-2110 User’s Guide

120

The following table describes the labels in this screen.

16.5 Link Aggregation Control Protocol

Click Configuration > Trunk Config > LACP Configuration to display the
screen shown next. See

Section 16.2 on page 117

for more information on

dynamic link aggregation.

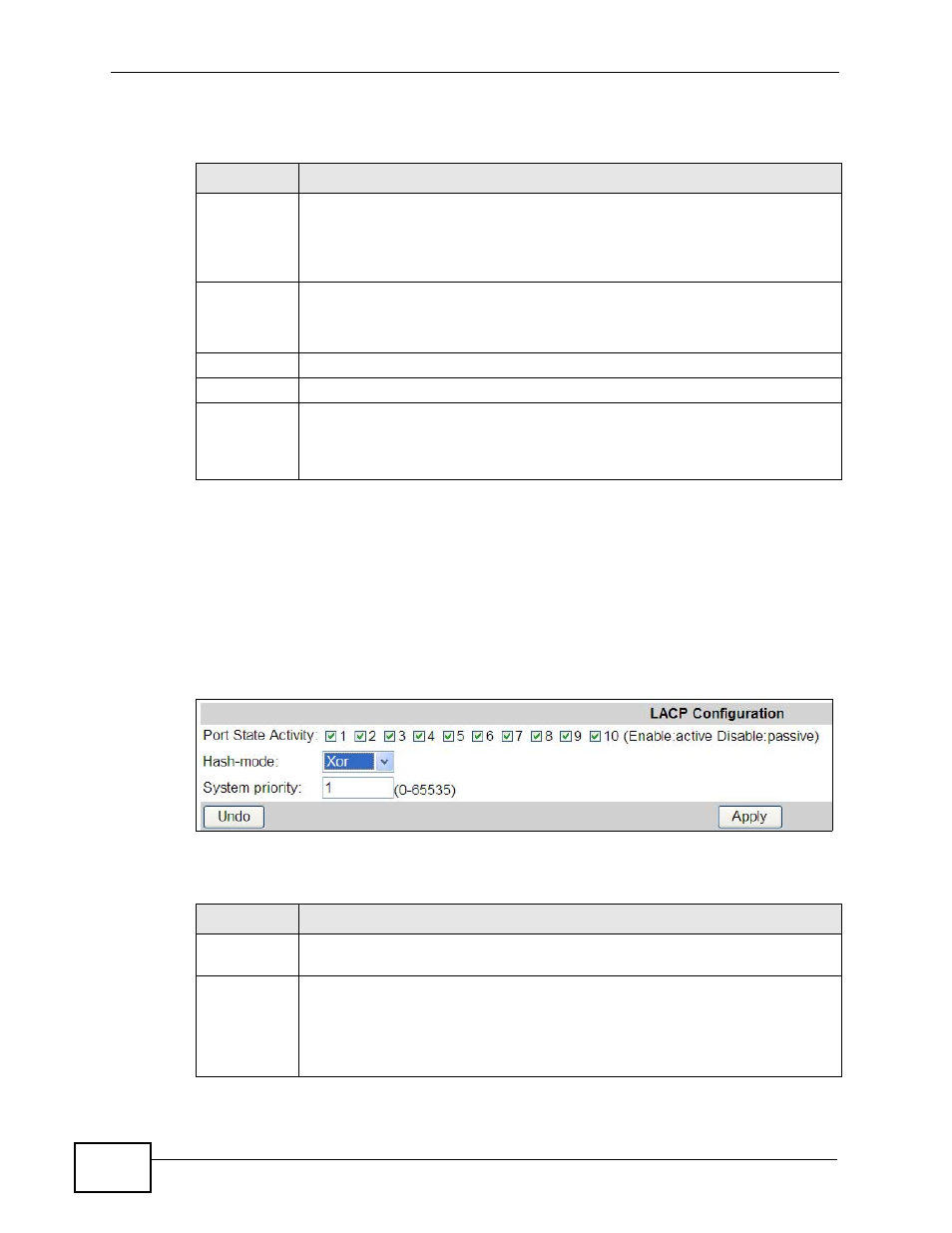

Figure 52 Configuration > Trunk Config > LACP Configuration

The following table describes the labels in this screen.

Table 43 Configuration > Trunk Config > Aggregator Setting

LABEL

DESCRIPTION

Group

This is the trunk group index number.

The MES-2110 supports up to four trunk groups for 100Mbps ports and up
to two trunk groups for Gigabit ports. 100Mbps ports and Gigabit ports
cannot be in the same group.

Members

Select the port(s) that belong to a trunk group.

For Groups 1 to 4, you can select up to four port members for each group.
For Group 5, you can select the two Gigabit ports as the members.

LACP

Use this to enable or disable LACP port trunking.

Undo

Click this to restore your last saved settings.

Apply

Click Apply to save your changes to the MES-2110’s run-time memory. The
MES-2110 loses these changes if it is turned off or loses power, so use the
Save Settings link in the navigation panel to save your changes to the
non-volatile memory when you are done configuring.

Table 44 Configuration > Trunk Config > LACP Configuration

LABEL

DESCRIPTION

Port State
Activity

Select the port to enable Link Aggregation Control Protocol (LACP).

Hash-mode

Use this to specify the outgoing traffic distribution type.

Select Lookup to distribute frames based on the destination MAC address.

Select Xor to distribute frames based on the last 3 bits of the source MAC
address and the trunk mask load balancing table.
