Chapter 17 IGMP

MES-2110 User’s Guide

126

17.2.1 IGMP VLAN Query Mode

Click Configuration > IGMP Menu > IGMP Config then click the IGMP VLAN
Query Mode
link to open the following screen.

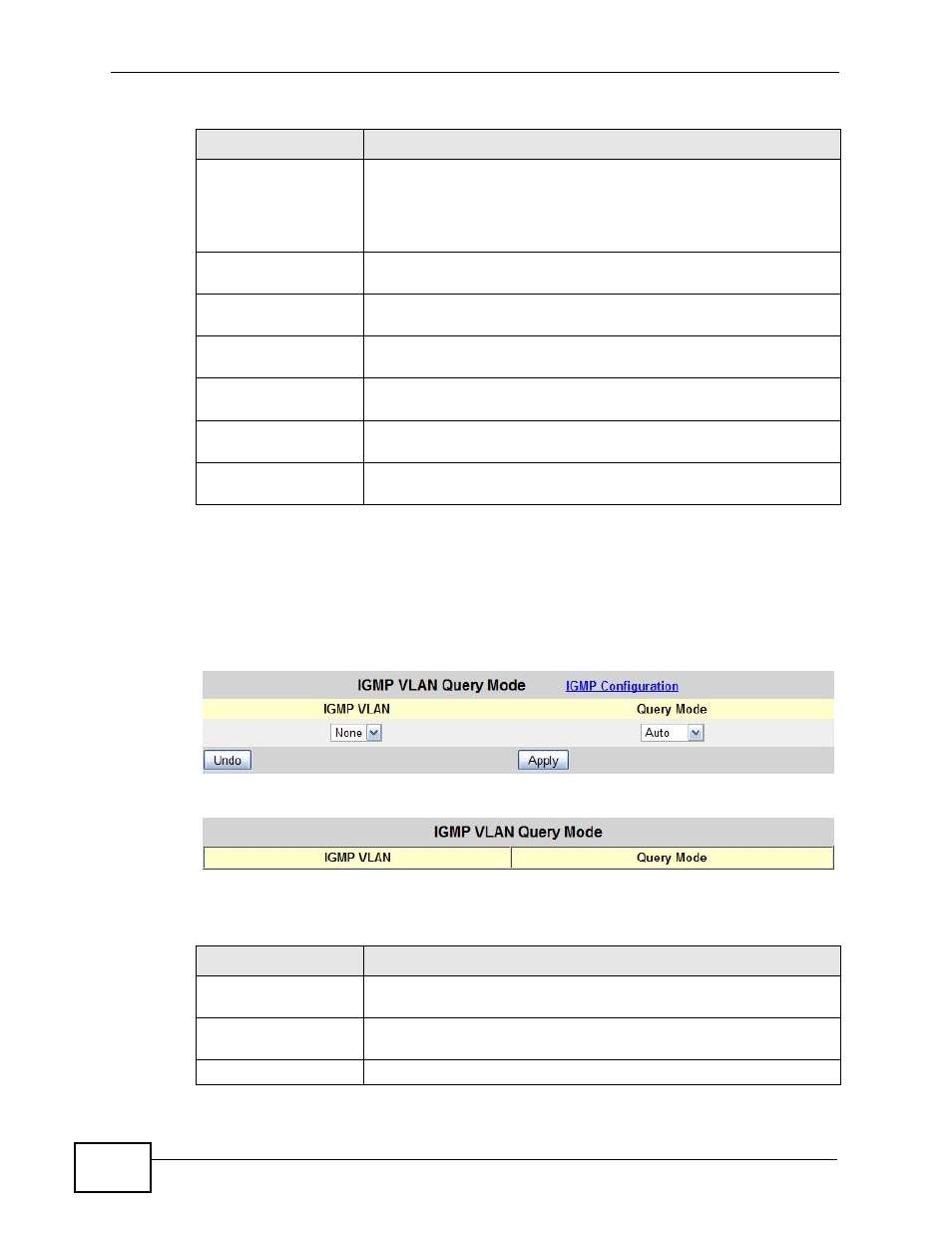

Figure 55 Configuration > IGMP Menu > IGMP VLAN Query Mode

The following table describes the labels in this screen.

Apply

Click Apply to save your changes to the MES-2110’s run-time
memory. The MES-2110 loses these changes if it is turned off or
loses power, so use the Save Settings link in the navigation
panel to save your changes to the non-volatile memory when you
are done configuring.

IGMP Snooping

This indicates whether IGMP snooping is enabled or disabled for
this port.

IGMP VLAN Mode

This indicates whether the IGMP VLAN Mode is set to Auto or
Fixed for this port.

IGMP Query Mode

This indicates whether the IGMP Query Mode is set to Auto or
Disable for this port.

IGMP VLAN

This indicates the static VLAN ID the MES-2110 uses to learn
multicast group membership.

Immediate Leave

This indicates whether Immediate Leave is enabled or disabled
for this port.

Static Query

This indicates whether Static Query is enabled or disabled for
this port.

Table 46 Configuration > IGMP Menu > IGMP Config

LABEL

DESCRIPTION

Table 47 Configuration > IGMP Menu > IGMP VLAN Query Mode

LABEL

DESCRIPTION

IGMP VLAN

Select an IGMP VLAN (previously configured in

Section 17.2 on

page 124

) from the list.

Query Mode

Select either Auto or Disable as the Query Mode for the specified
IGMP VLAN.

Undo

Click this to restore your last saved settings.
