Chapter 2 Hardware Installation and Connection
MES-2110 User’s Guide
26
5
Attach the rubber feet to each corner on the bottom of the MES-2110. These
rubber feet help protect the MES-2110 from shock or vibration and ensure space
between devices when stacking.

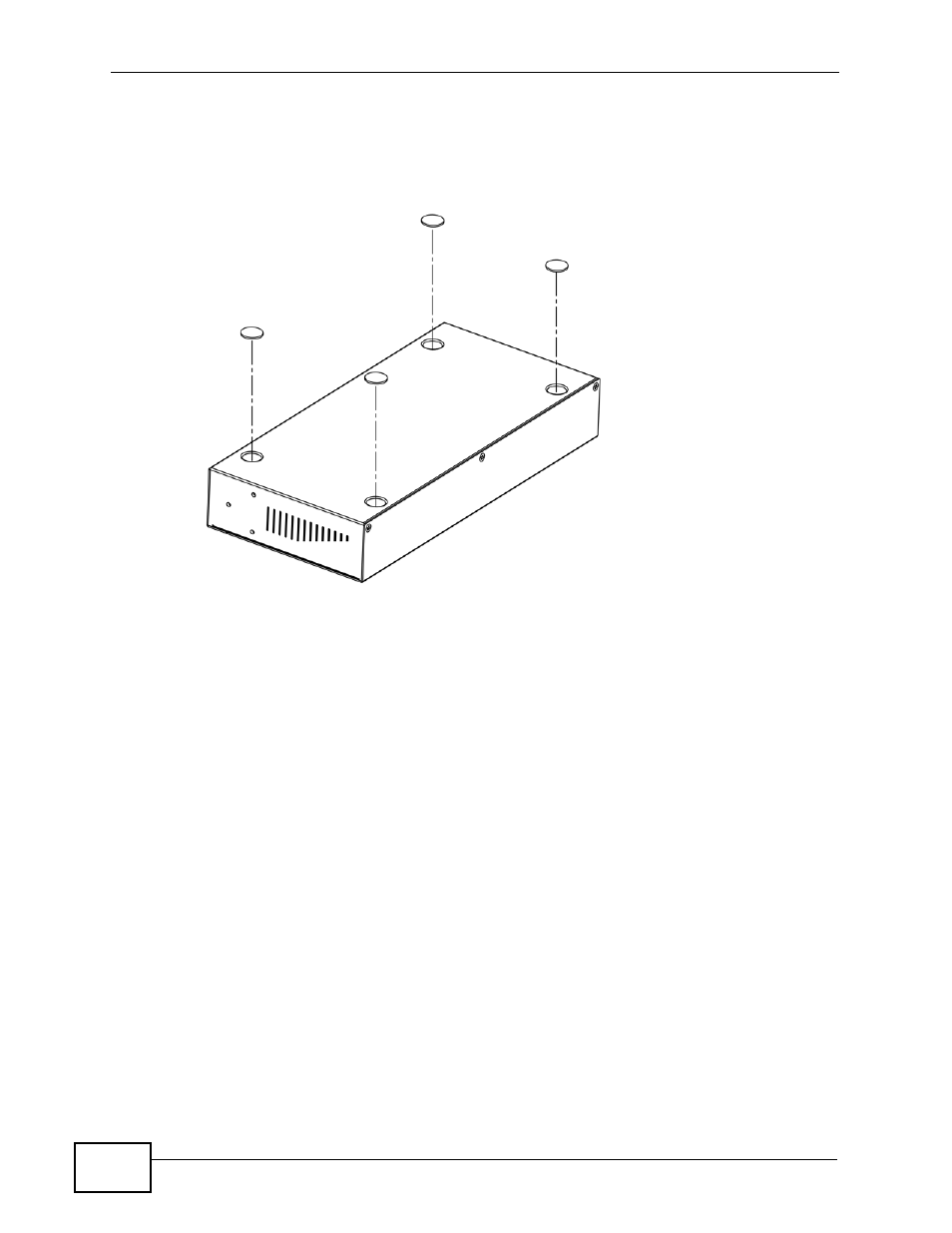

Figure 6 Attaching Rubber Feet
Note: Do NOT block the ventilation holes. Leave space between devices when
stacking.
2.3 Mounting the MES-2110 on a Rack
The MES-2110 can be mounted on an EIA standard size, 19-inch rack or in a
wiring closet with other equipment. Follow the steps below to mount your MES-
2110 on a standard EIA rack using a rack-mounting kit.
Note: The following sections feature the AC model of the MES-2110 but are equally
applicable to the DC model.
2.3.1 Rack-mounted Installation Requirements
• Two mounting brackets.
• Eight M3 flat head screws and a #2 Philips screwdriver.
• Four M5 flat head screws and a #2 Philips screwdriver.
Failure to use the proper screws may damage the unit.
