Chapter 7 Configuration

MES-2110 User’s Guide

67

7.3 The Port Status Screen

To view the port statistics, click Configuration > Port Status to display the
Status screen as shown next.

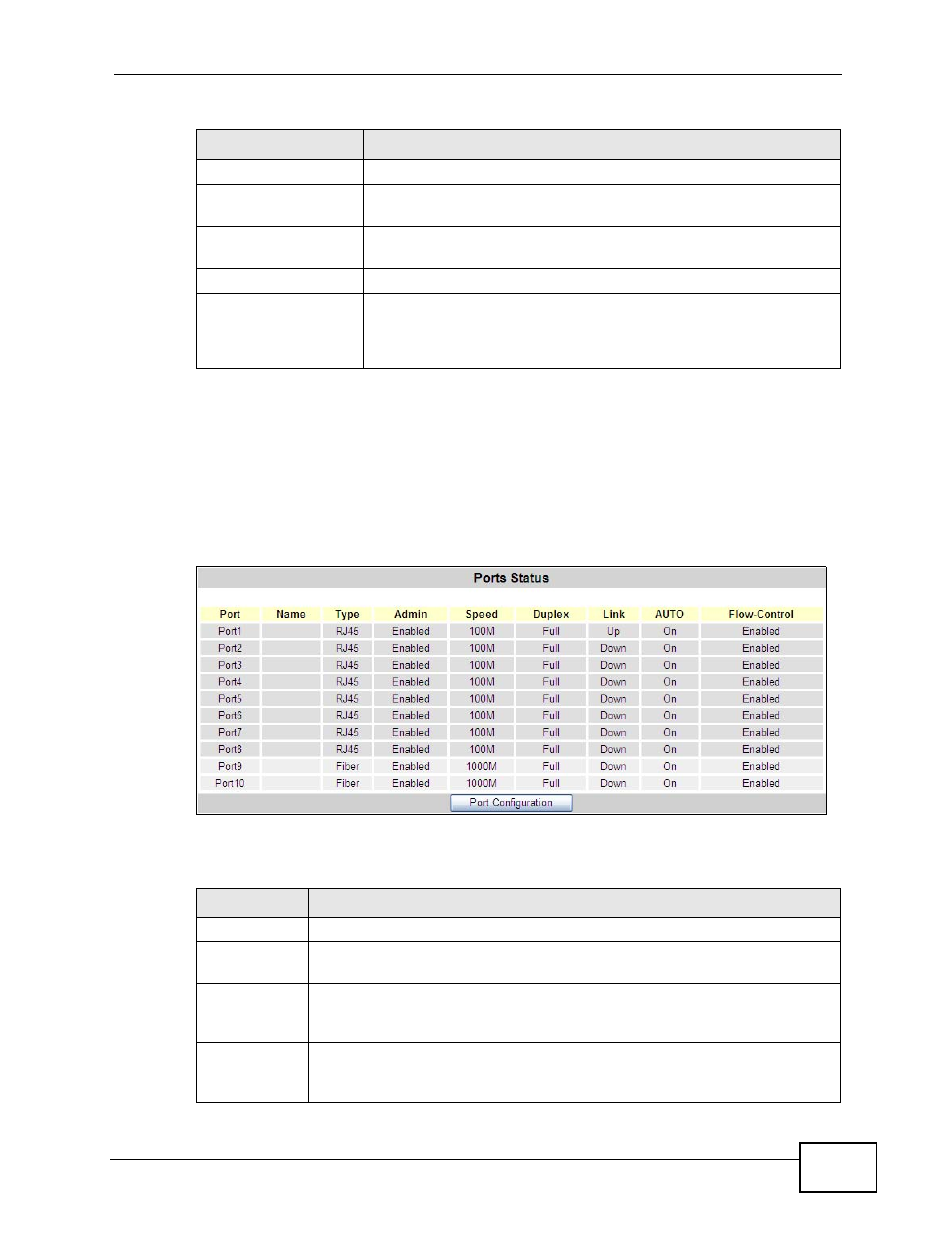

Figure 25 Configuration > Port Status

The following table describes the labels in this screen.

Duplex

This indicates the port’s duplex mode (Half or Full).

AUTO

This indicates whether auto-negotiation for this port is enabled or
disabled.

Flow-Control

This indicates whether flow control for this port is enabled or
disabled.

Undo

Click this to restore your last saved settings.

Apply

Click Apply to save your changes to the ZyXEL Device’s run-time
memory. The ZyXEL Device loses these changes if it is turned off
or loses power, so use the Save Settings link in the navigation
panel to save your changes to the non-volatile memory.

Table 10 Configuration > Port Configuration

LABEL

DESCRIPTION

Table 11 Configuration > Port Status

LABEL

DESCRIPTION

Port

This identifies the Ethernet port.

Name

This is the name you assigned to this port in the Configuration > Port
Configuration
screen.

Type

This is the type of connector for each port. Port 1-8 are RJ-45 ports for
Ethernet connections. Port 9-10 are Gigabit SFP ports for fiber
connections.

Admin

This shows whether administrative access is Enabled or Disabled on the
port. When administrative access is disabled on the port, users cannot
manage the MES-2110 via that port.
