Chapter 2 Hardware Installation and Connection
MES-2110 User’s Guide
27
2.3.1.1 Precautions
• Make sure the rack will safely support the combined weight of all the equipment
it contains.
• Make sure the position of the MES-2110 does not make the rack unstable or
top-heavy. Take all necessary precautions to anchor the rack securely before
installing the unit.
2.3.2 Attaching the Mounting Brackets to the MES-2110
1
Position a mounting bracket on one side of the MES-2110, lining up the four screw
holes on the bracket with the screw holes on the side of the MES-2110.

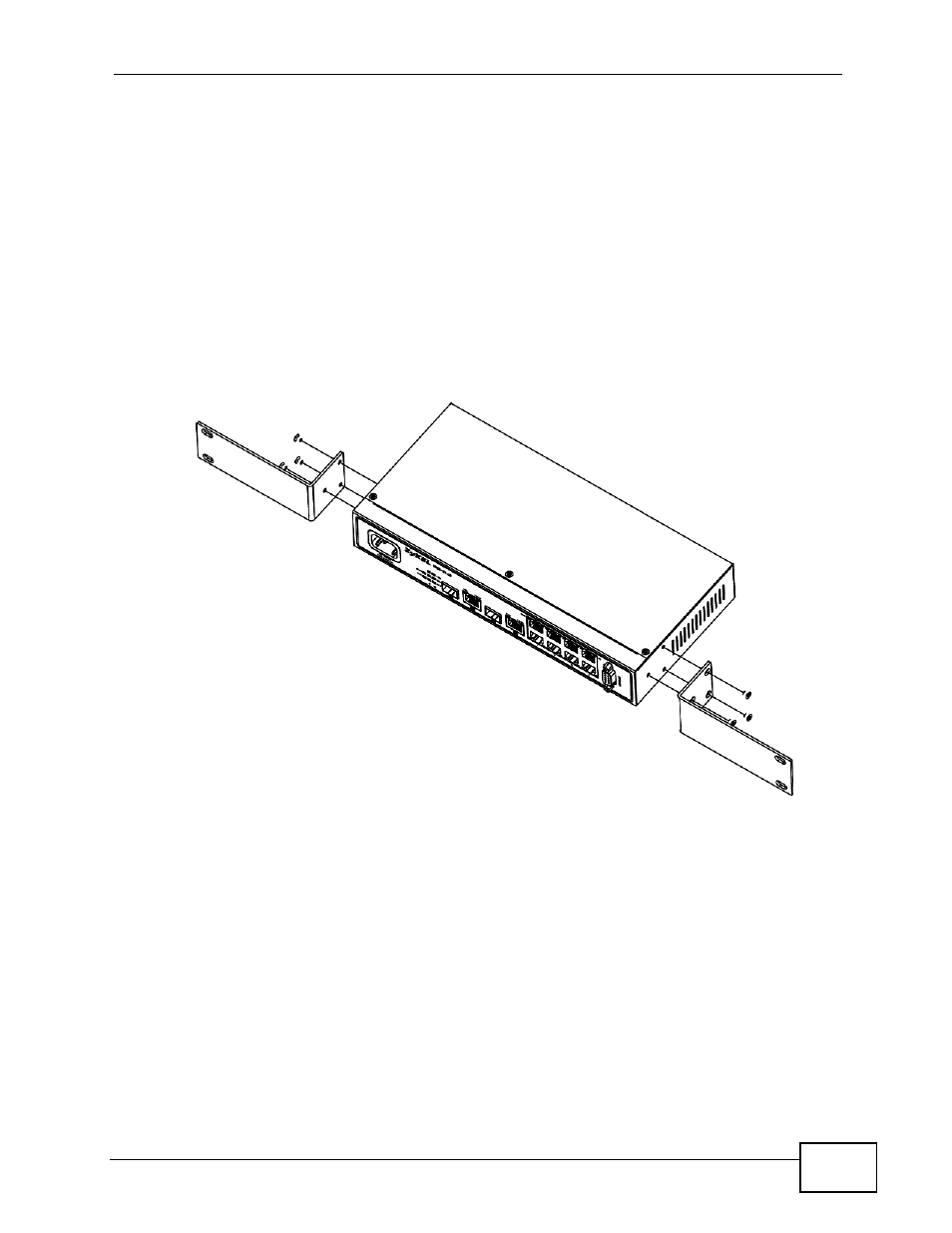

Figure 7 Attaching the Mounting Brackets
2
Using a #2 Philips screwdriver, install the M3 flat head screws through the
mounting bracket holes into the MES-2110.
3
Repeat steps 1 and 2 to install the second mounting bracket on the other side of
the MES-2110.
4
You may now mount the MES-2110 on a rack. Proceed to the next section.
