Chapter 22 Mgmt Config and System Restart Menu
MES-2110 User’s Guide
173

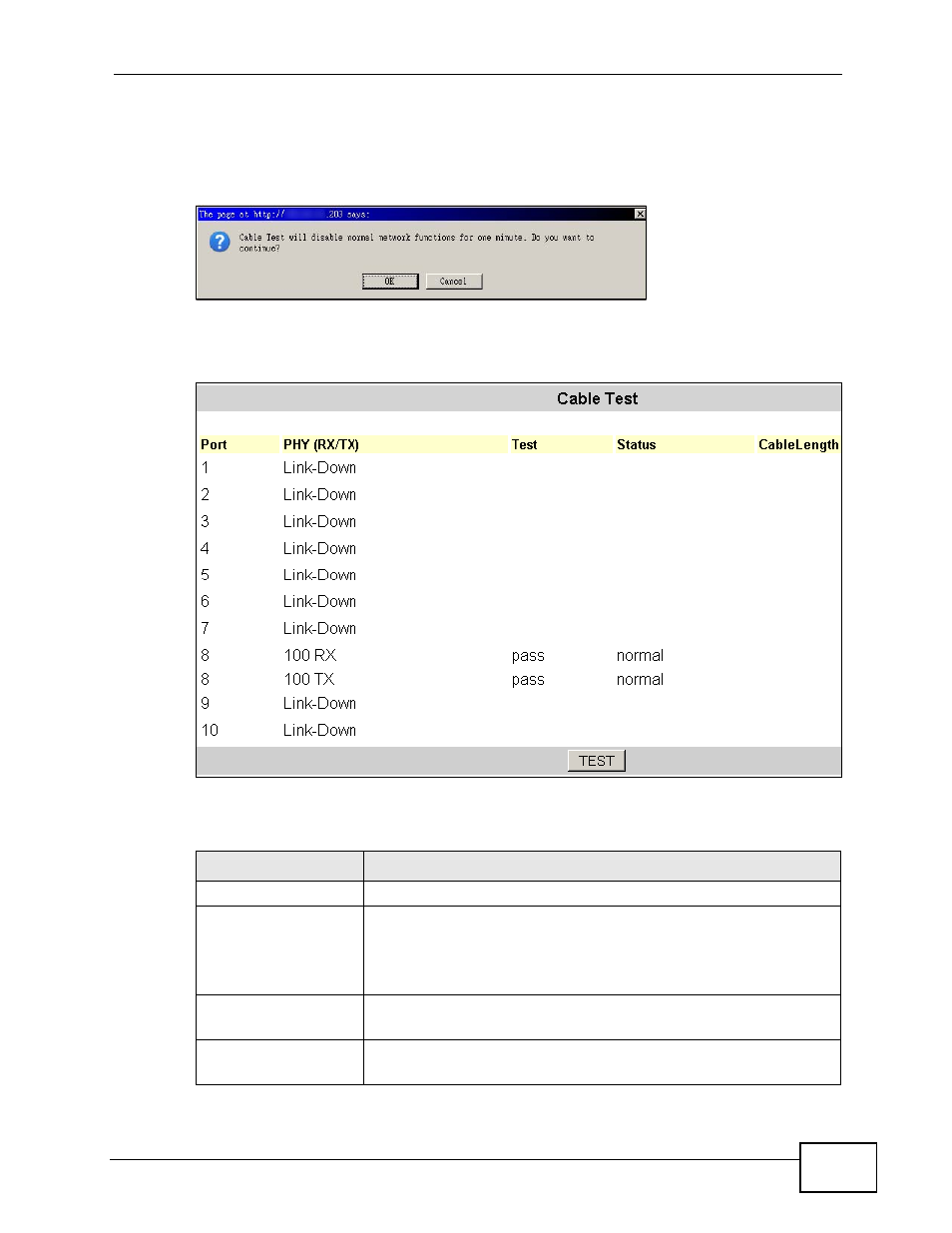

22.7 The Cable Test Screen
Use this feature to diagnose the connection on each port. Click Mgmt Config >
Cable Test to open a dialogue box asking for your confirmation.
Click OK to start the test. The test results are shown as follows.
Figure 87 Mgmt Config > Host Denial-of-Service Protection
The following table describes the labels in this screen.
Table 71 Mgmt Config > Host Denial-of-Service Protection
LABEL DESCRIPTION
Port This is the port number.
PHY (RX/TX) This shows if data is flowing through the ports on the MES-2110.
If no data is passing through a port, this shows Link-Down.
Otherwise, the number indicates the maximum size of packets
during data transmission in the port.
Test If the cable is well connected to the port, this shows Pass.
Otherise, this shows Fail.
Status If the cable is well connected to the port, this is Normal. If
the connection is down, you see an Open status.
