Chapter 20 MAC

MES-2110 User’s Guide

153

20.3 The Lock MAC Address Learning Screen

Use this screen to configure the MAC address learning settings. Click
Configuration > MAC Menu > Lock Learning MAC to open the following
screen.

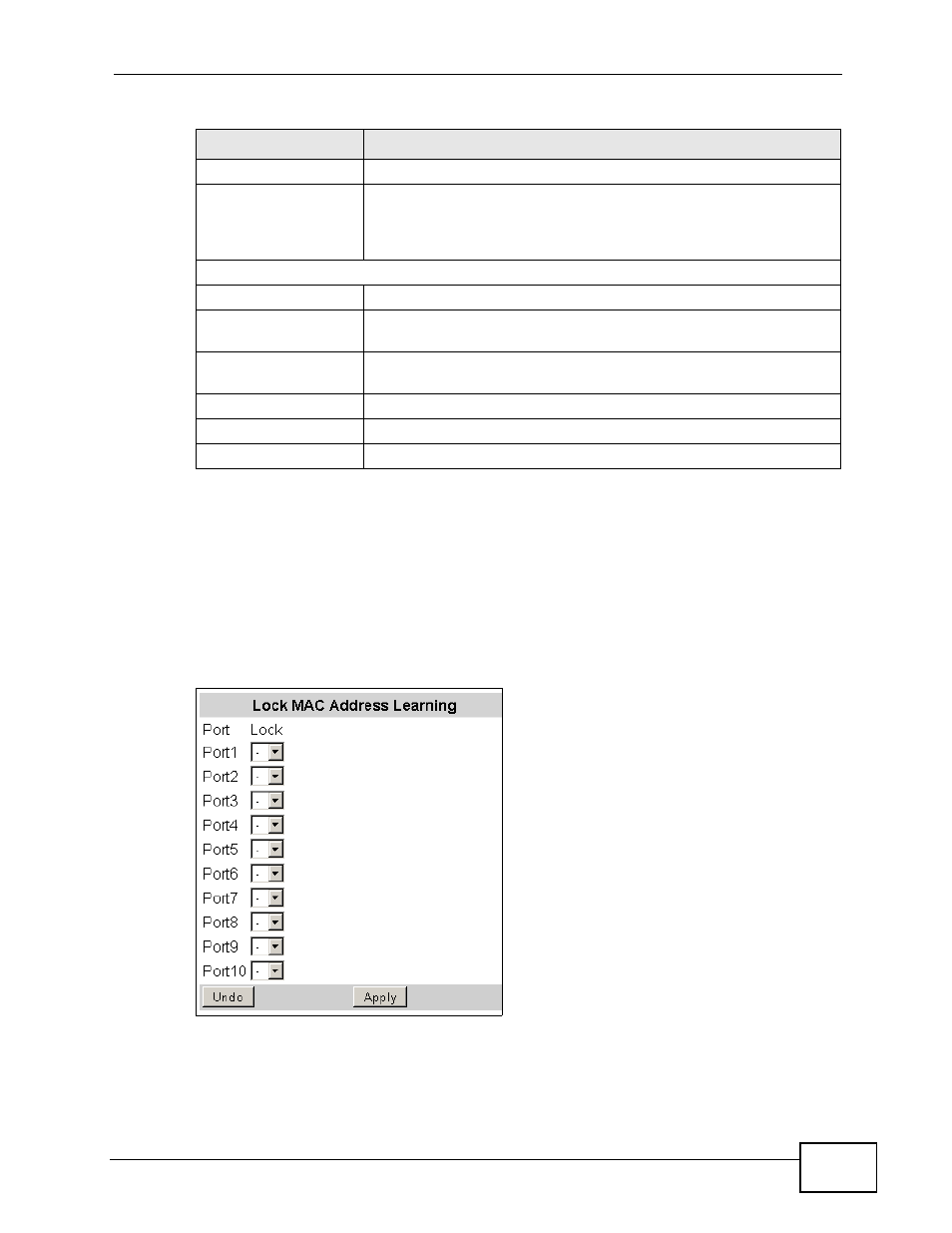

Figure 72 Configuration > MAC Menu > Lock Learning MAC

Undo

Click this to load your last saved settings.

Apply

Click Apply to save your changes to the ZyXEL Device’s run-time
memory. The ZyXEL Device loses these changes if it is turned off
or loses power, so use the Save Settings link in the navigation
panel to save your changes to the non-volatile memory.

MAC Table Status
No.

This is the incoming frame index number.

MAC Address

This is the MAC address of the device from which this incoming
frame came.

Static

This shows whether the MAC address is dynamic (learned by the
MES-2110) or static (manually configured).

Priority

This shows the priority level of the MAC address

1-10

This shows the port from which the MAC address was learned.

Page Up/Down

Click this to view the previous or next page.

Table 56 Configuration > MAC Menu > MAC Table Status

LABEL

DESCRIPTION
