Chapter 4 Tutorials

MES-2110 User’s Guide

42

To configure MVR:

1

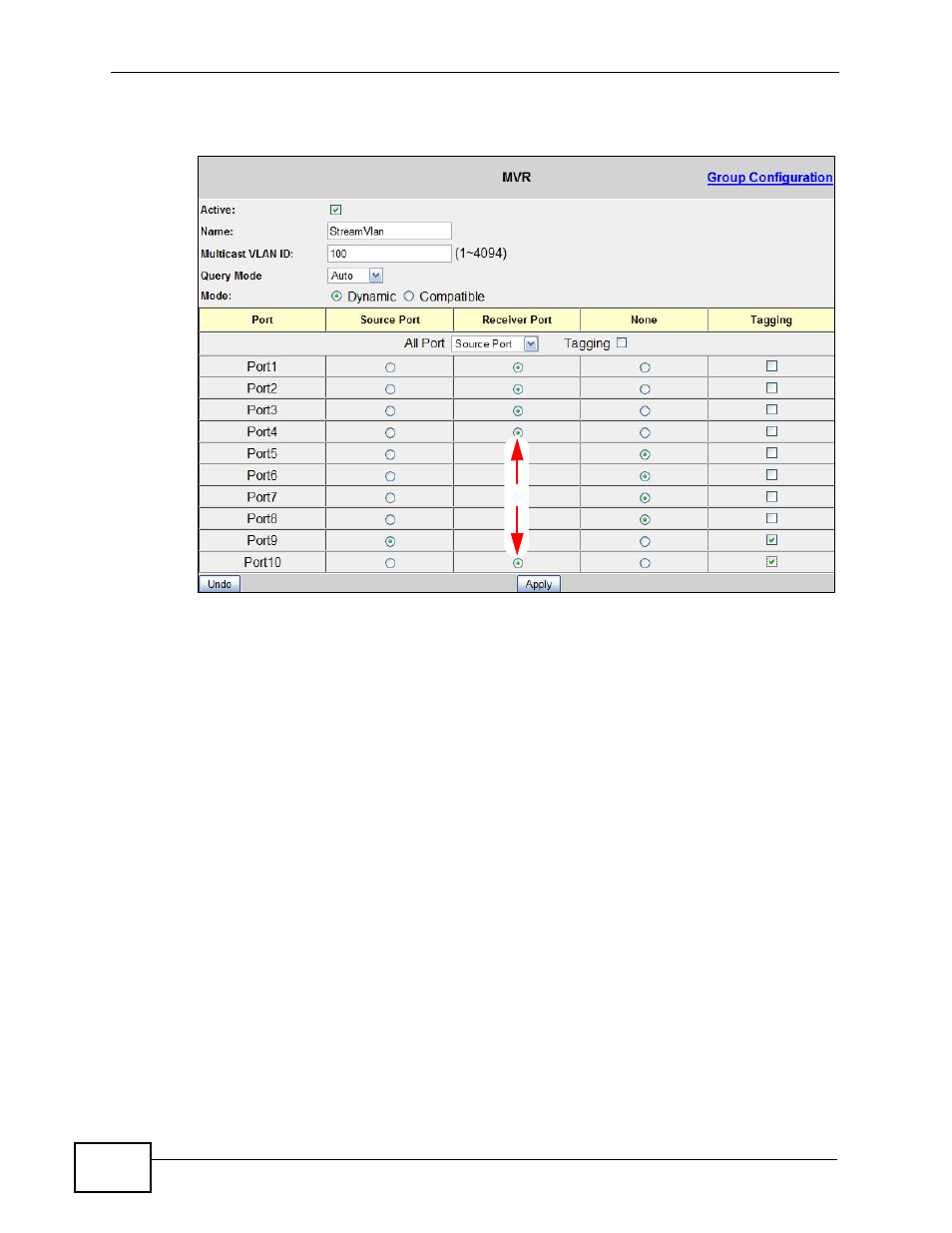

Open the Configuration > IGMP Menu > MVR screen.

2

Select Active to enable the MVR feature.

3

Enter StreamVlan as the MVR Name.

4

Enter 100 as the Multicast VLAN ID.

5

Set the MVR Mode to Dynamic.

6

In the Source Port column, deselect all ports except Port 9. This will be the
source port which receives all incoming multicasts from upstream.

7

In the Receiver Port column, select Ports 1-4 and Port 10. These ports are now
the designated downstream recipients for all incoming multicasts.

8

In the Tagging column, enable tagging for Port 9 and 10.

9

Click Apply to store these changes.

10

Click the Group Configuration link.
