Page 440
Page 440 of 466
Installing and cross-connecting a Power Fail Transfer Unit
NN43041-310
Standard 01.11
October 2008

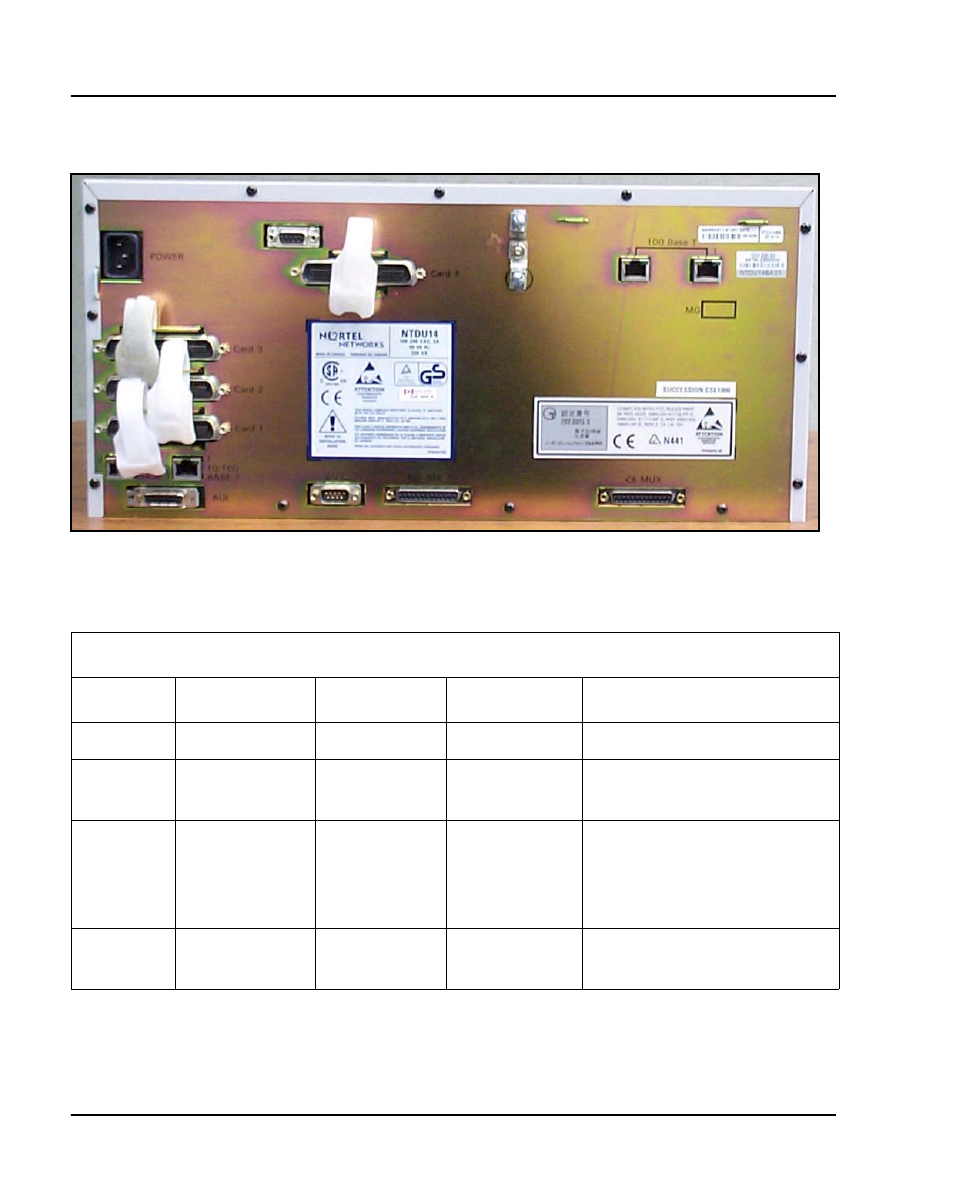

Figure 180
AUX cable connector on Media Gateway
Table 58
Control and power connections on cable J1 (Part 1 of 2)
J1 Cable from QUA6
Function
Pair Number
Pair Color
Connects to
Cross-connects to
Control
1T
W-BL
(ALM)
Not used
1R
BL-W
BRTN
W-BL 1-dot connection on
AUX cable
2T
W-O
PFTS
W-O 1-dot connection on
AUX cable. Transfer begins
by applying ground to this
lead.
2R
O-W
BRTN
BL-W 1-dot connection on
AUX cable.
