Configuring a terminal and SDI ports
Page 285 of 466
Communication Server 1000E
Installation and Commissioning
BayStack 470 SDI connection
The SDI port on the Bay Stack 470 can be used for basic configuration and
maintenance. The SDI port is located on the faceplate. It is a DCE port with
a default speed of 9600 bps.
Media Card SDI connection
The SDI ports on a Media Card can be used for basic configuration or
maintenance. Figure 123 shows the maintenance port location on the Media
Card and the Shielded 50-pin to Serial/ELAN/TLAN adapter.

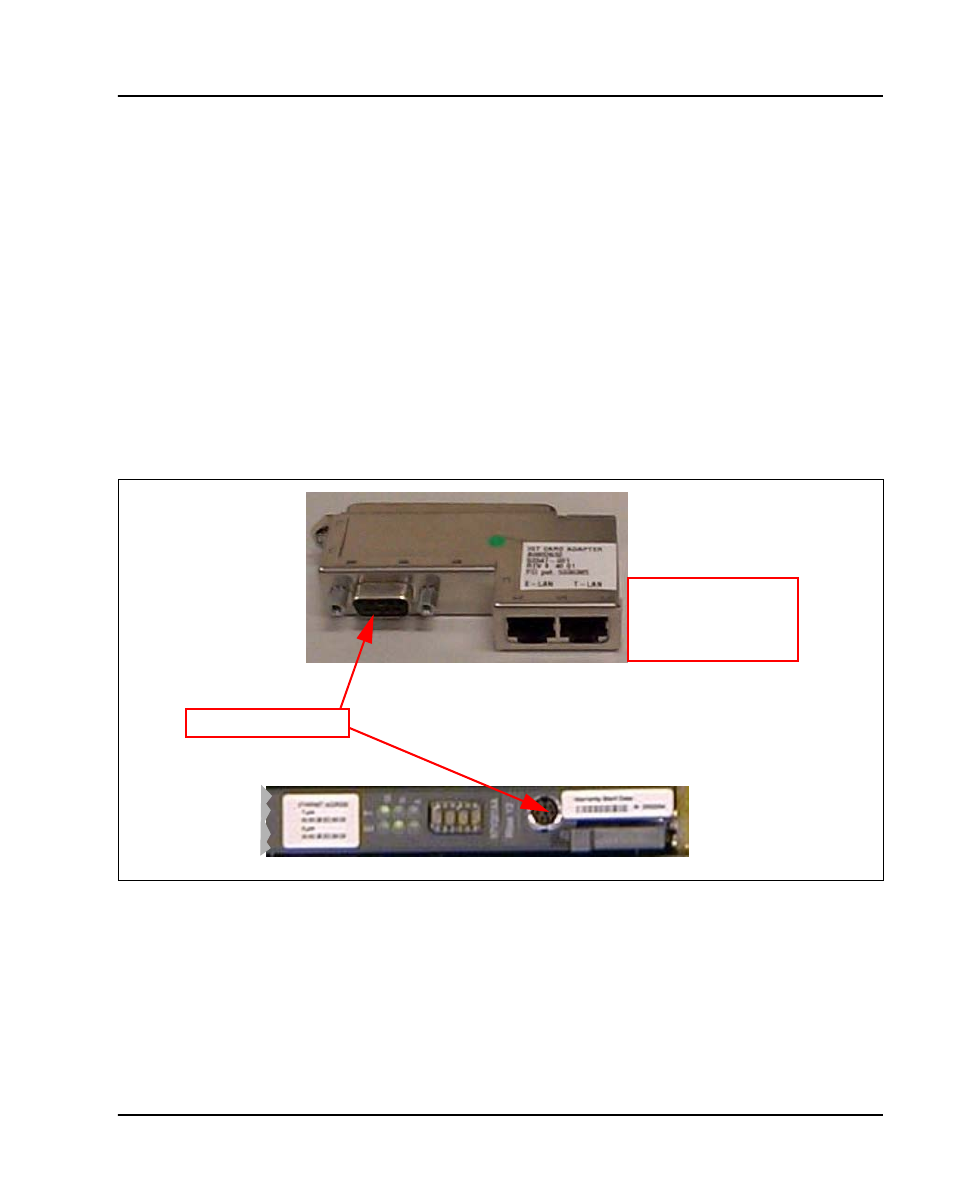

Figure 123
Maintenance port location on the Media Card and the
Shielded 50-pin to Serial/ELAN/TLAN adapter
The Media Card faceplate provides a female 8-pin mini-DIN serial
maintenance port connection. The maintenance port on the Shielded 50-pin
Maintenance port
Shielded 50-pin to
Serial/ELAN/TLAN
adapter
