Page 284 of 466 Configuring a terminal and SDI ports
NN43041-310 Standard 01.11 October 2008
Procedure 65
Connecting SDI ports on the Media Gateways
1 Connect the NTBK48 3-port SDI cable to the 9-pin SDI port (RS-232) at
the rear of the Media Gateways (see Figure 122).

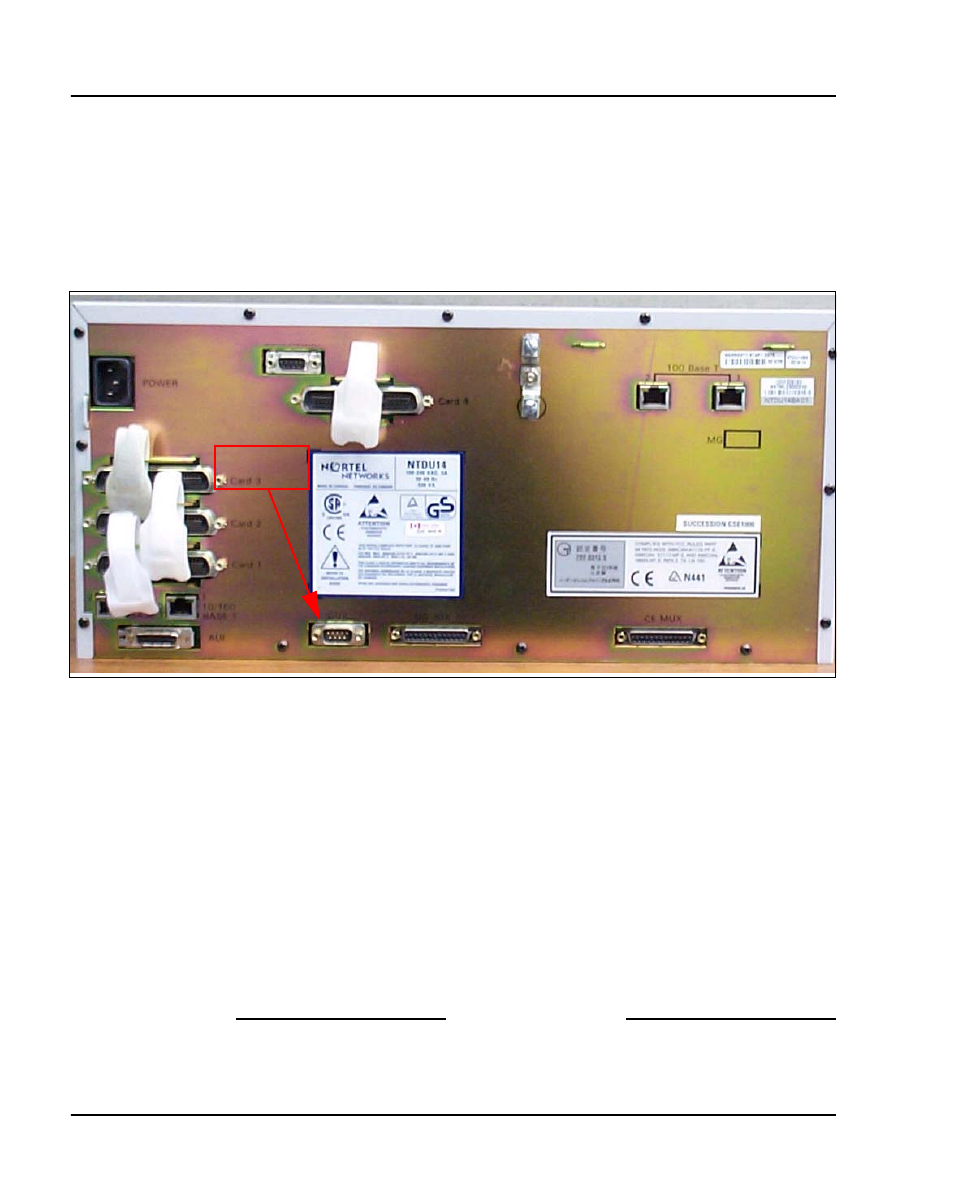

Figure 122
SDI port access to the Media Gateway SSC card
2 Connect the system terminal to the cable marked “port 0” on the NTBK48
3-port cable. You require a Modem Eliminator adapter to connect the
system to a TTY terminal. This adapter is included in the CS 1000E and
the Media Gateway cable kits.
3 If the system is accessed remotely, connect the system modem to the
cable marked “port 1” on the NTBK48 cable.
4 When instructed, connect the modem to an outside line.
5 When instructed, test the modem for correct operation when the system
is operating.
Note: You can use the remaining ports for other equipment, such as
CDR devices or TTYs.
End of Procedure
SDI
port
