900 mhz – Intermec 6710 User Manual
Page 62
SECTION 3
"
Installation
3-18
6710 Access Point User’s Guide
900 MHz
The 900 MHz radio option is a Type III PC card that can be
installed in either slot. To install the card, see Figure 3-13.

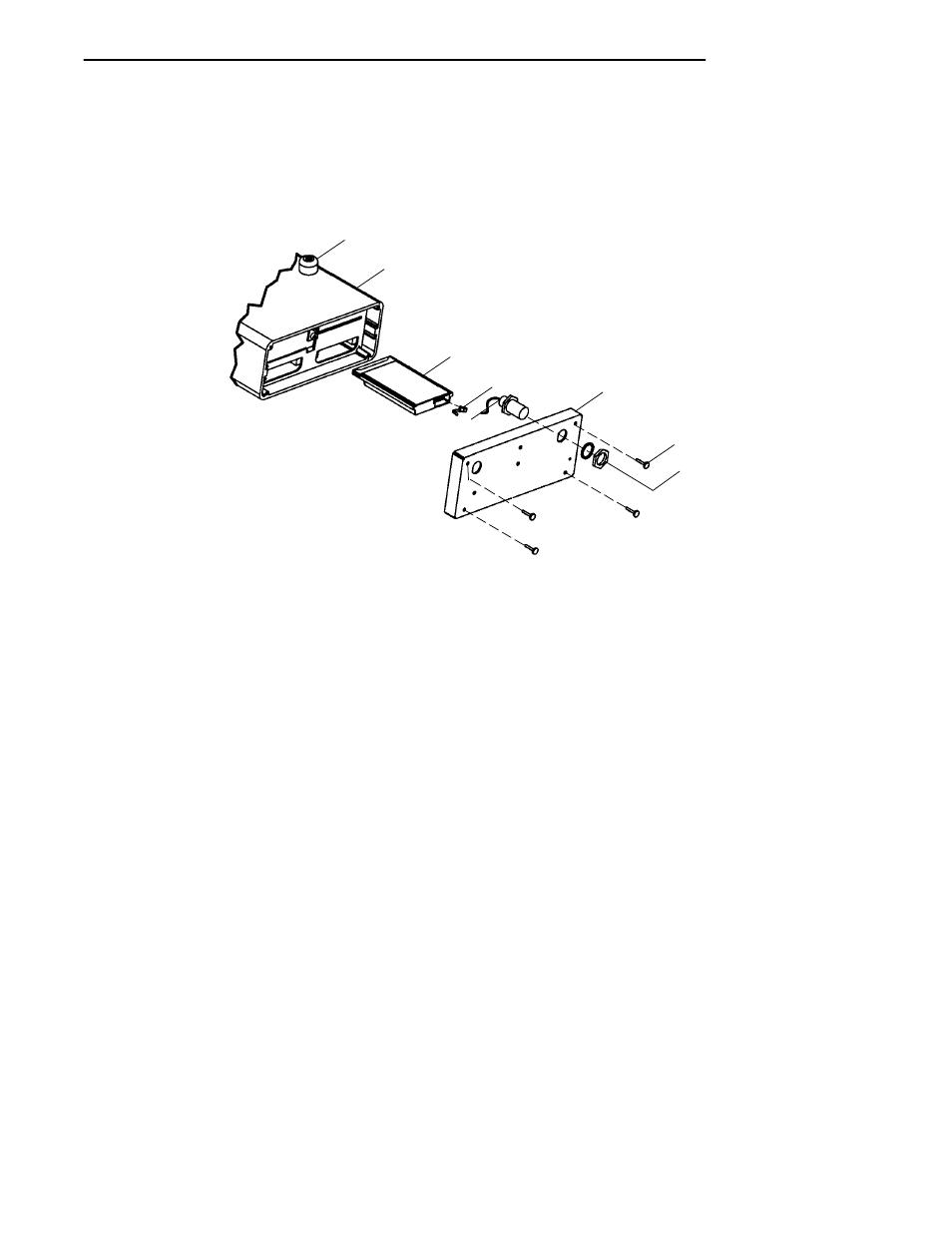

Figure 3-13
900 MHz PC Card Assembly
3
2
1
6
7
4
4
1. Nonskid rubber feet (4)
2 Access point (no radio)
3. PC card (RM160)
4. Antenna cable
5. End plate
6. 4--40 captive thumb screws
7. Hex nut and lock washer (supplied with antenna cable)
5
