APPENDIX D
"
S-UHF Specifications and Antennas
6710 Access Point User’s Guide D-7

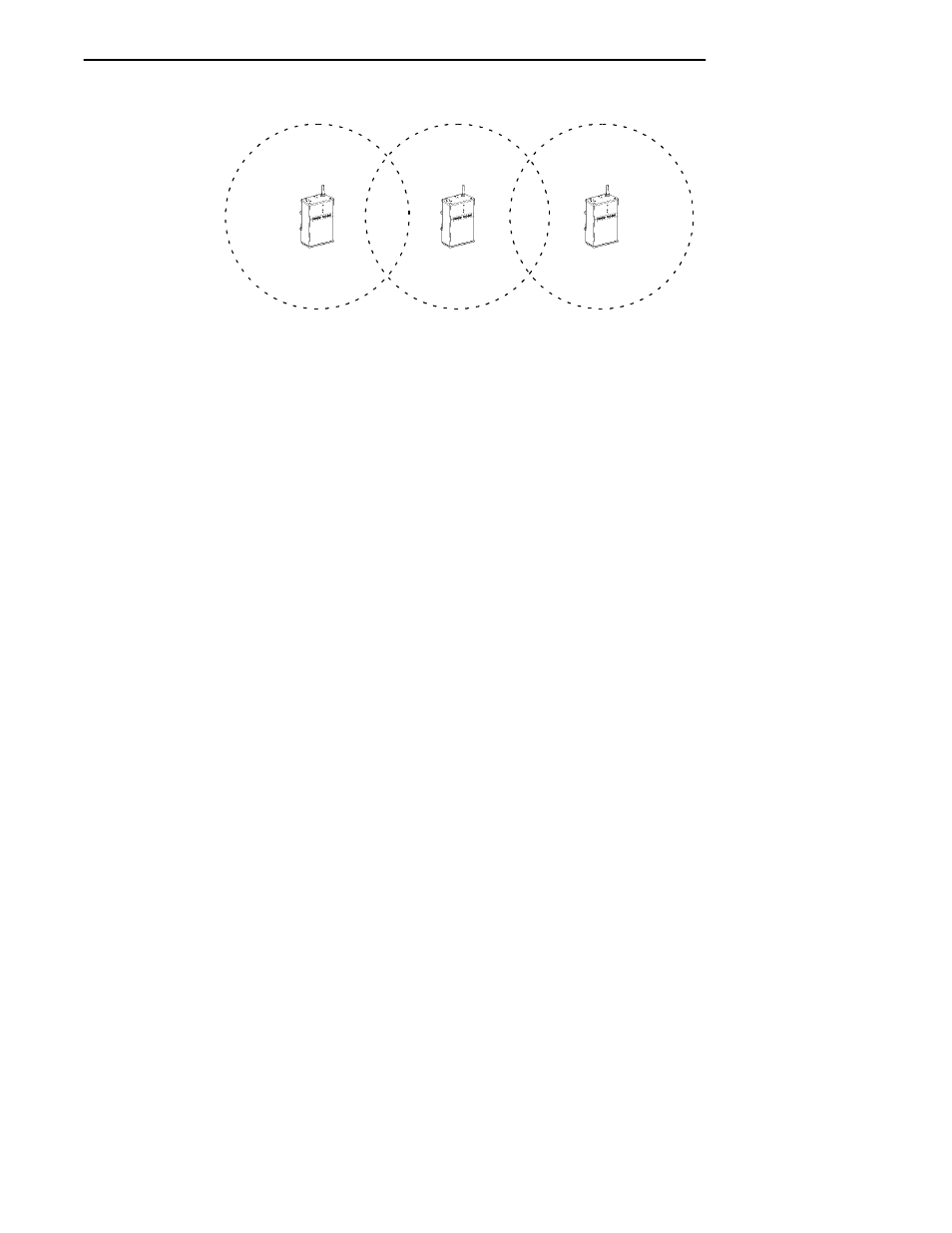

Figure D-1
Extending Coverage
In this type of installation, the access point coverage areas
are overlapped minimally to provide seamless coverage.
The access points may all use a common frequency,
requiring adherence to the system terminal population and
transaction rate limits for one frequency.
You can also install access points on different frequencies.
In this case, you may be able to increase the wireless
station population and transaction rate. However, the
single frequency wireless station population and
transaction rate must be maintained per access point. The
installation must consider whether the system may at any
time be required to operate with more than the maximum
number of wireless stations in any one access point
coverage area.
Reusing the Frequency
If access points are separated by sufficient distance, you
can reuse a frequency, as illustrated in Figure D-2.
