Chapter 47 802.1x Configuration
47-17

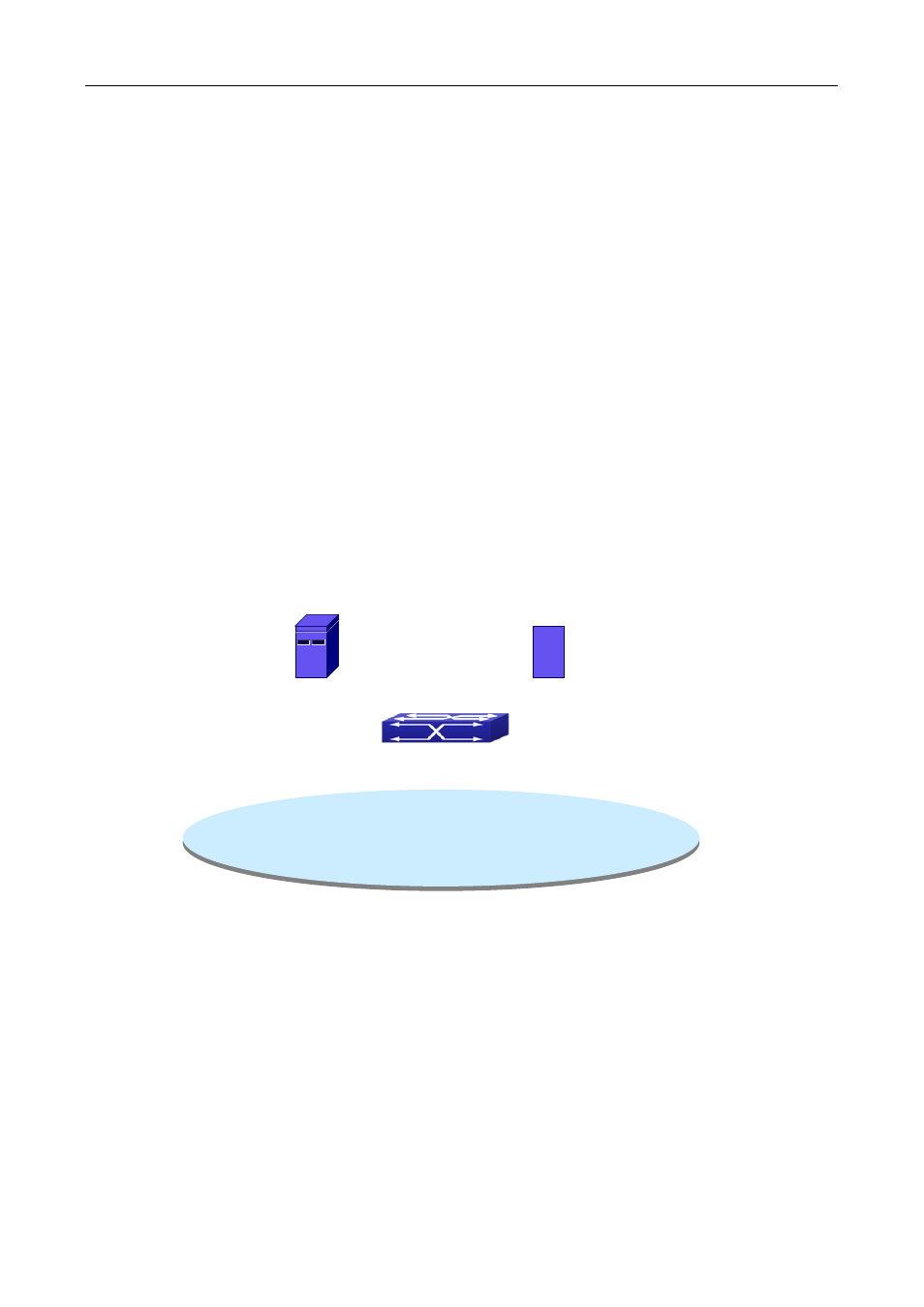

Figure 2-14 User Joining Guest VLAN
As illustrated in the up figure, on the switch port Ethernet1/2, the 802.1x feature is enabled, and the VLAN10
is set as the port’s Guest VLAN. Before the user gets authenticated or when the user fails to do so, port
Ethernet1/2 is added into VLAN10, allowing the user to access the Update Server.
Figure 2-15 User Being Online, VLAN Being Offline
As illustrated in the up figure, when the users become online after a successful authentication, the
authentication server will assign VLAN5, which makes the user and Ethernet1/6 both in VLAN5, allowing the
user to access the Internet.
Internet
SWITCH
E2
VLAN5
E3
VLAN10
VLAN2
Update server Authenticator server
E6
VLAN5
User
Internet
SWITCH
E2
VLAN10
E3
VLAN10 VLAN2
Update server Authenticator server
E6
VLAN5
User
