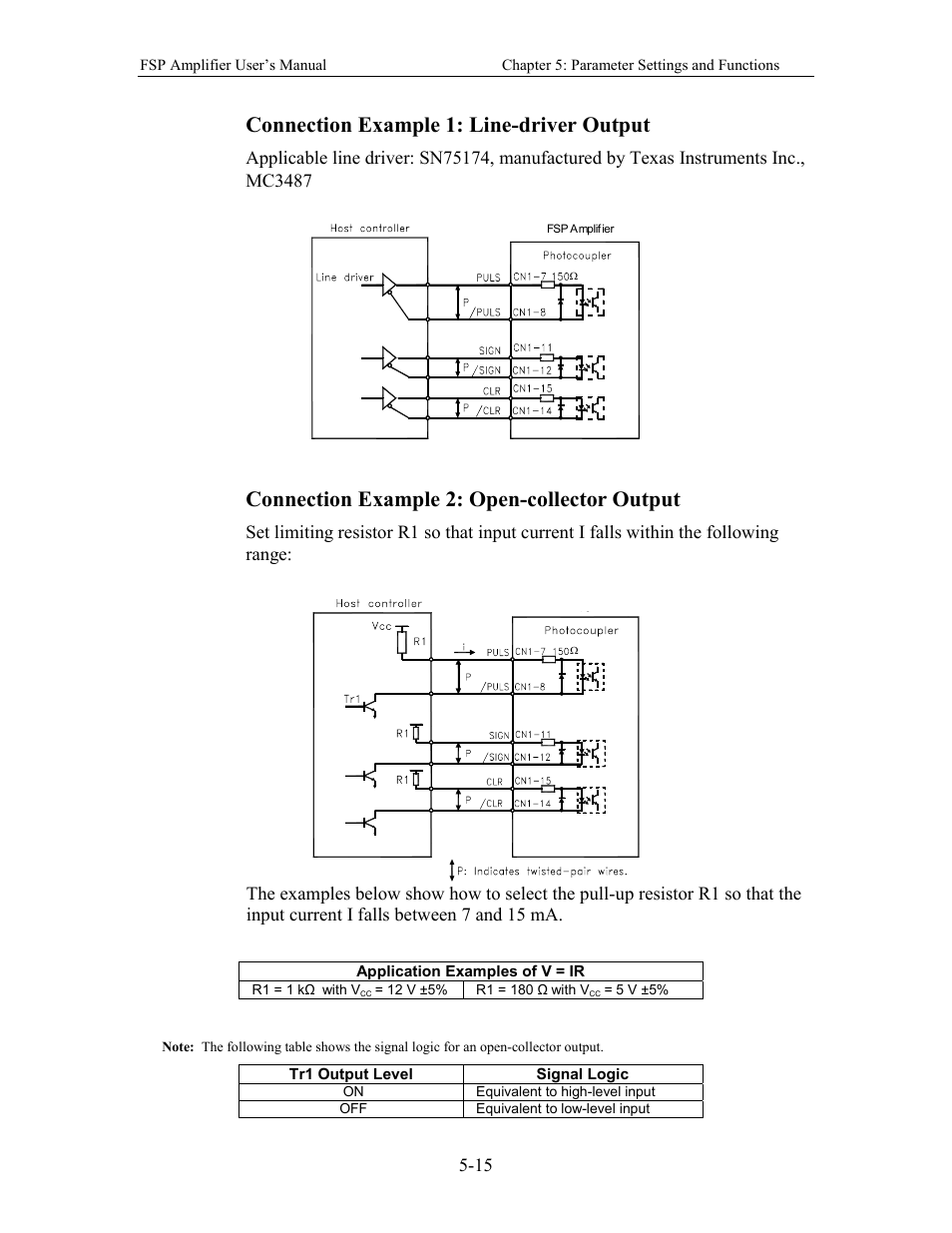

Connection example 1: line-driver output, Connection example 2: open-collector output – Yaskawa FSP Amplifier User Manual
Page 82
