Calibrating the DWDM Passive Component Test System
DWDM Passive Component Test System 79
Calibrating the System
To perform the wavelength response calibration:

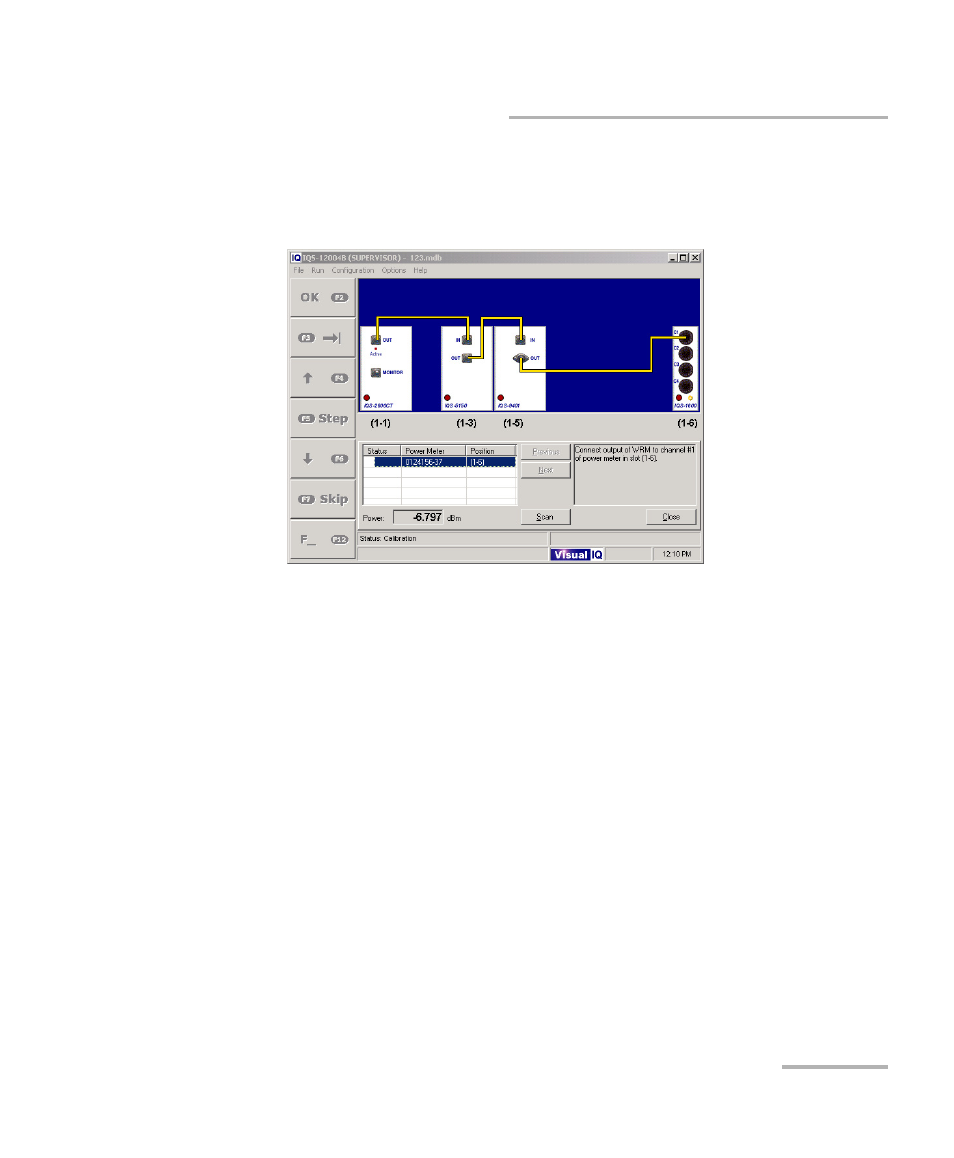

1. Connect the output port of the Wavelength Reference Module to
channel 1 of the power meter, as indicated on the screen.
³
Click Scan.
³
Connect the WRM to all remaining channels in the system, as
indicated on the screen.
When the wavelength response measurement has been
completed, a green check mark will appear in the Status column
field, indicating that the measurement has been successfully
completed for the current power meter.
2. Once the measurements have been completed for all power meters,
click Close to exit the window and proceed to the next step.
