Markers – EXFO IQS-12004B DWDM Passive Component Test System for IQS-500 User Manual
Page 110
Interpreting the DWDM Passive Component Test System Results
98
IQS-12004B
Viewing the Results Graph

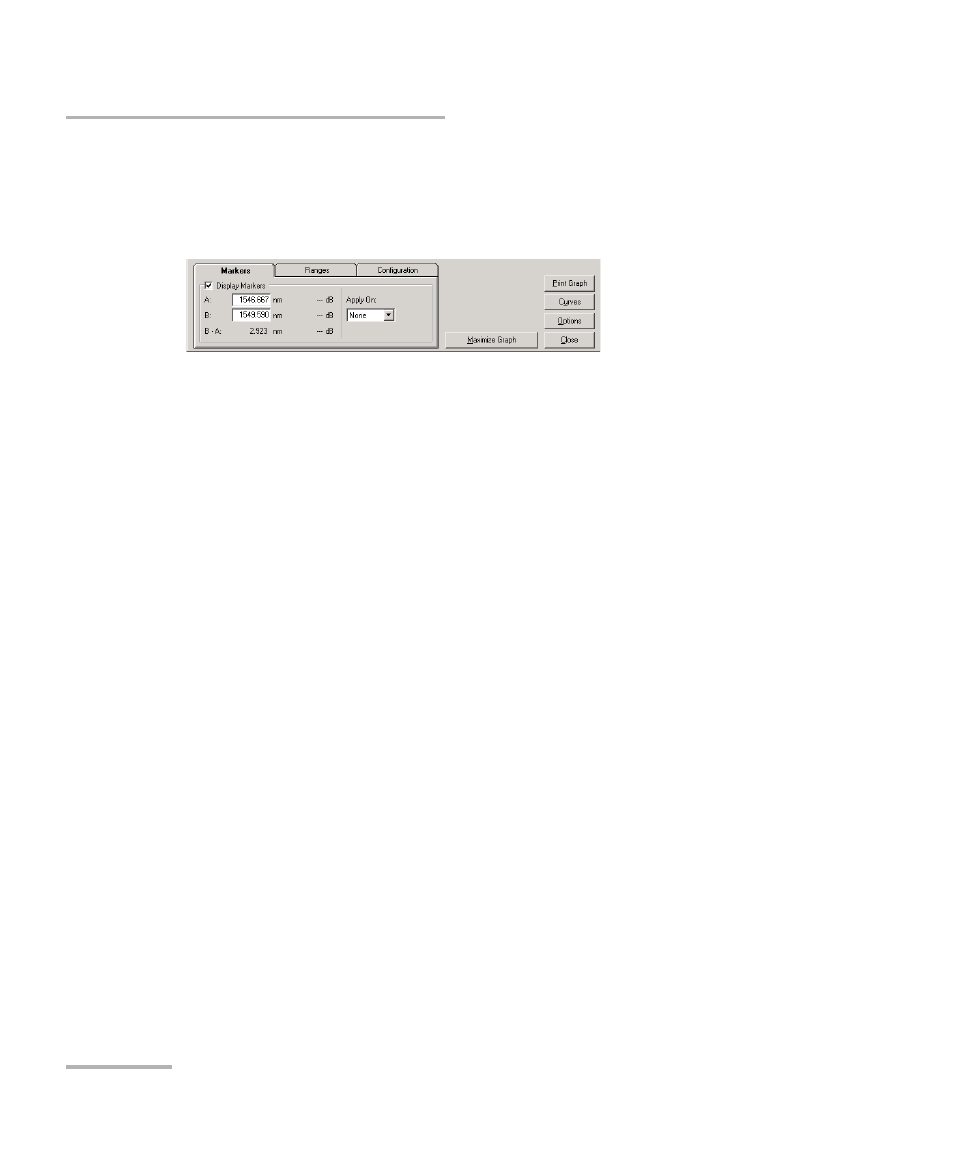

Markers
To perform a point-by-point analysis on a specific interval, select the
Markers tab.
To view markers on the graph:
1. Check Display Markers to show the A and B markers on the graph.
2. Select the channel for which the values will be displayed in the Apply
On list box.
3. Move the markers on the graph with your mouse, or enter precise
wavelength values in the A and B text boxes.
Loss values at marker positions and loss variation between the
markers are shown for the selected channel.
