Setting Up the DWDM Passive Component Test System
38 IQS-12004B

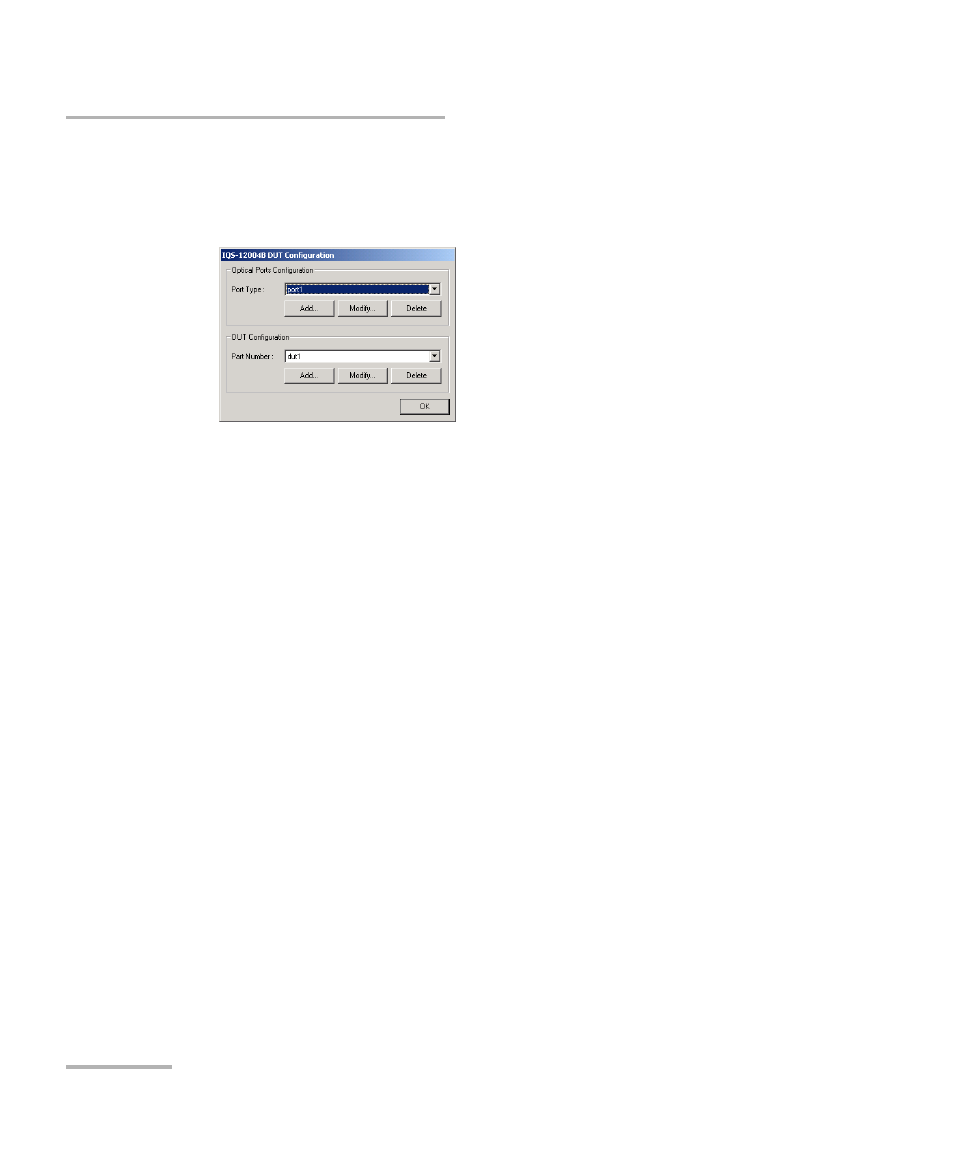

Configuring DUT Parameters for Pass/Fail Analysis
This window can be accessed via the Configure DUTs icon from the
Welcome/New Test window. For information on how to display this
window, see Opening a New Test Database on page 61.
³
Optical Ports Configuration: This section contains the list of all
configured ports. You can add new ports (click Add), modify the port
indicated in the Port Type list box (click Modify), or delete an existing
optical port (click Delete).
For information about the configuration of an optical port type, see
Configuring an Optical Port on page 39.
³
DUT Configuration: This section allows you to configure DUTs based
on the optical port types. You can add new DUTs (click Add), modify
the DUT indicated in the Part Number list box (click Modify), or delete
an existing DUT (click Delete).
For information about the configuration of a DUT, see Configuring a
DUT on page 42.
