Testing Multiple DUTs with the LabVIEW Application
DWDM Passive Component Test System
125
Calibrating the System Wavelength Response
Calibrating the System Wavelength Response
This feature allows you to correct variations in the response and sensitivity
of the different power meters. If you need more information on wavelength
response calibration, see Wavelength Response Calibration on page 78.
To calibrate the system wavelength response, select Wavelength
Response Calibration from the System menu of the main window.
The dialog box can be divided into three main parts:
³
A monitoring zone that allows you to verify the power read on the
power meter, in dBm.
³
A connection information section that indicates between which switch
port and which power meter channel the fiber should be connected.
³
A section that displays useful instructions about wavelength response
calibration.

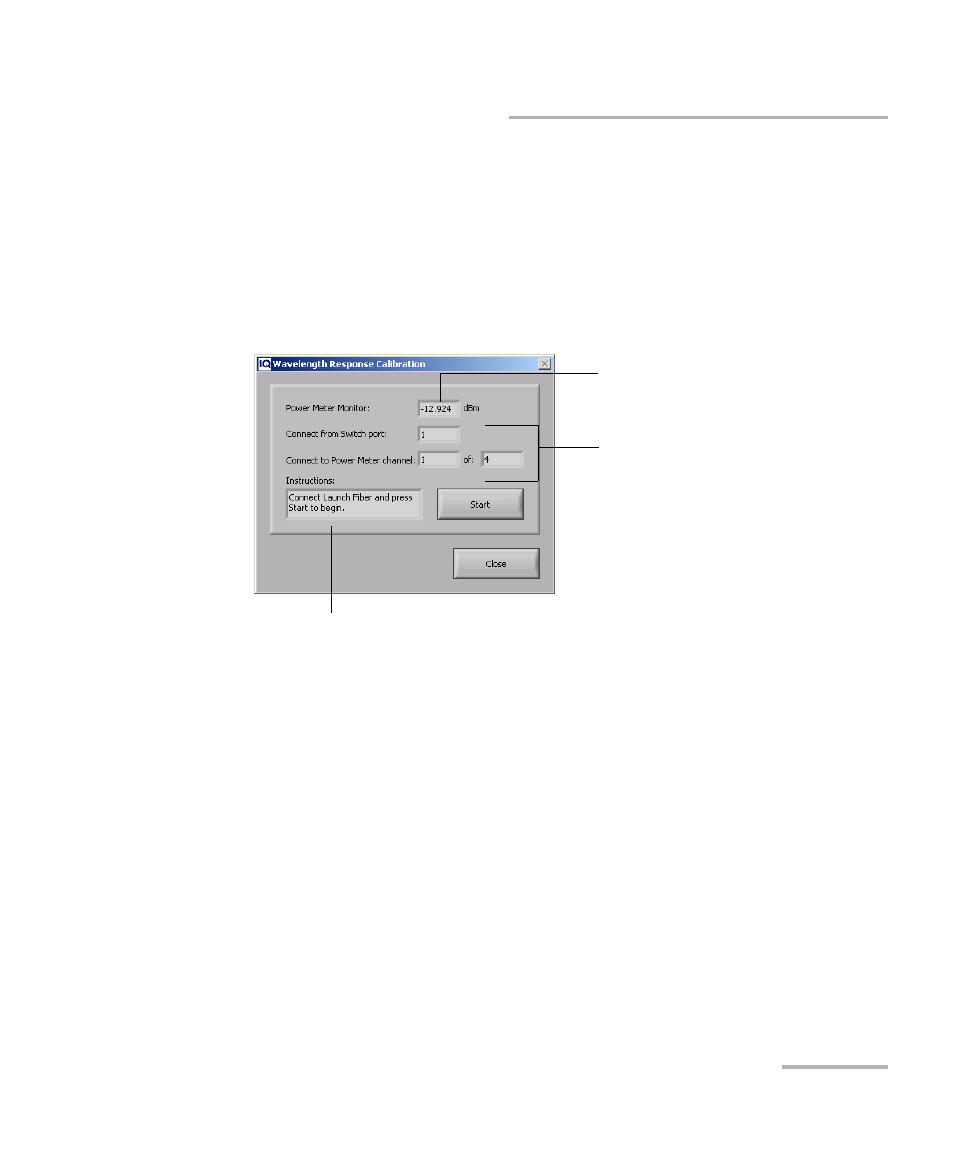

Power meter monitoring
zone
Connection information
Calibration
instructions
