5-8
Ultra-High-Speed Flash
Microcontroller User’s Guide
SYSCLK
ALE
PSEN
PORT 2
PORT 0 LSB LSB LSB
RET
LSB LSB 22 00
NOP
MSB ADDRESS MSB ADDRESS

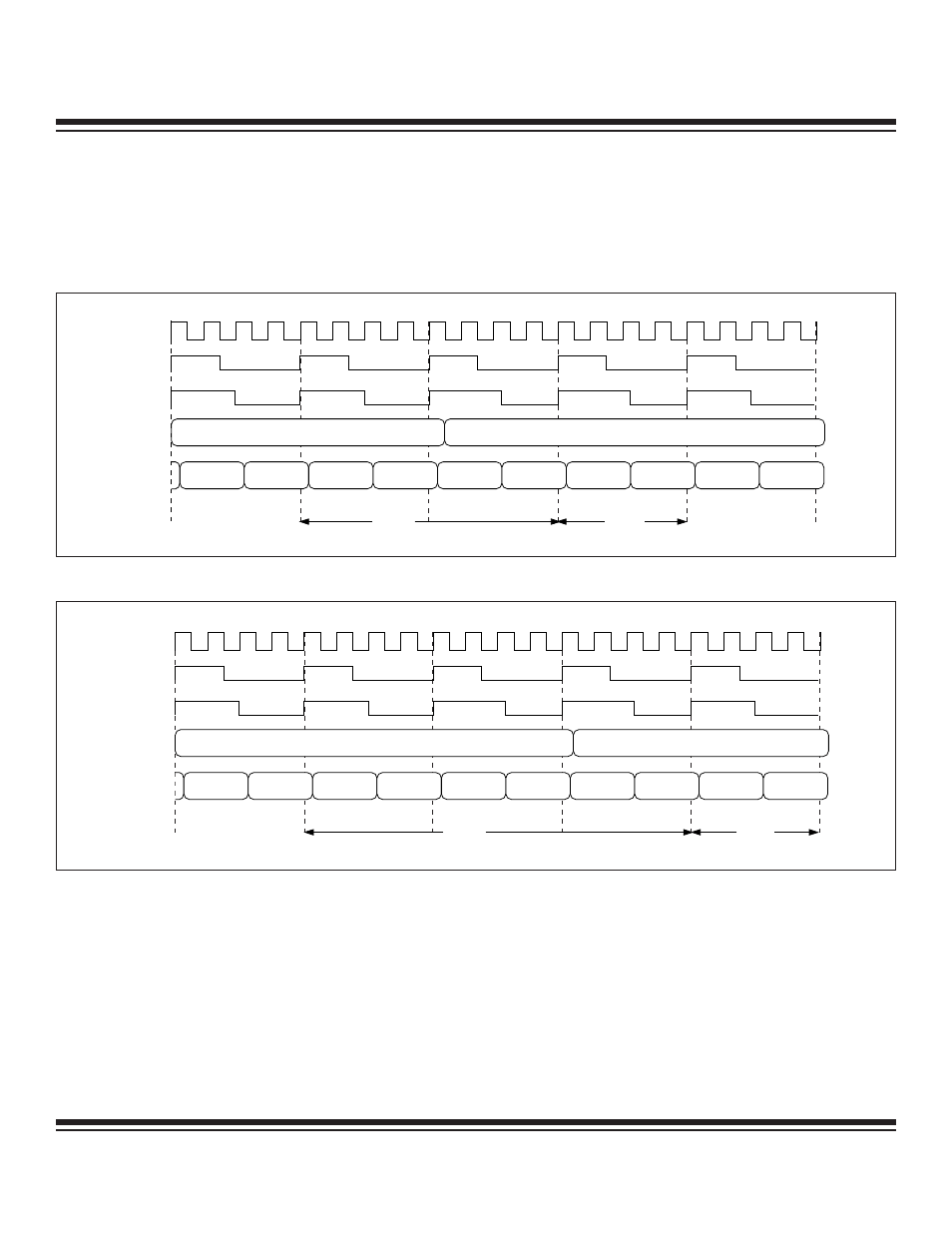

Figure 5-8. Nonpage Mode: RET – NOP
SYSCLK
ALE
PSEN
PORT 2
PORT 0
MSB ADDRESS
LSB LSB 71 LSB
ACALL NOP
LSB 33 00
MSB ADDRESS
Figure 5-7. Nonpage Mode: ACALL – NOP
Figure 5-7 illustrates an ACALL instruction (2 bytes, two cycles) with a destination address residing on a different 256-byte page. This
is indicated only by the MSB address change on port 2. The memory cycle duration remains constant.
Figure 5-8 shows execution of the RET instruction (1 byte, three cycles). Because the cycle count of the RET instruction exceeds the
byte count, two stall cycles (“dummy” fetches) are inserted to allow execution to complete. In this example, the return address and the
RET instruction are on different 256-byte pages (signified by the MSB address change on port 2).
